Electronic/Powertrain Control Module (ECM/PCM)

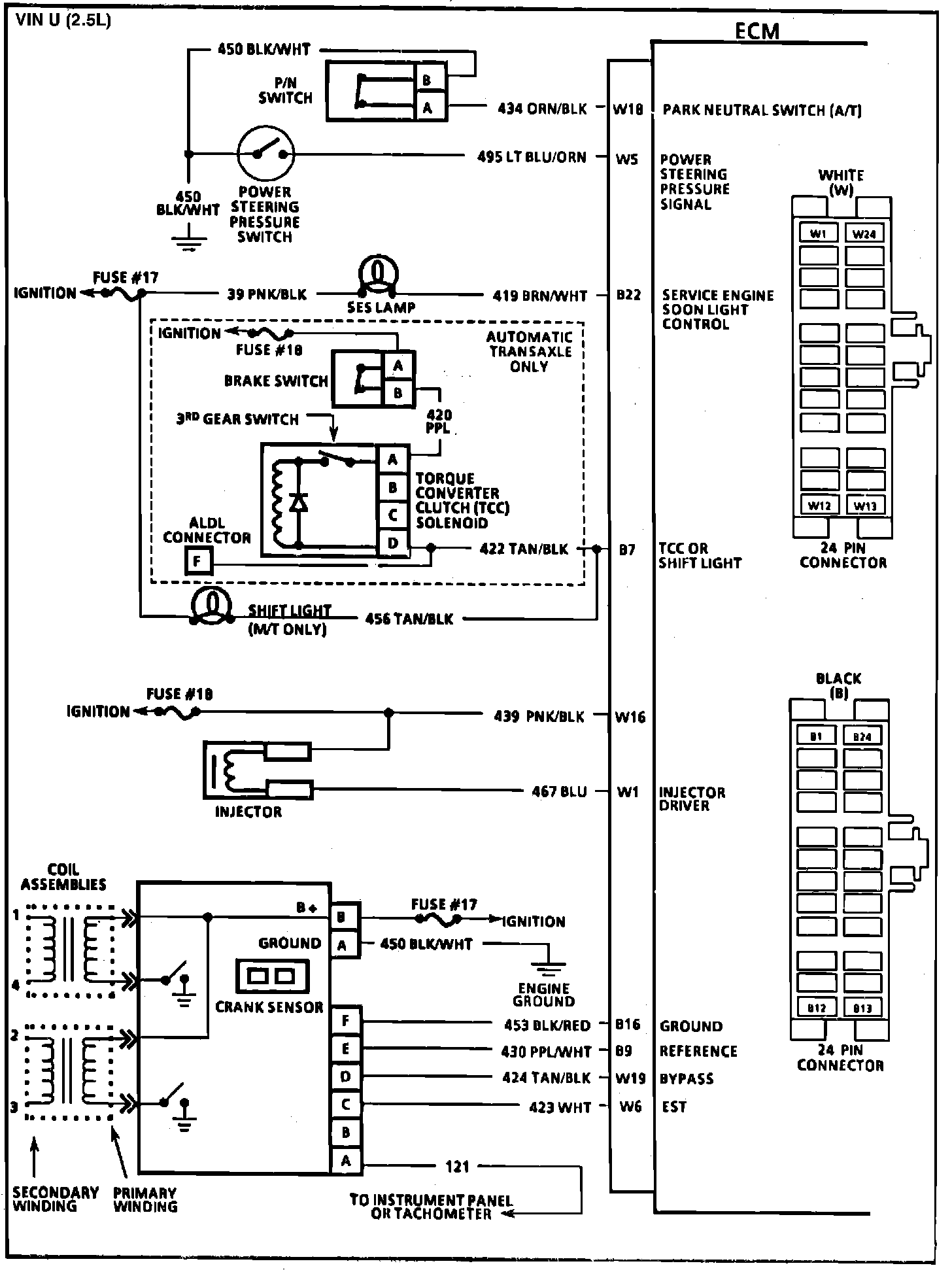

Fig. 085 ECM Wiring Diagrams (1 of 3):

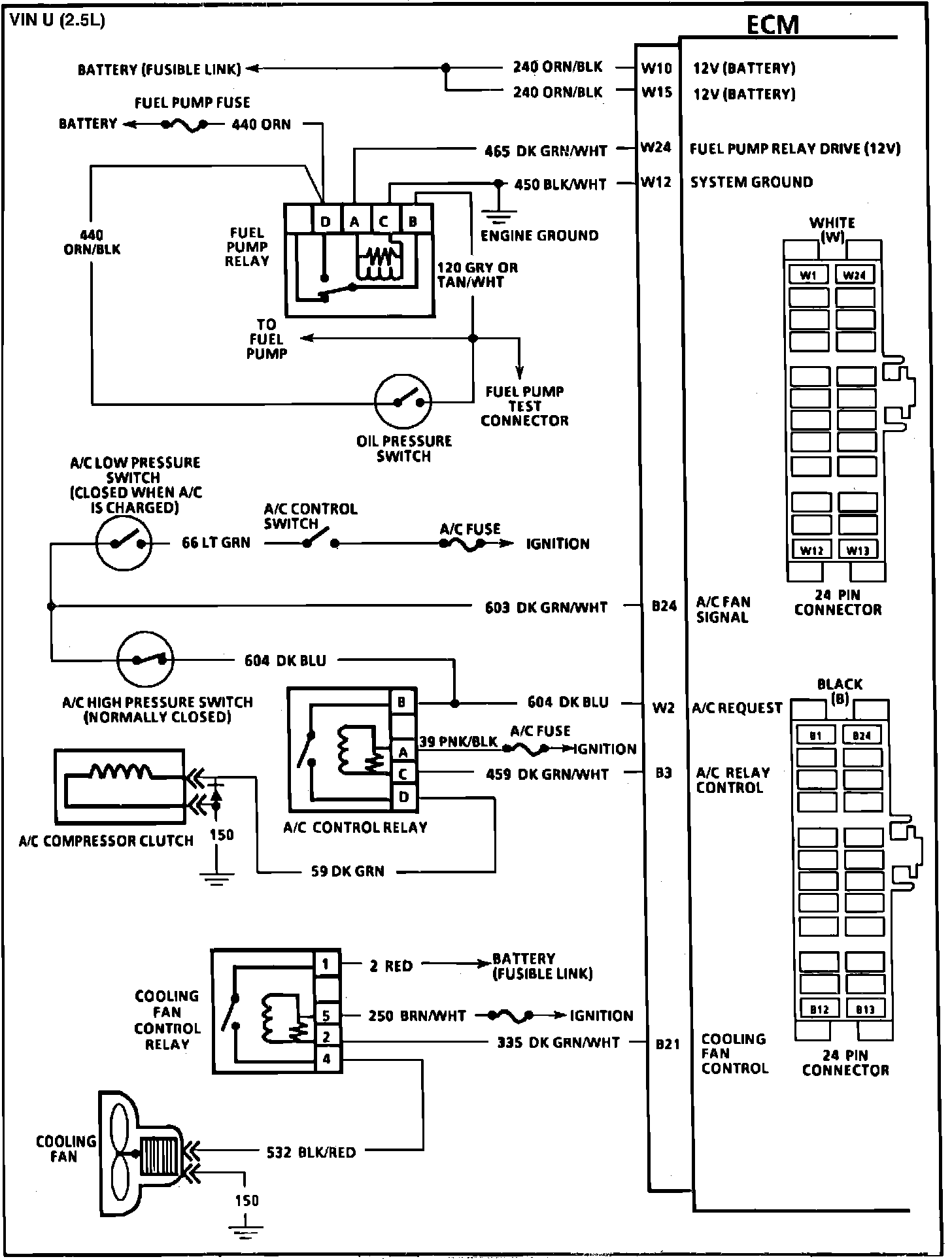

Fig. 086 ECM Wiring Diagrams (2 of 3):

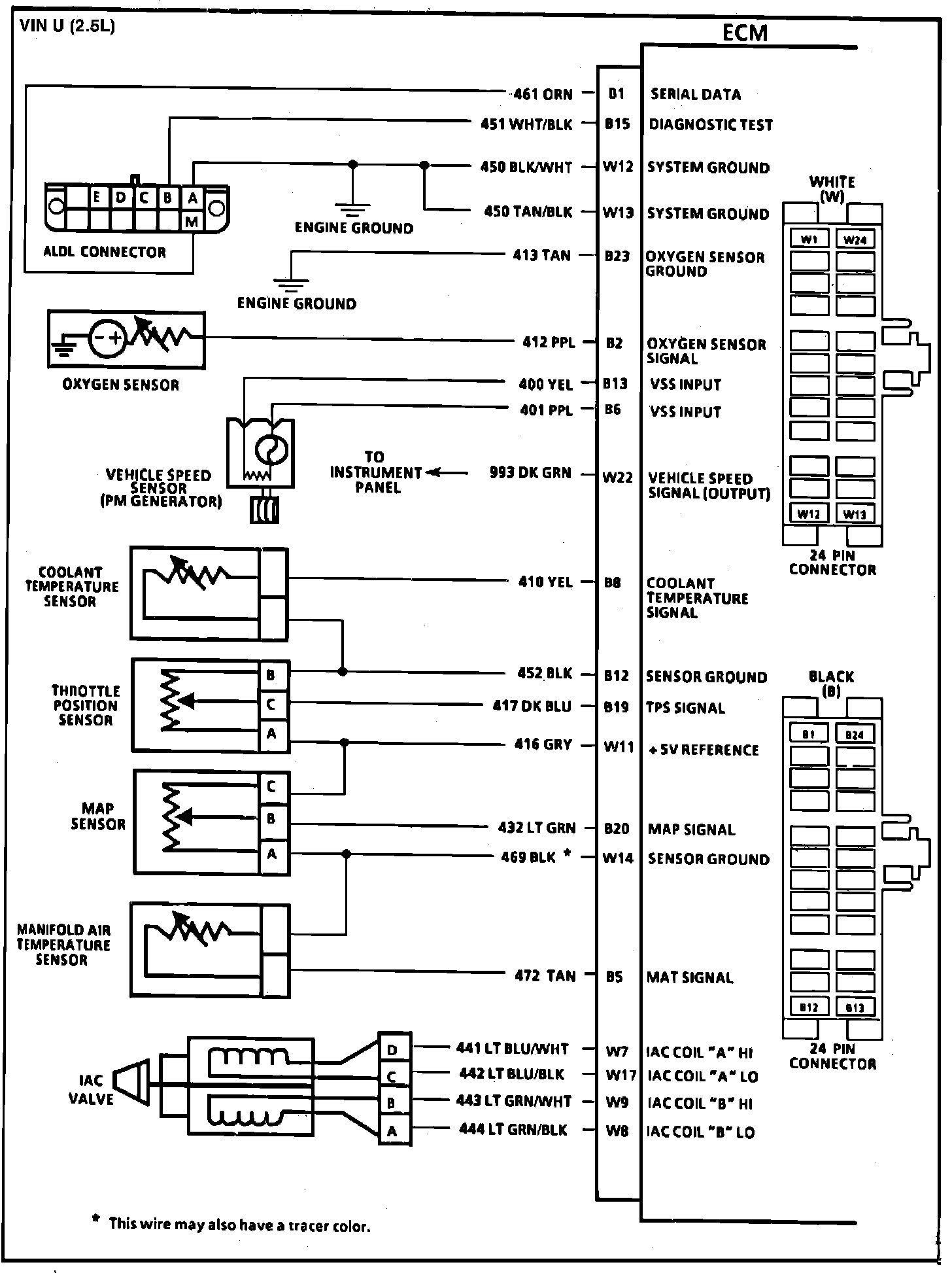

Fig. 087 ECM Wiring Diagrams (3 of 3):
