Engine Specifications

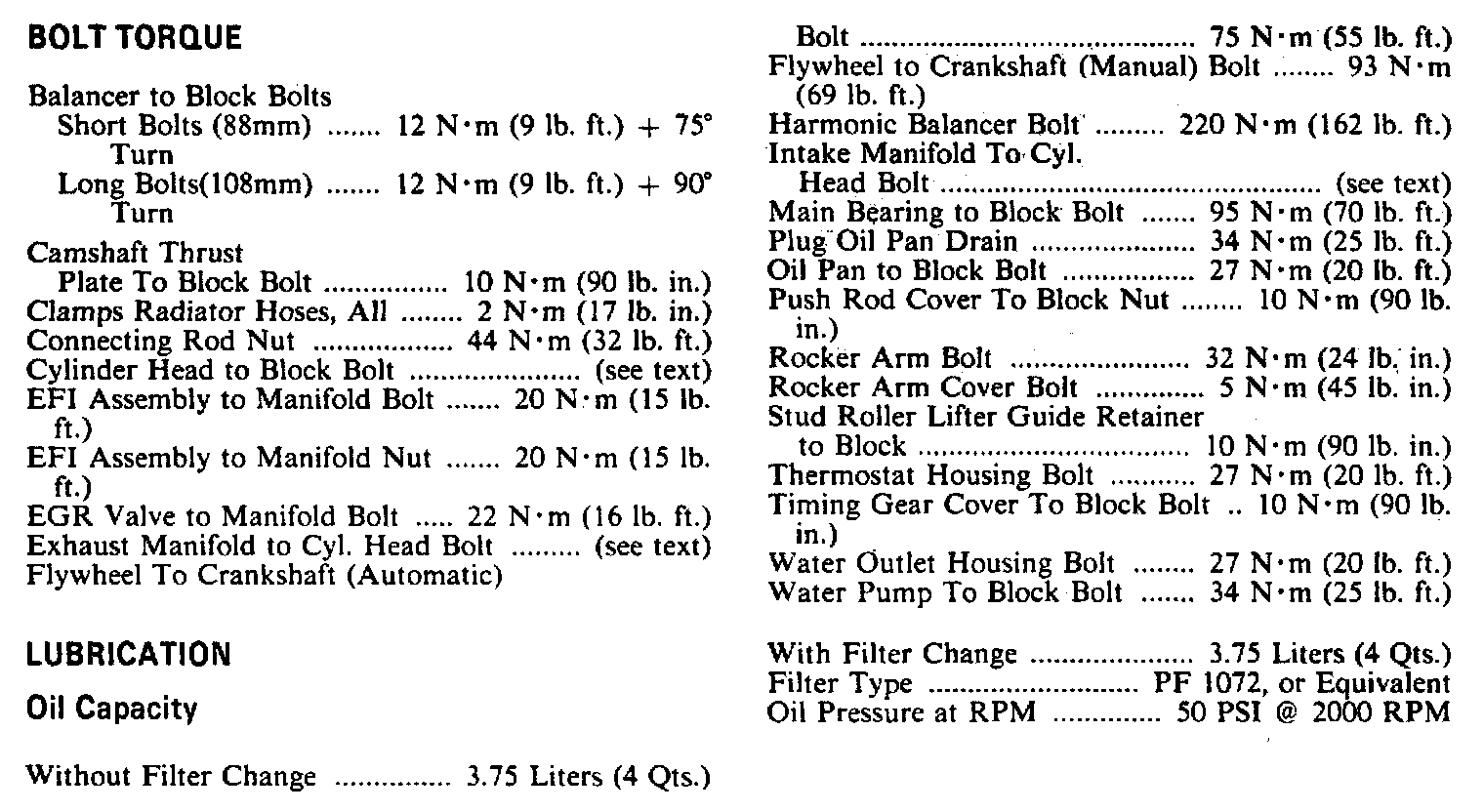

Torque Specifications:

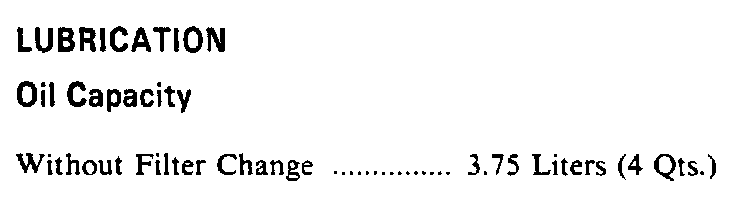

Engine Specifications:

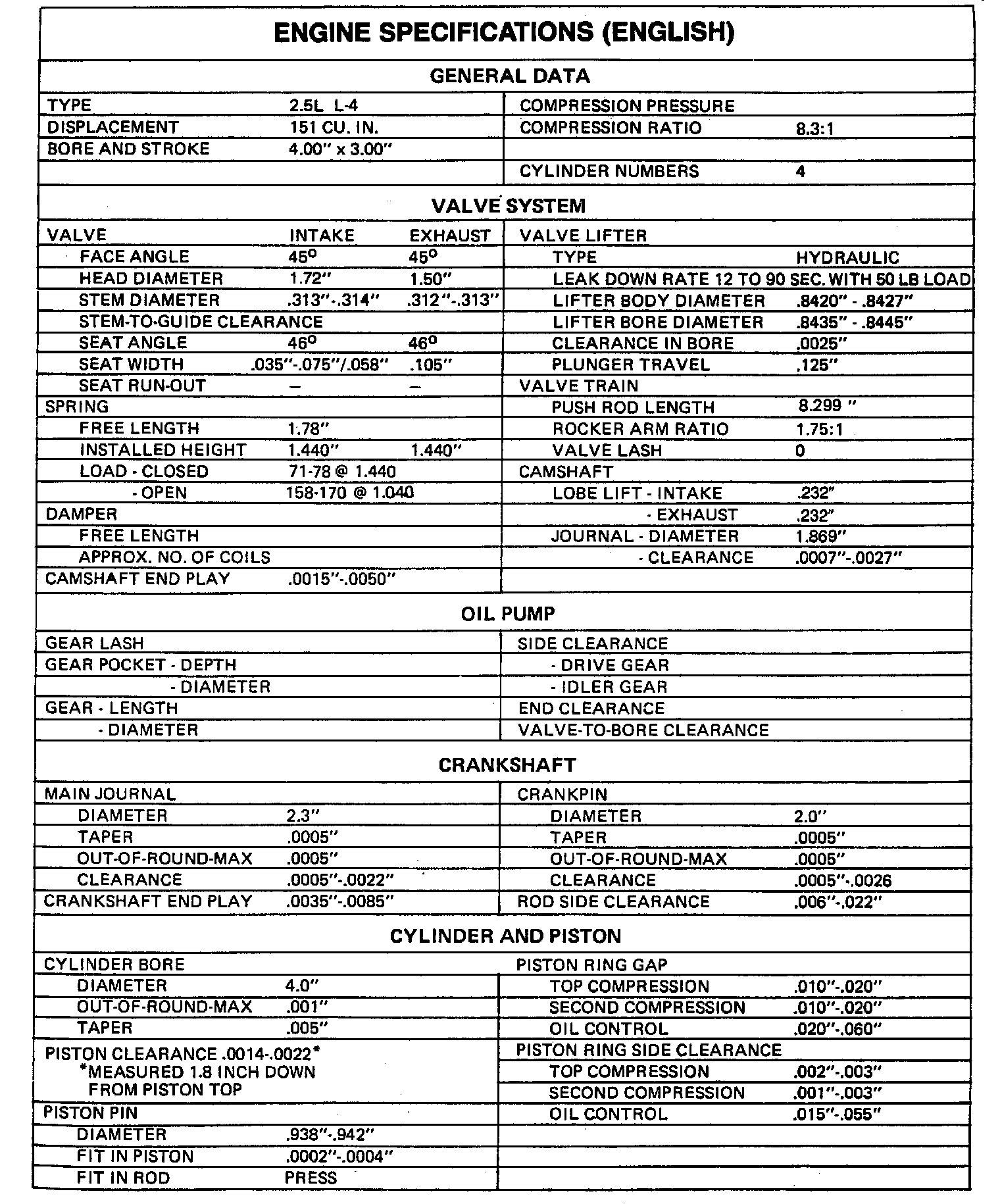

Engine Specifications (ENGLISH):

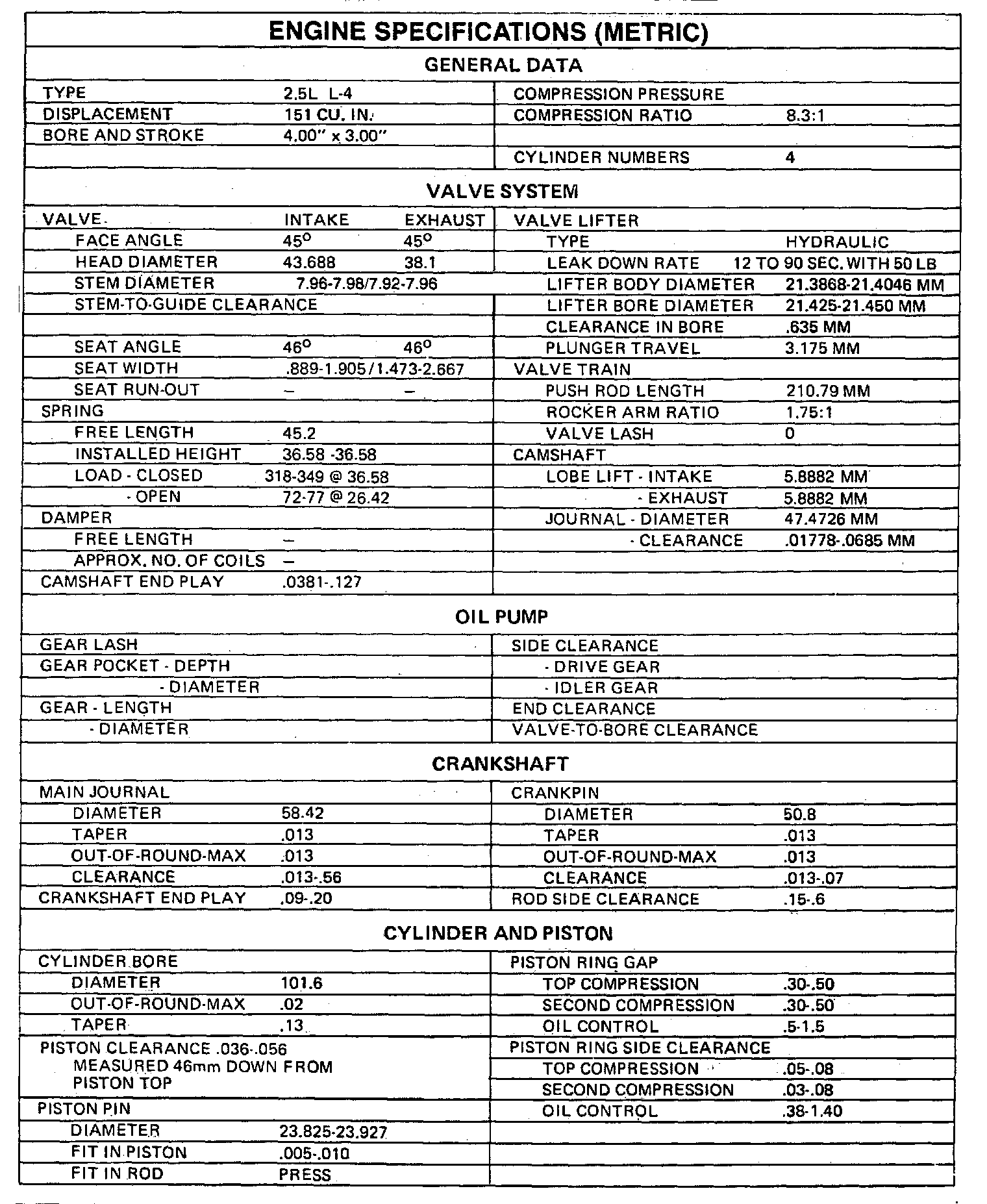

Engine Specifications (METRIC):

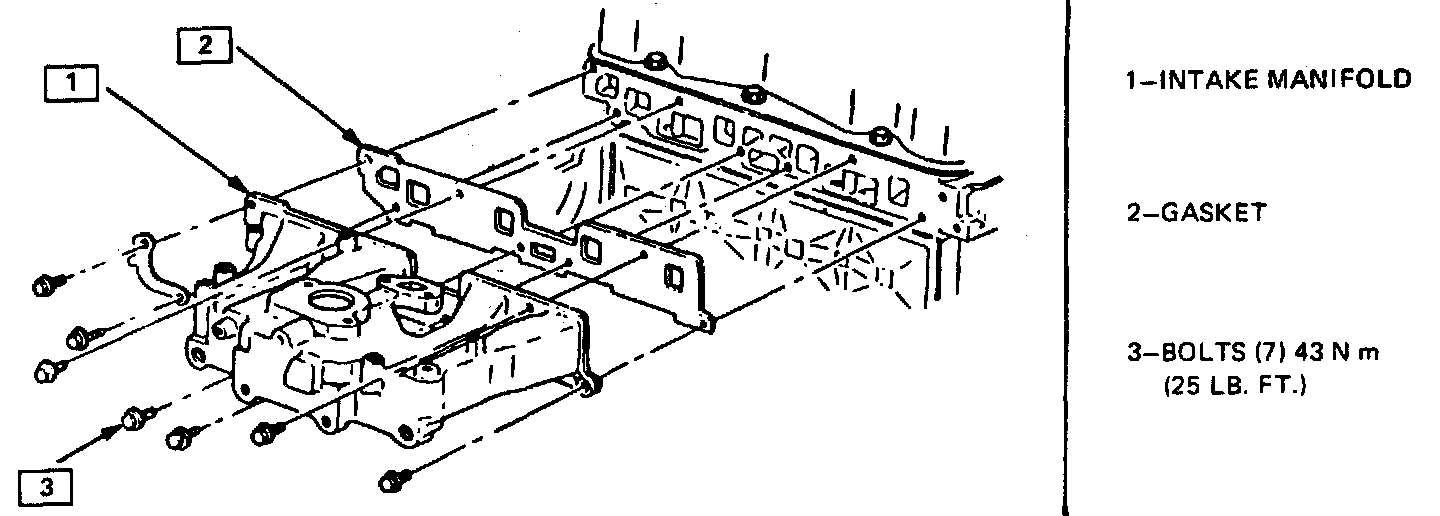

Intake Manifold Torque Sequence:

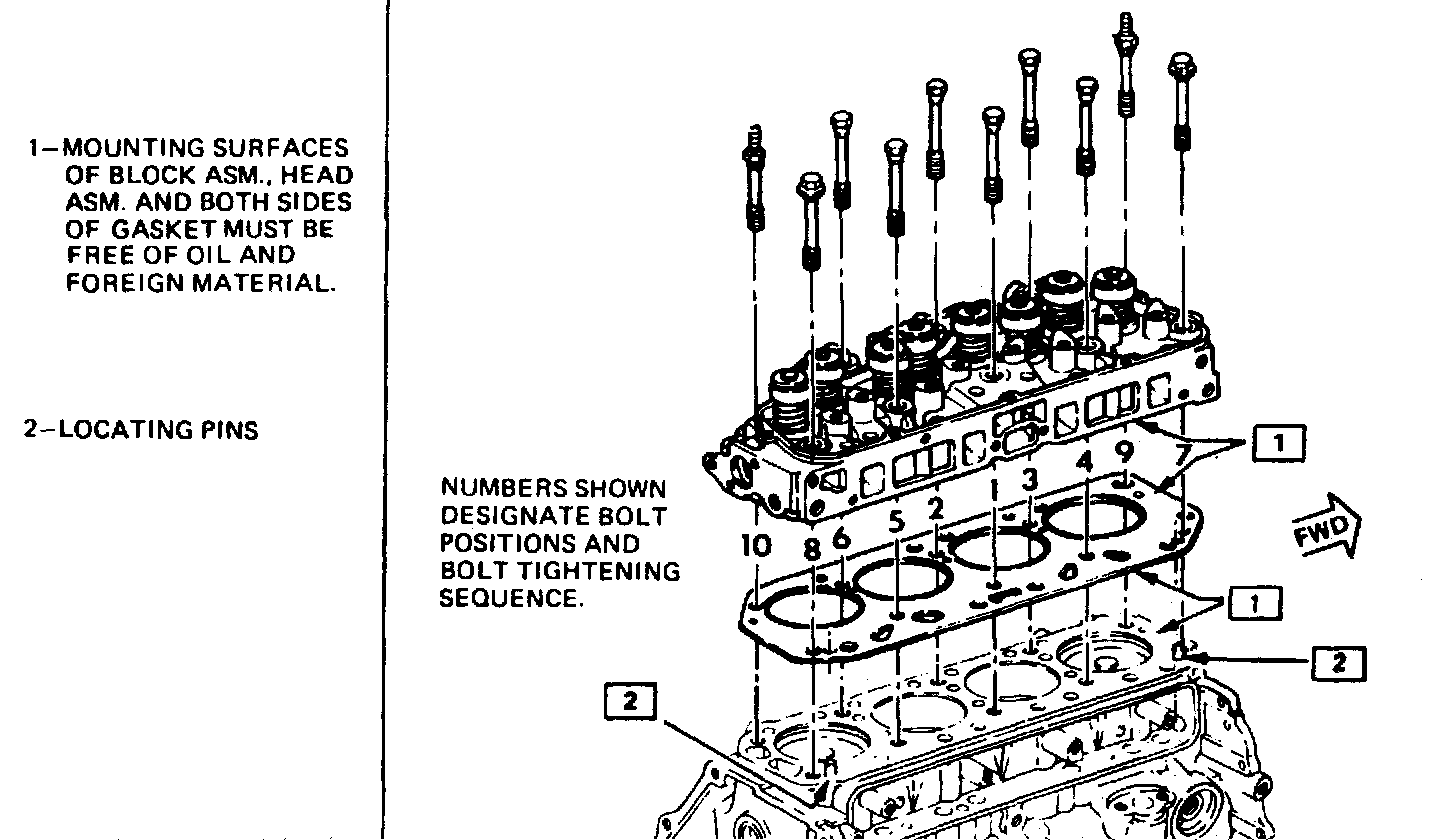

Cylinder Head Torque Sequence:
