Anti-Lock Brake System Component Locations

WARNING: This page is about a different car, the 1990 Buick Riviera and 1990 Buick Reatta. However, it is still accessible from the selected car via links, so may be relevant.

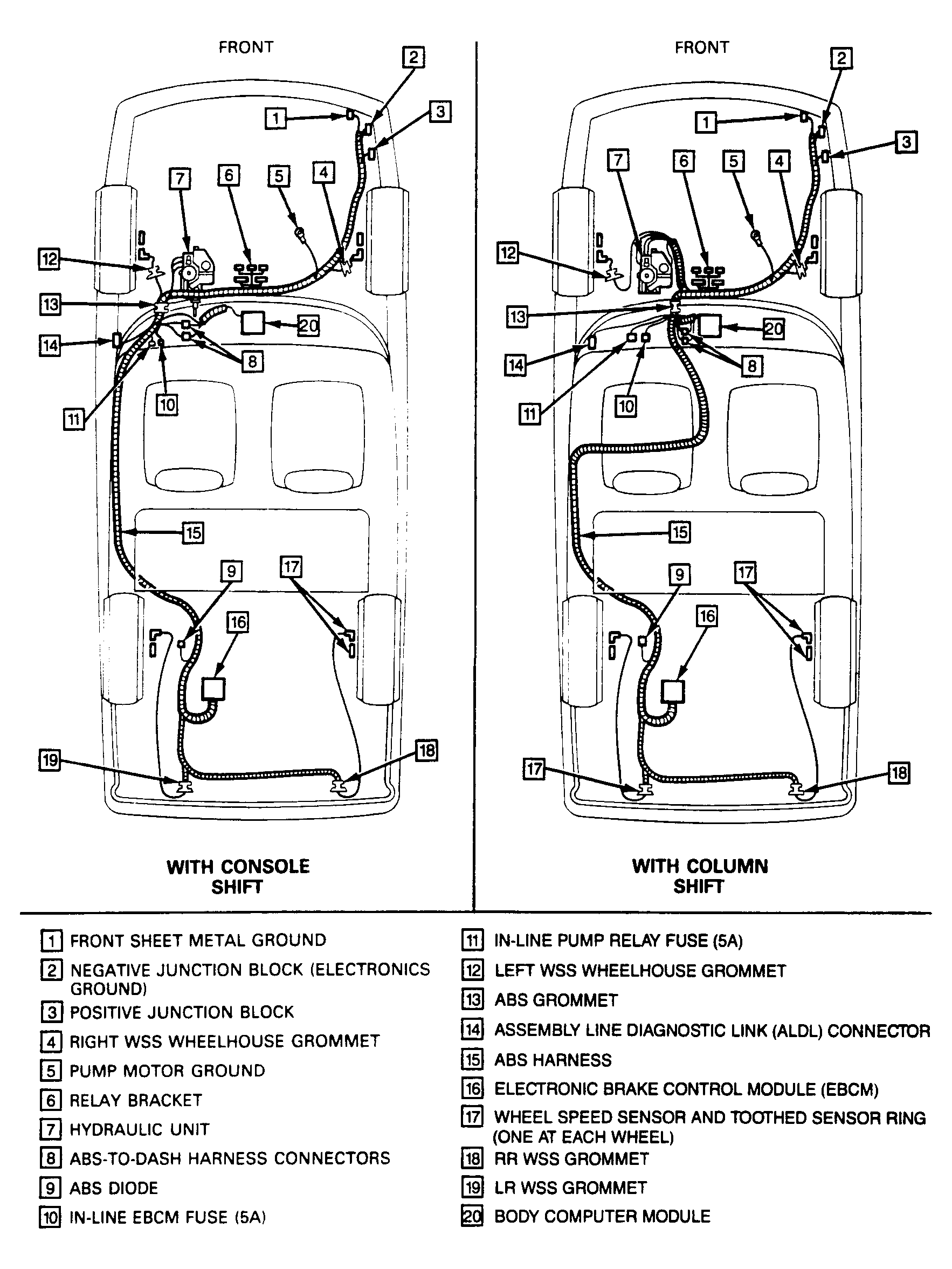

Fig 1: Anti-Lock Brake System Component Locations
G53935
Fig 2: Anti-Lock Brake System Relay Locations
G56116
