Note On Intermittents

WARNING: This page is about a different car, the 1989 Cadillac Fleetwood and 1989 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

If an intermittent Code E24 is being set, lift drive wheels and let vehicle idle in low gear. Manipulate the related wiring while observing engine data parameter P.1.2. If failure is induced, vehicle speed reading will drop from its normal value to reading of zero MPH. If wiring and connectors are okay, substitute a good known sensor and repeat testing procedure.

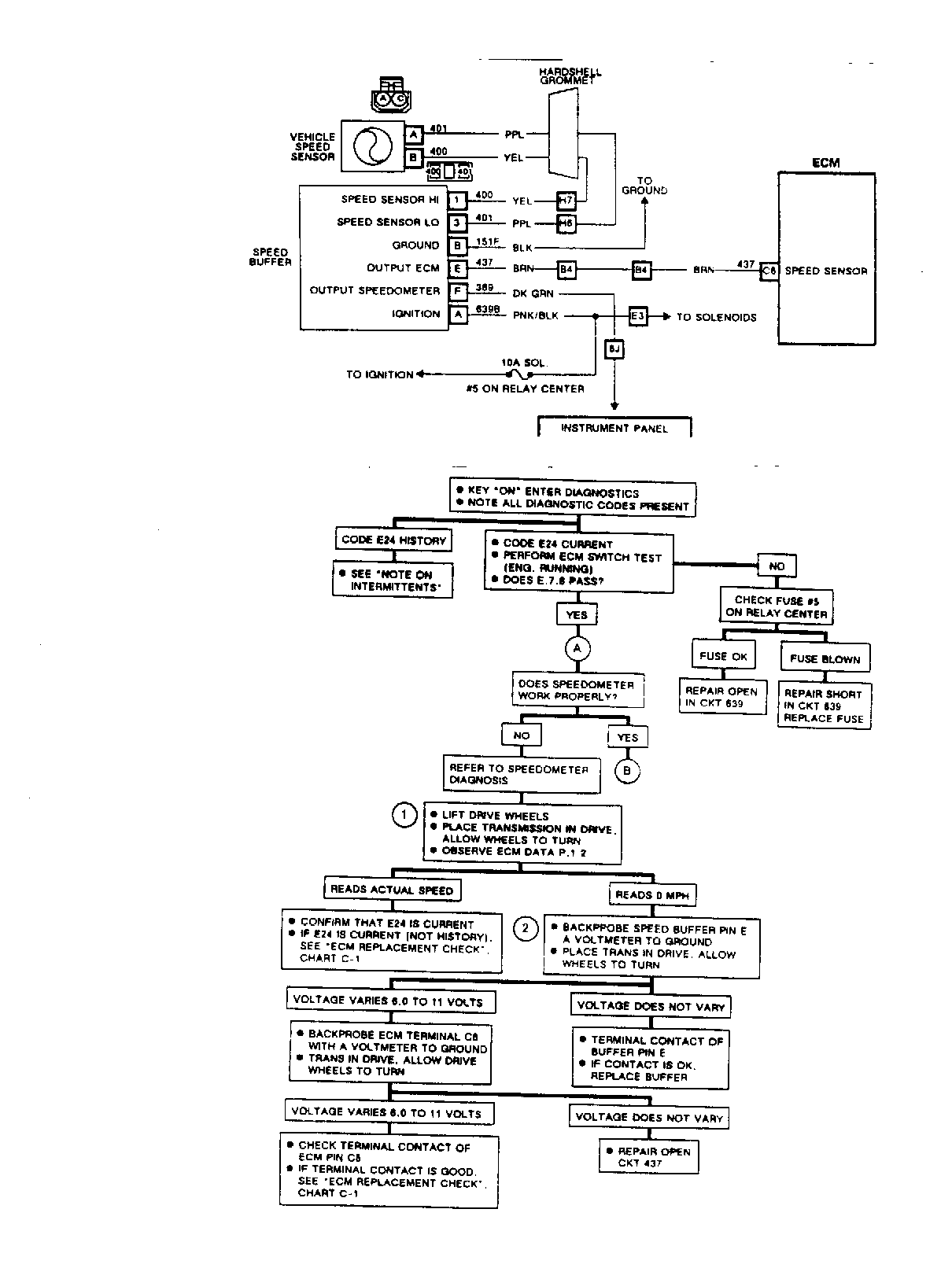

Fig 1: Code E24 Schematic - Speed Sensor Circuit Problem

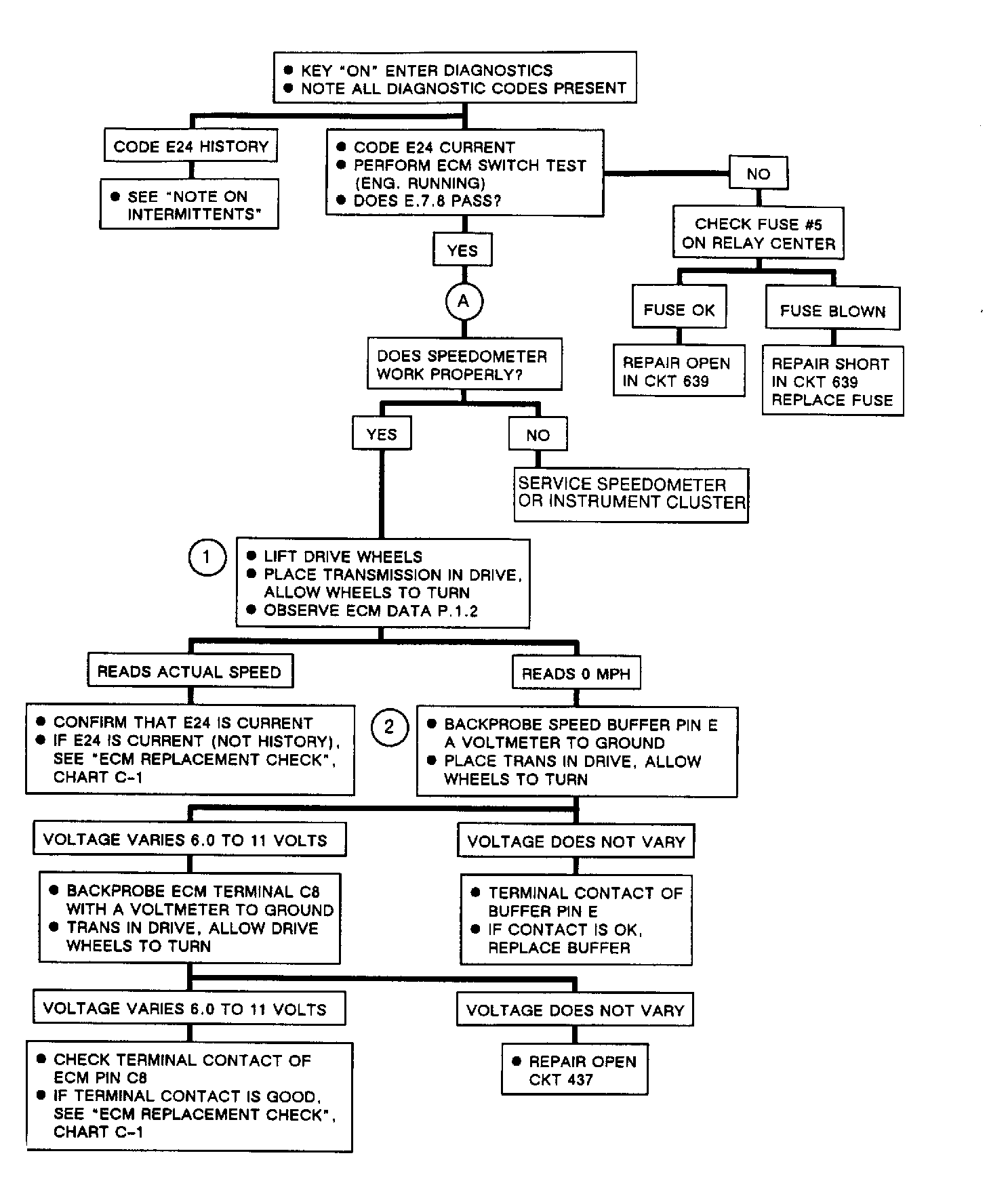

Fig 2: Code E24 Flow Chart - Speed Sensor Circuit Problem
