WARNING: This page is about a different car, the 1990 Cadillac Fleetwood and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

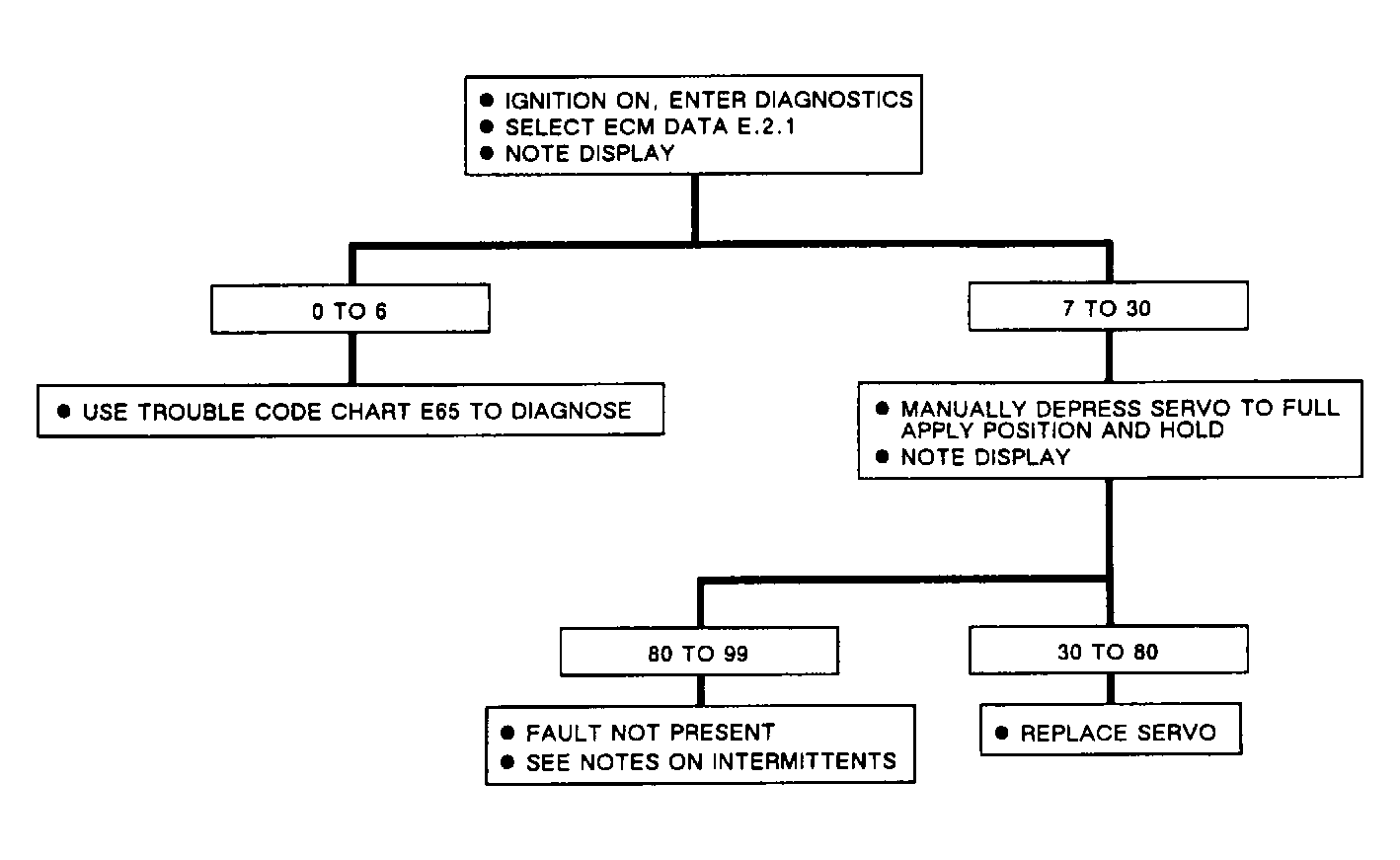

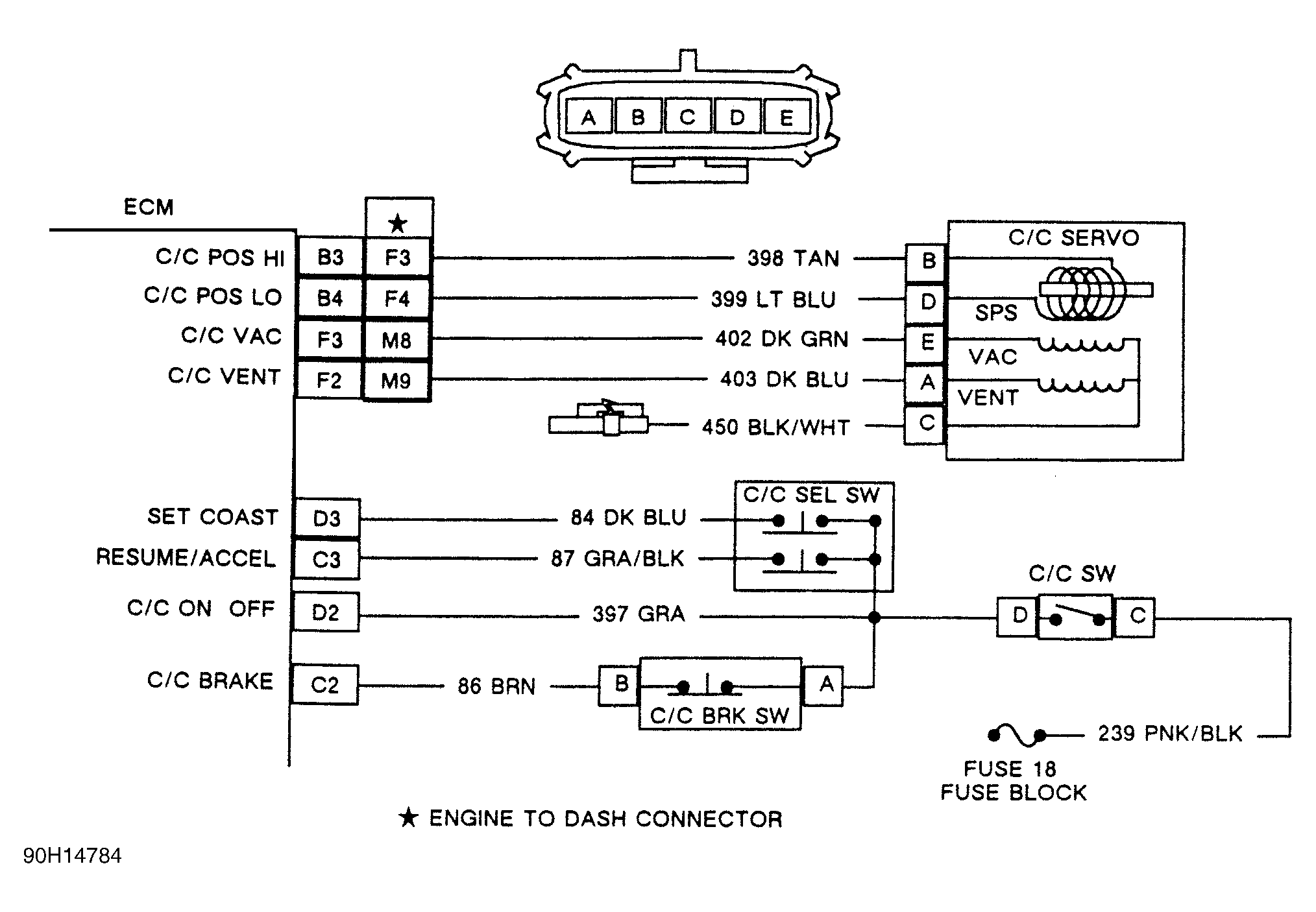

Manipulate ECM, 56-pin engine-to-dash and servo connectors plus affected wiring and note display for rapid change in servo position.
