Note On Intermittents

If an intermittent Code B671 is being set, manipulate related wiring while observing BD70 display. If failure is induced, reading will jump from its normal value to a reading less than 3 percent.

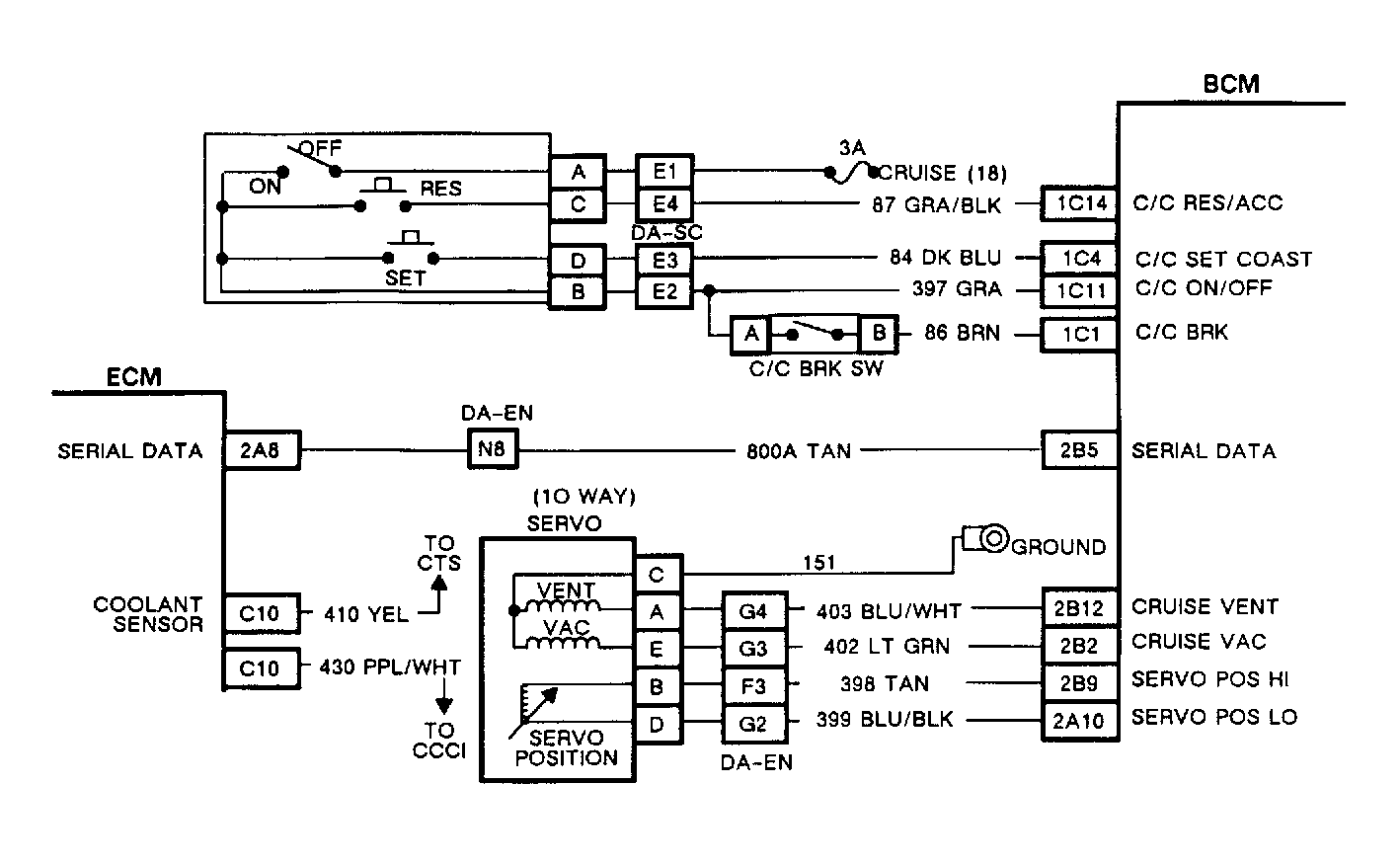

Fig 1: Code B671: Circuit Diagram

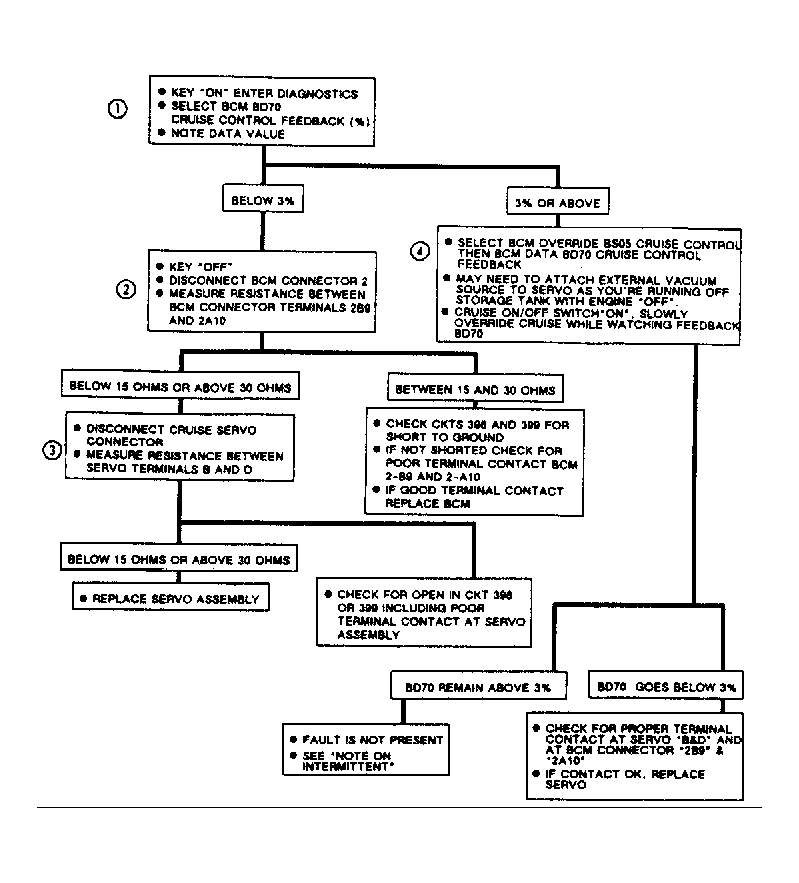

Fig 2: Code B671: Flow Chart Cruise Servo Position Sensor Circuit
