Engine Controls - Tests W/Codes - ECM
>>
ECM Trouble Code Charts
>>
Code E041 - Cam Sensor Circuit
>>
Quick reference:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Quick reference:

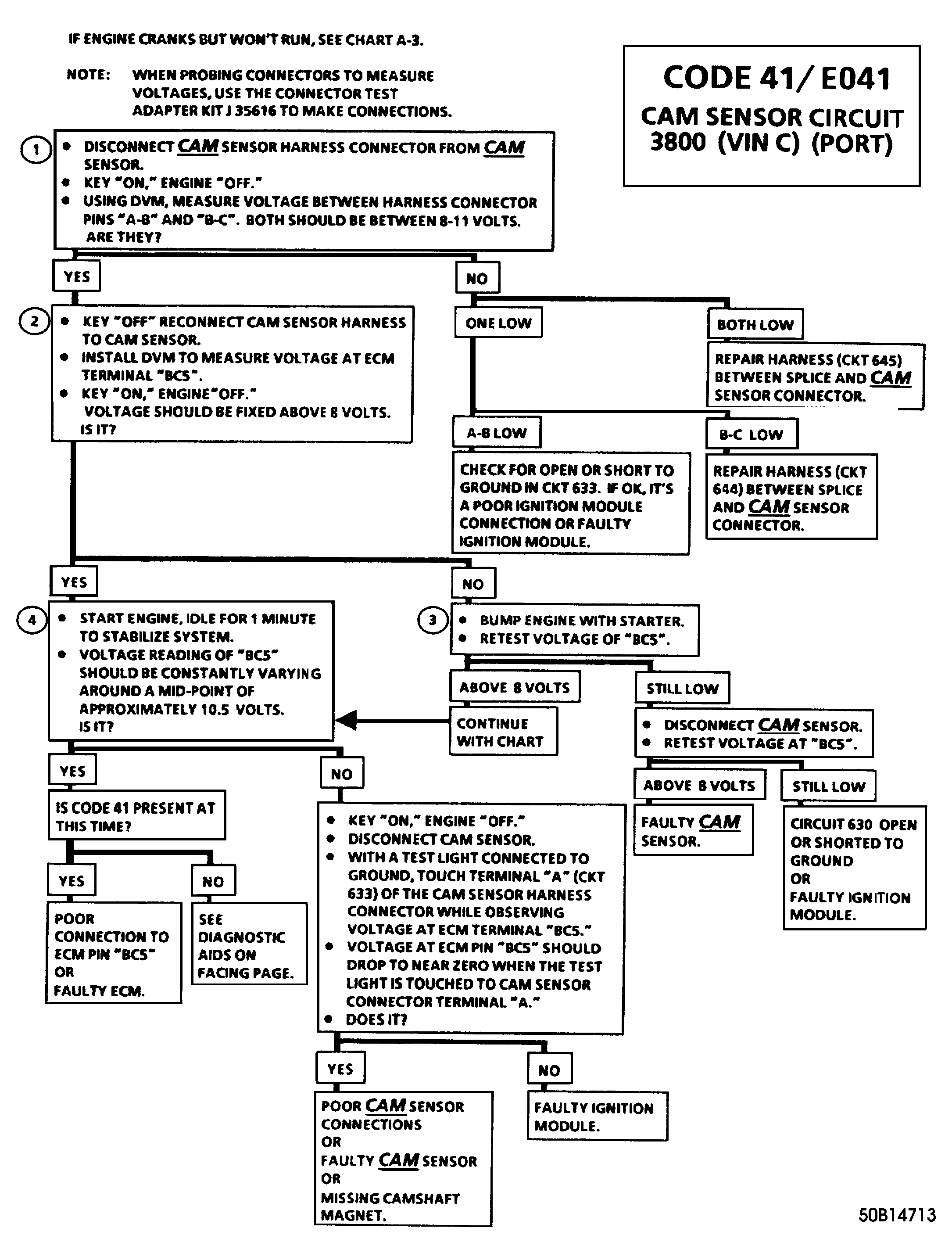

See
Figure
for Code E041 flow chart.

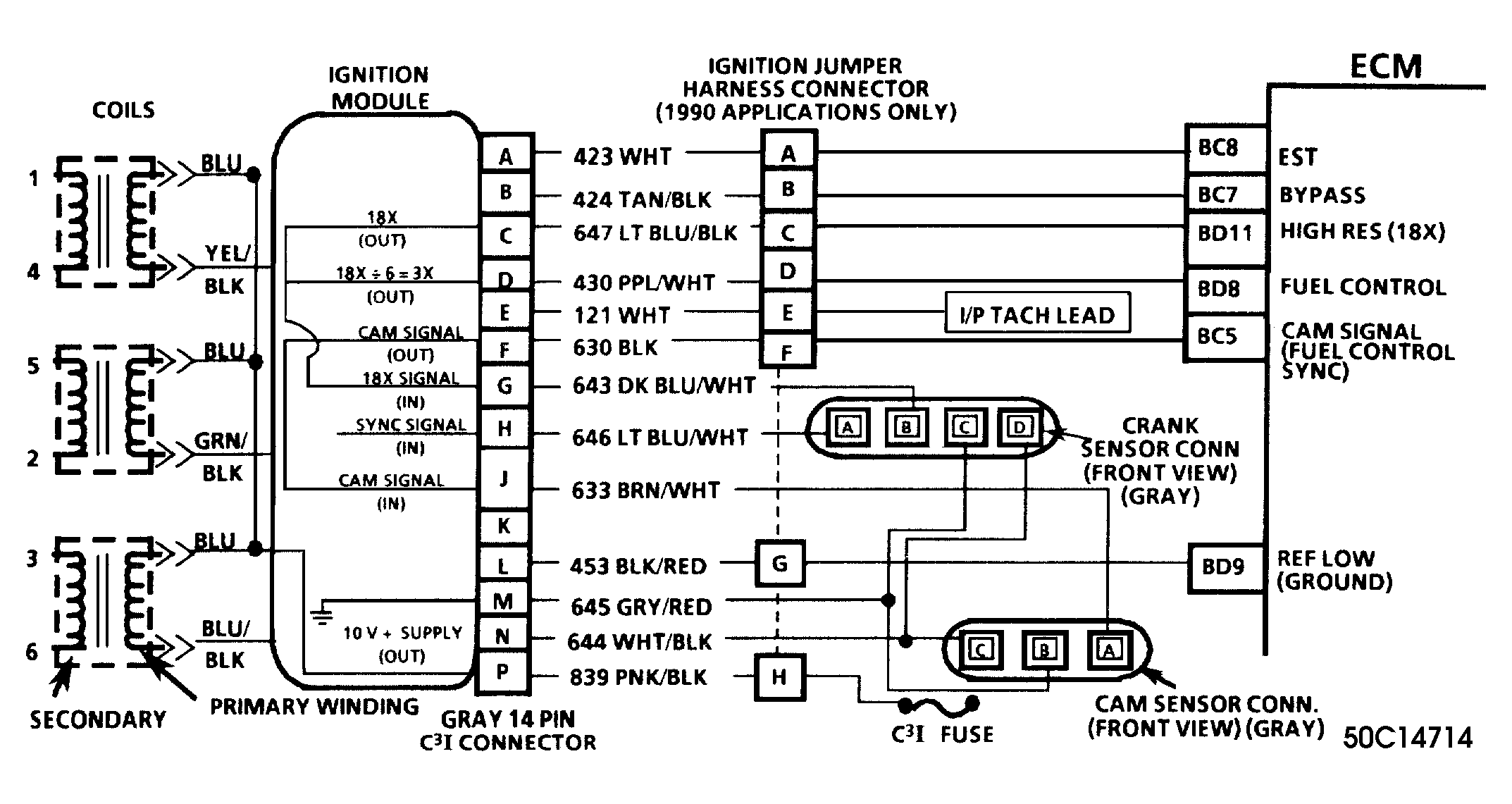

See
Figure
for Code E041 supplemental wiring.
