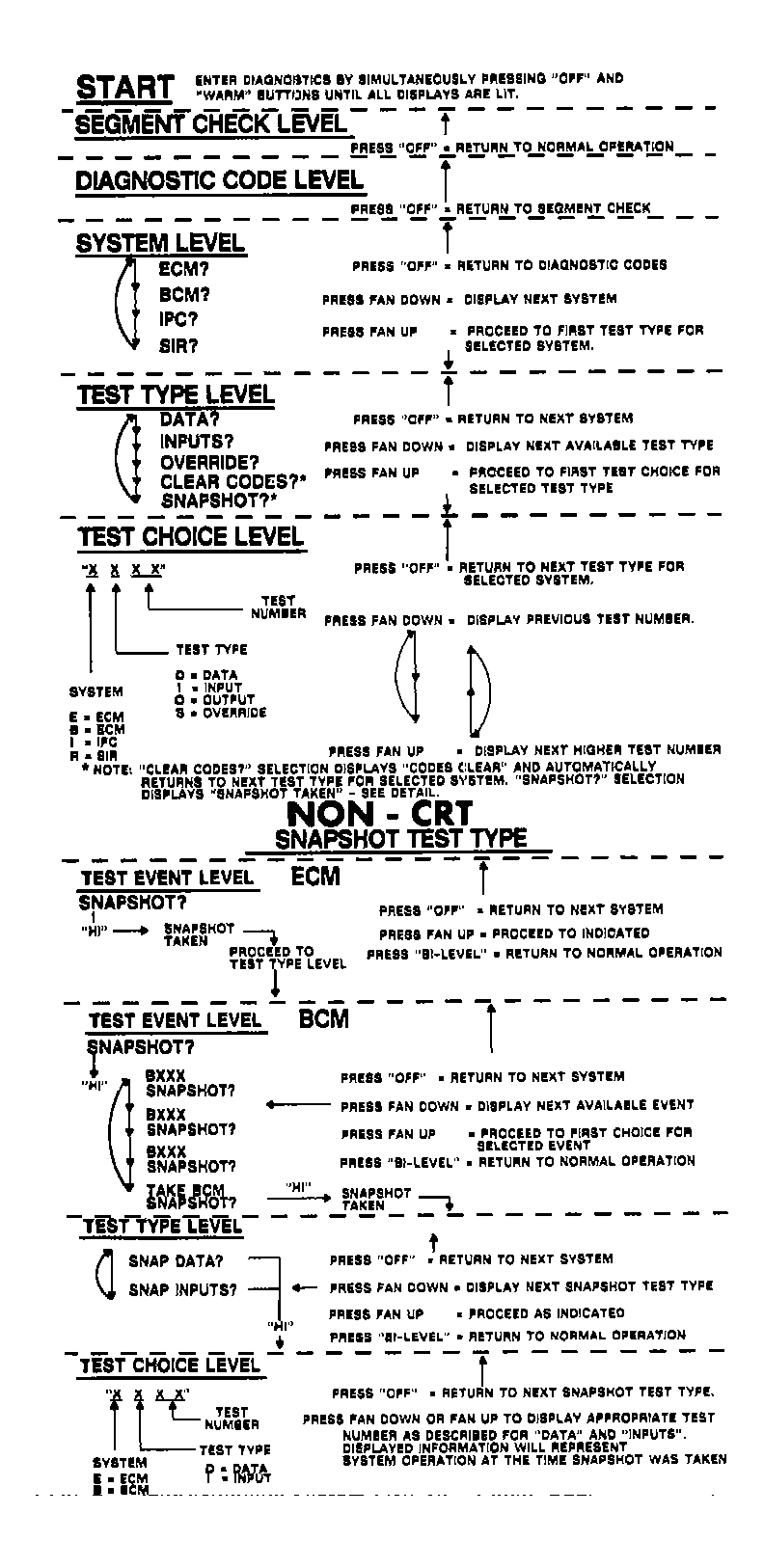

Making Specific Test Selection
- On NON-CRT equipped vehicles, scrolling to a lower specific test number is done by depressing the FAN DOWN button. Scrolling to a higher specific test number is done by depressing the FAN UP button. The system will automatically display the value for whatever specific test number is displayed.
- On CRT monitor equipped vehicles, scrolling to a lower specific test number is done by touching the NO key on the CRT monitor control panel. Scrolling to a higher number is done by touching the YES key. The system will automatically display the value for whatever specific test number is displayed.
NOTE:
To cancel a specific test type selection and activate a repeat of the specific test type selection process, depress the OFF button on ECC panel of NON-CRT equipped vehicles or touch LEVL key on the CRT monitor control panel of CRT equipped vehicles.
