Removal & Installation: Armrest: Installation

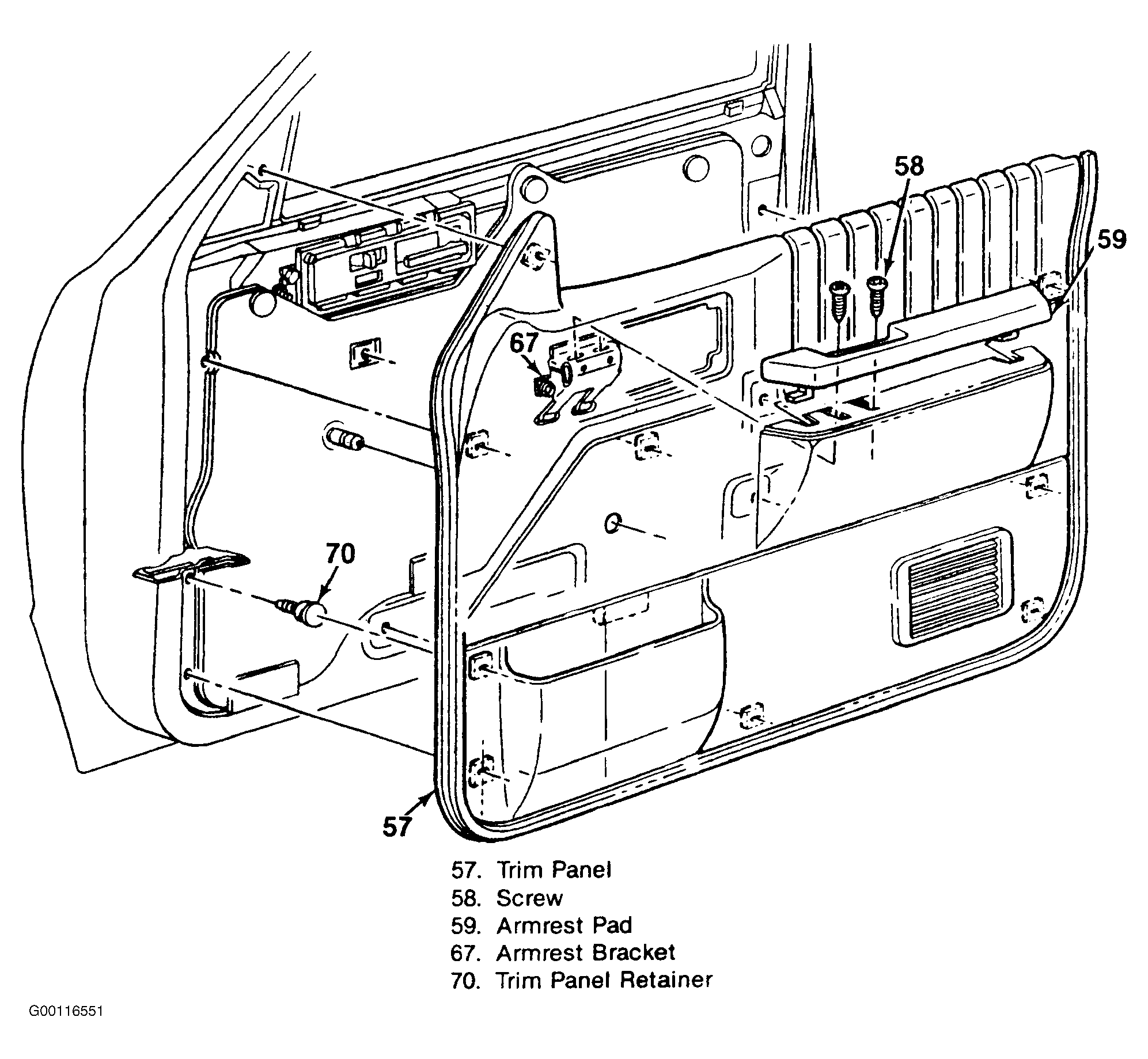

- Place the armrest retaining clips in the slots on the door panel. Slide the armrest toward the front of the door until the holes in the armrest align with the holes in the door trim. Fit armrest to the door trim.
- Install screws (58) securing the armrest to the door trim.
