Alternator Replacement

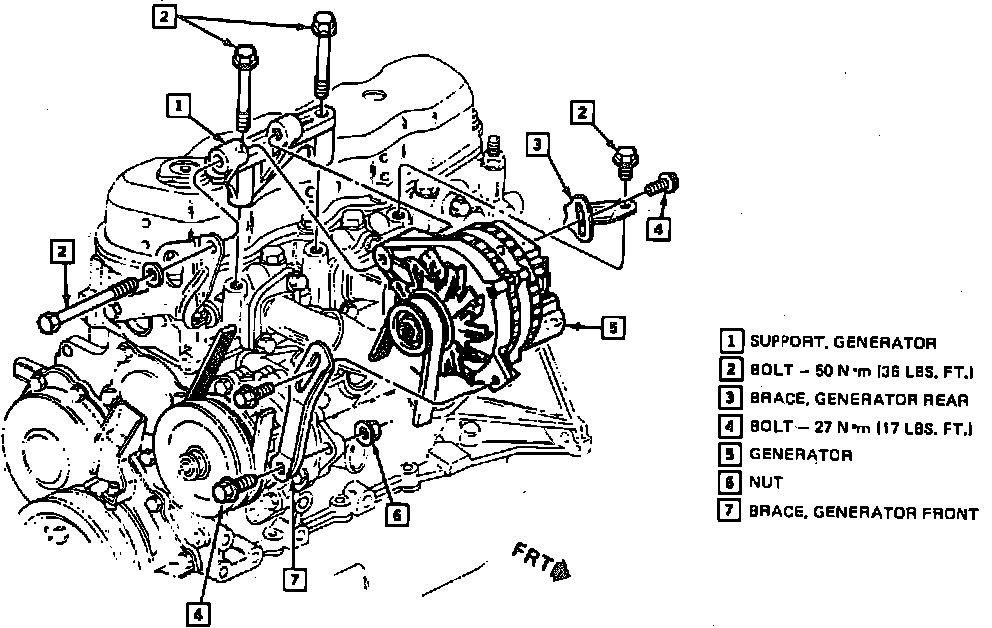

Fig. 10 Alternator Mounting. 2.0L/4-121 Turbo:

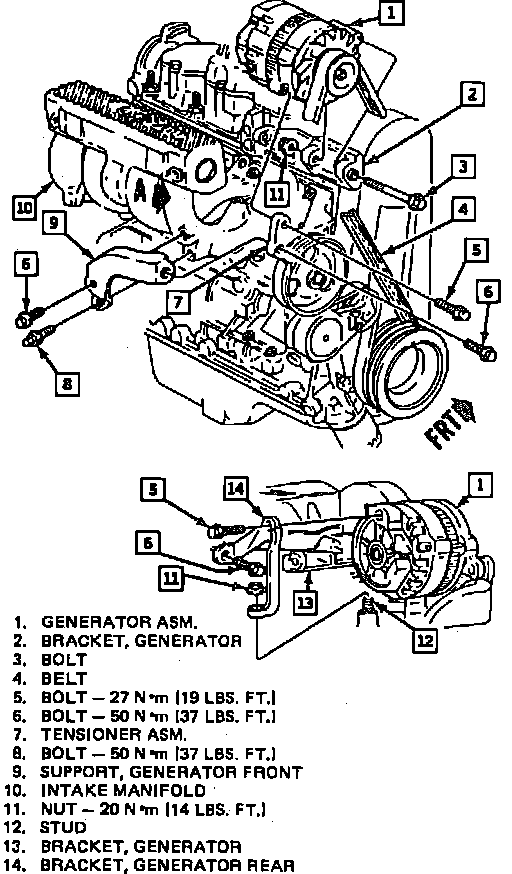

Fig. 11 Alternator Mounting. 2.5L/4-151:

Fig. 12 Alternator Mounting. 3.3L/V6-204:

1. Disconnect battery ground cable.
2. Disconnect electrical leads from alternator.
3. Remove alternator drive belt.
4. Remove alternator to mounting bracket attaching bolts, then remove alternator, Figs. 10, 11 and 12.
5. Reverse procedure to install.
