Power Window Switch: Service and Repair

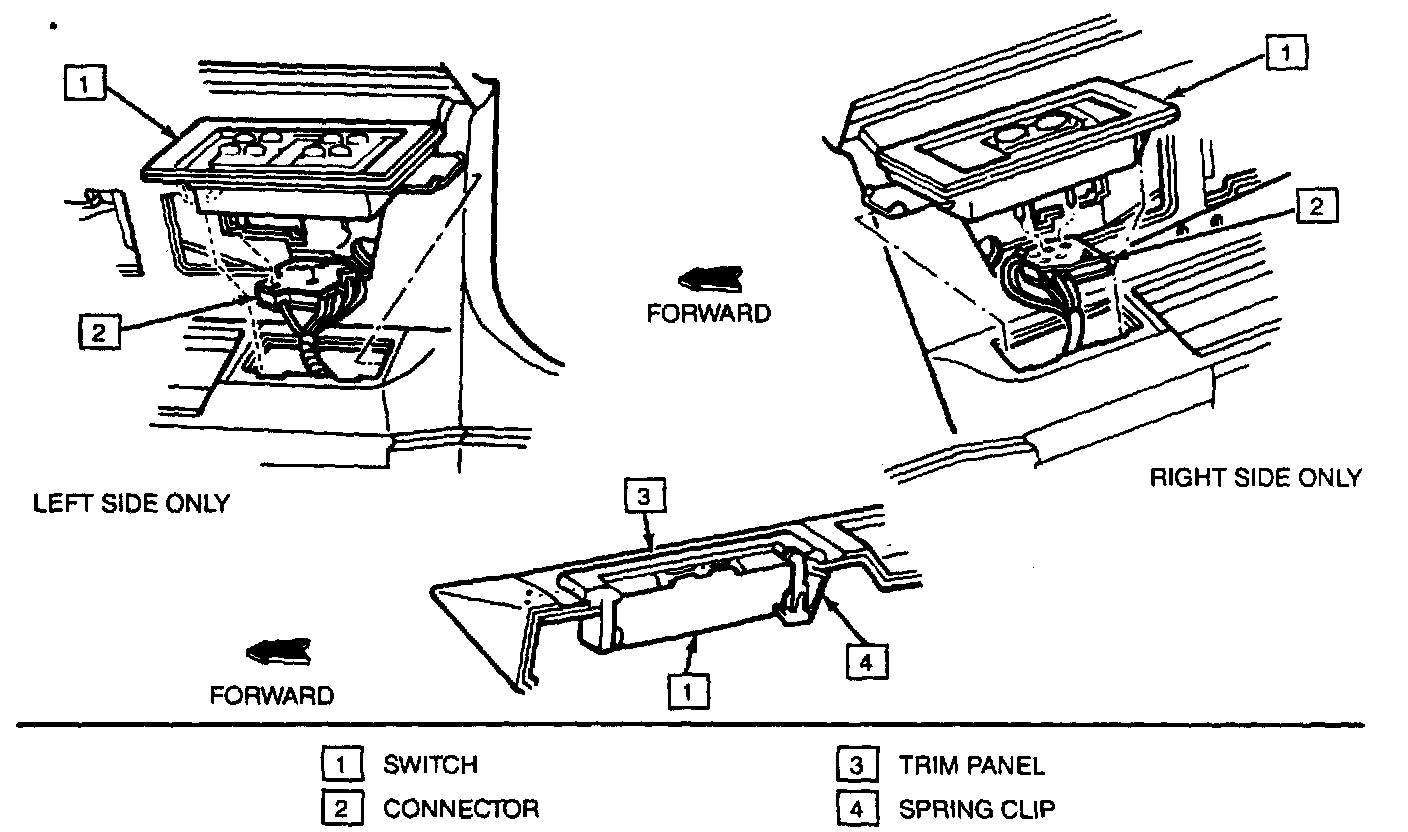

Electric Window Switch:

Remove or Disconnect

1. Release switch spring clip (4) from armrest by inserting a thin bladed tool between base of switch (1) and arm rest and pry up.
2. Wiring connector (2) from switch (1).

Install or Connect

1. Wiring connector (2) to switch (1).
2. Insert forward tab of switch (1) under lip of arm rest and press down on rear of switch to lock spring clip.
