Window Regulator Handle

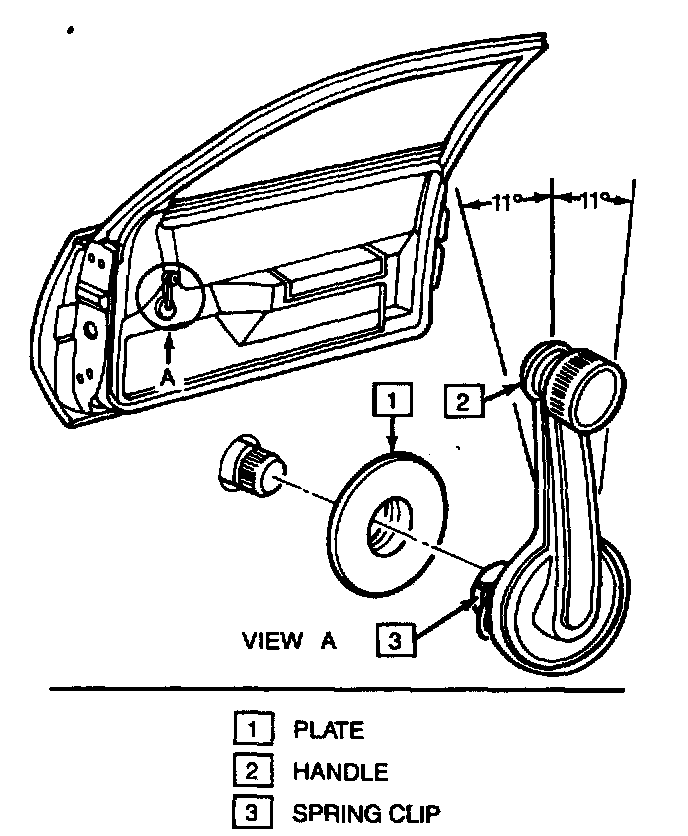

Window Regulator Handle:

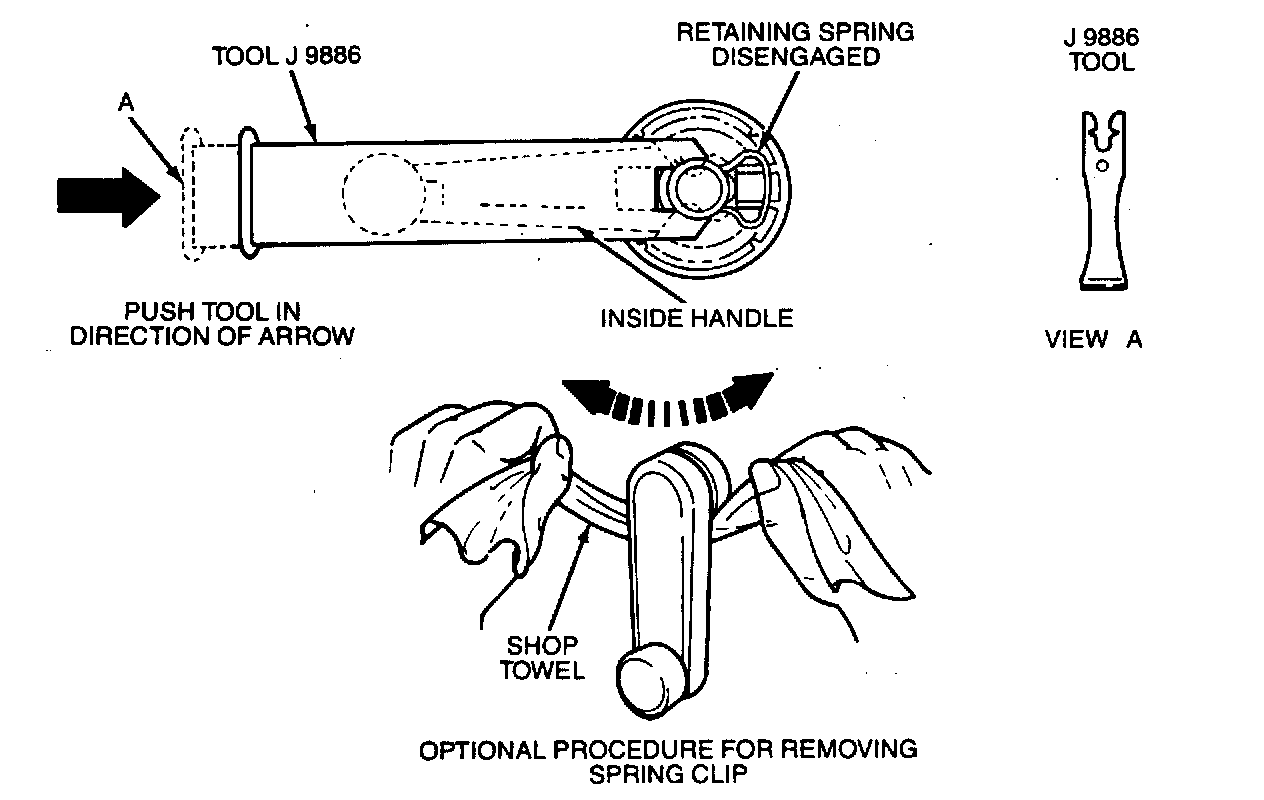

Releasing Window Regulator Handle Spring Clip:

Remove or Disconnect

1. Spring clip (3) by inserting tool J 9886 between handle and trim panel.
2. Handle (2).

Install or Connect

Important
^ Glass must be in the full up position.

1. Clips (3) to handle (2).
2. Handle to spindle by positioning handle as shown in the illustration and pressing handle until clip engages regulator spindle.
