Express Down Feature

Express Down Window:

The express down window feature is available on the drivers window only. Depressing the down switch greater than 0.3 seconds activates the express feature. Quickly tapping the down switch will move the window down an increment at a time if you desire. There are two ways to stop the express feature as it is going down:

1. Press the down switch a second time, or
2. Press the up switch once.

Loss of power to (or failure of) the window control module only eliminates the express feature.

Remove or Disconnect

CAUTION: Make sure to disconnect the power window switch when working inside the drivers door. When operated, the Express Down feature allows the door glass to drop very quickly which could cause personal injury.

1. Door trim panel.
2. Water deflector.
3. Wiring connector (4).

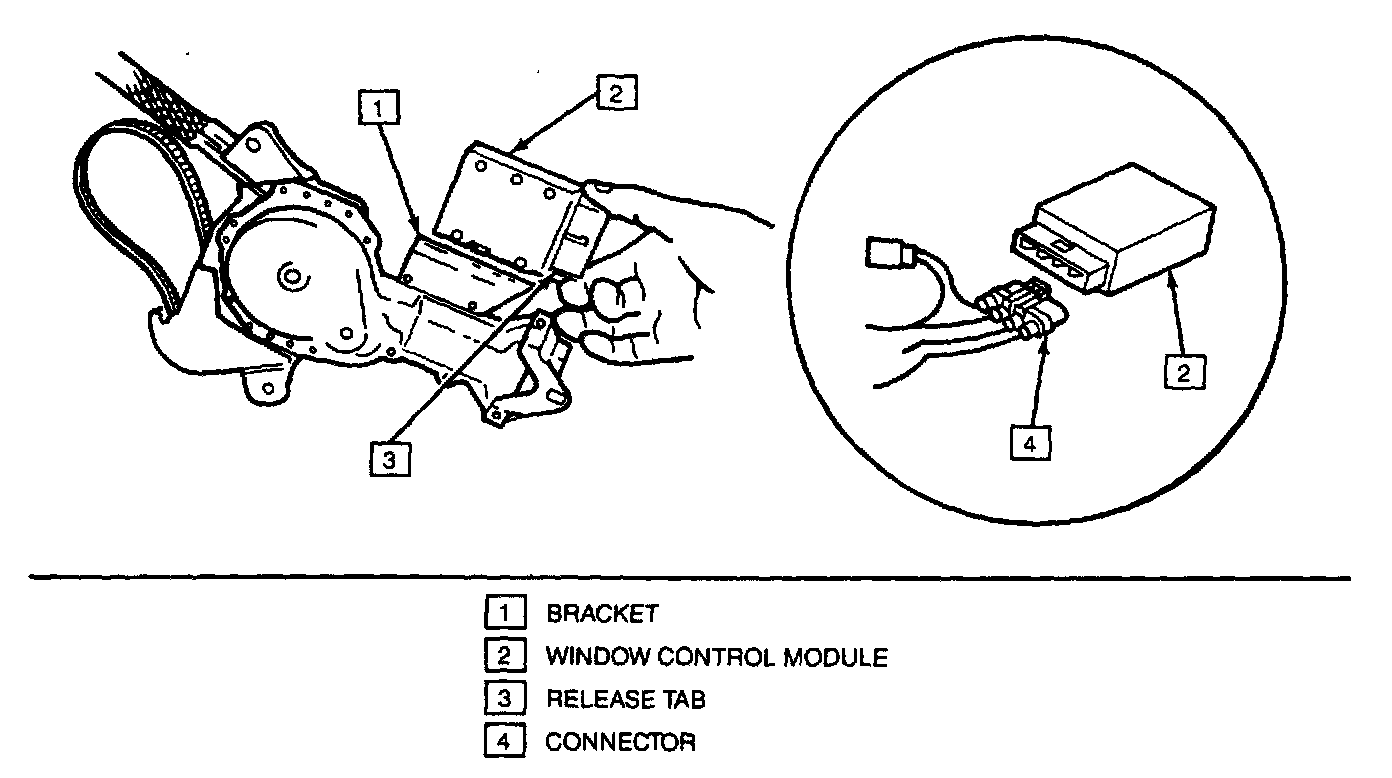

4. Release tab (3) on module (2) and slide module out of bracket (1).

Install or Connect

1. Module (2).
2. Wiring connector (4).
3. Water deflector.
4. Trim panel.
