Computer Command Control - Port Fuel Injection

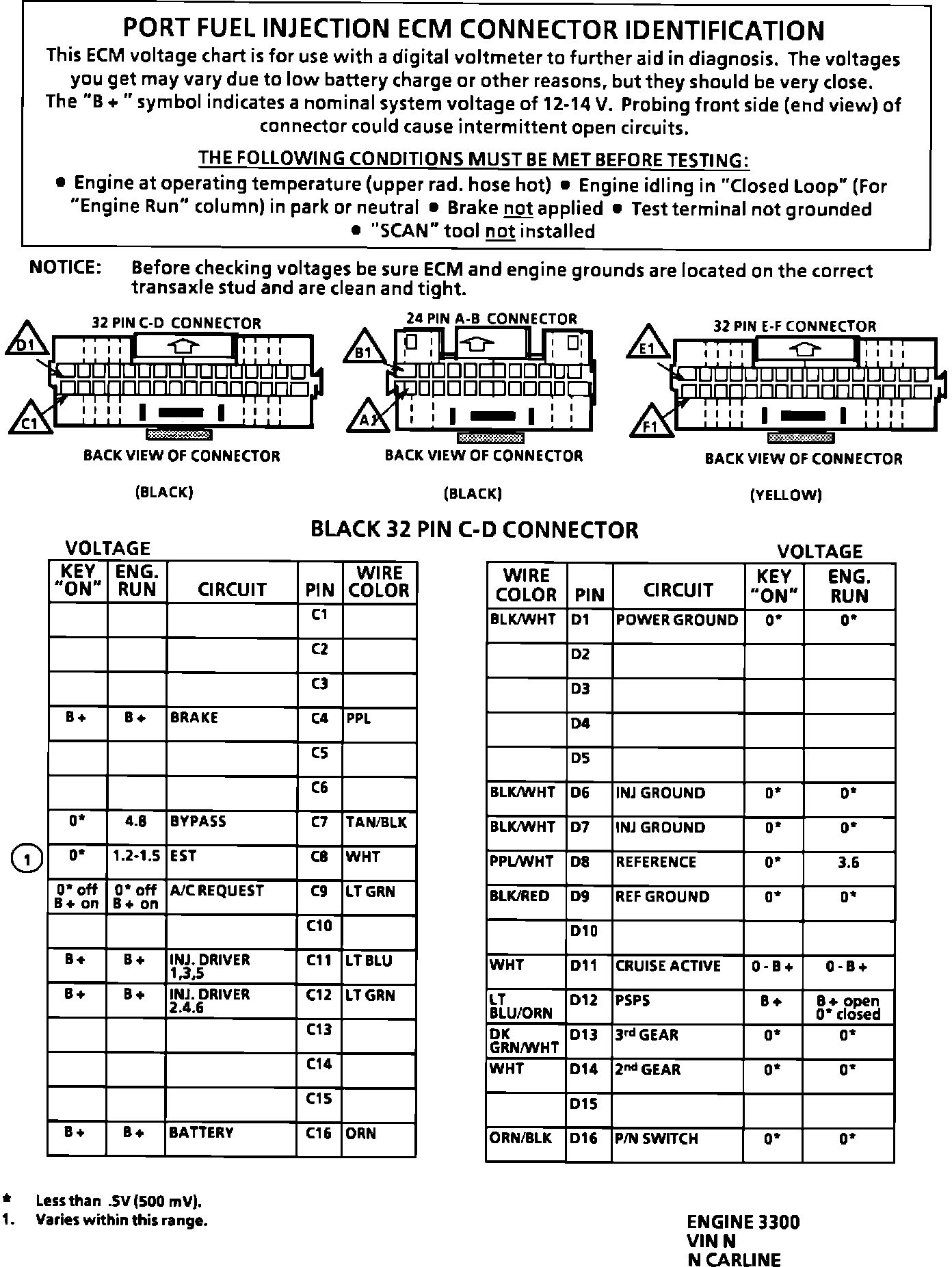

ECM Connector Terminal Identification (Part 1 Of 2):

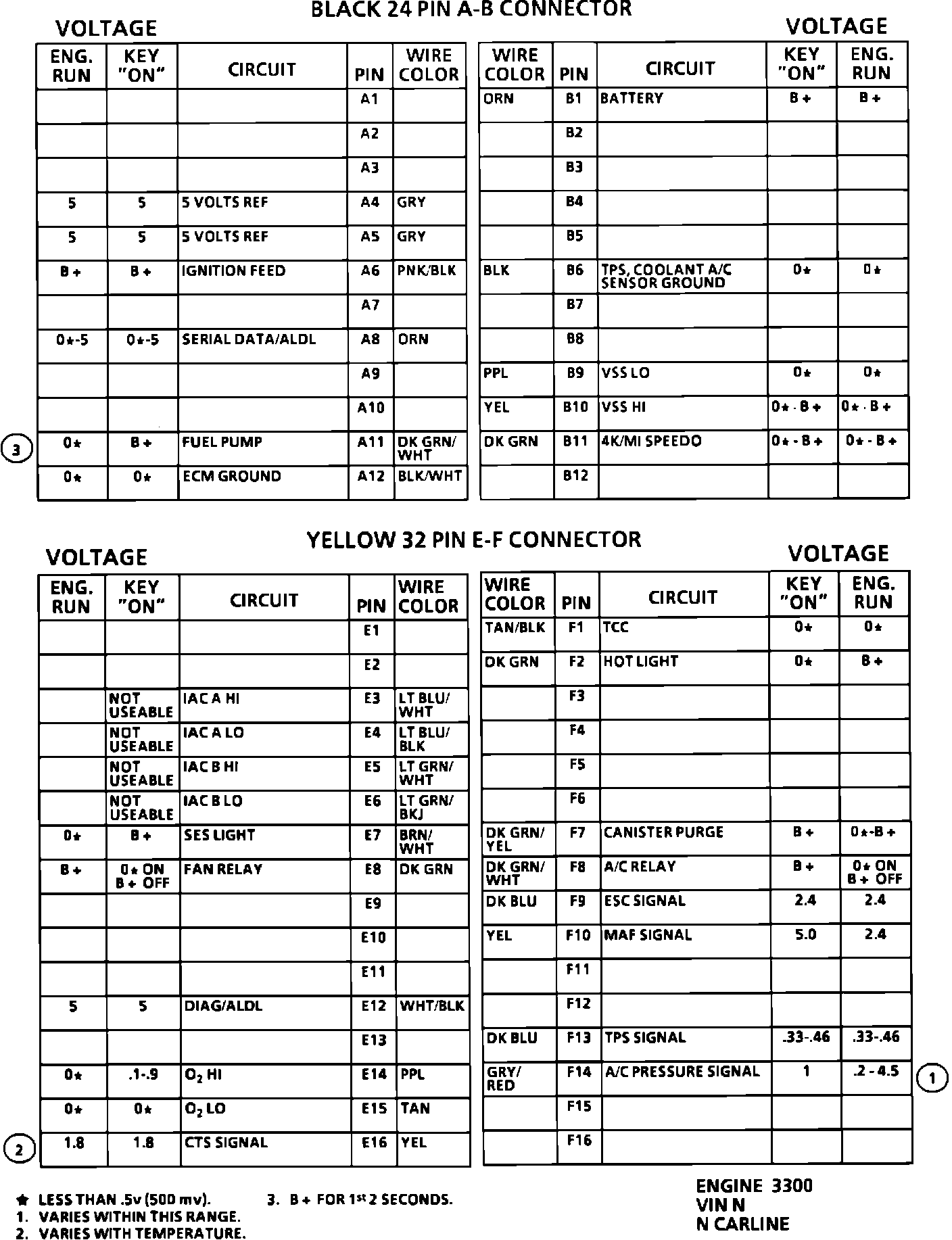

ECM Connector Terminal Identification (Part 2 Of 2):
