Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Fuse Block | Mounted To Left Side Of Instrument Panel, Accessible With Left Front Door Open. See Fig 1 . |
| Left Forward/Back Motor | Under Left Front Seat. |
| Left Front Height Seat Motor | Under Left Front Seat. |

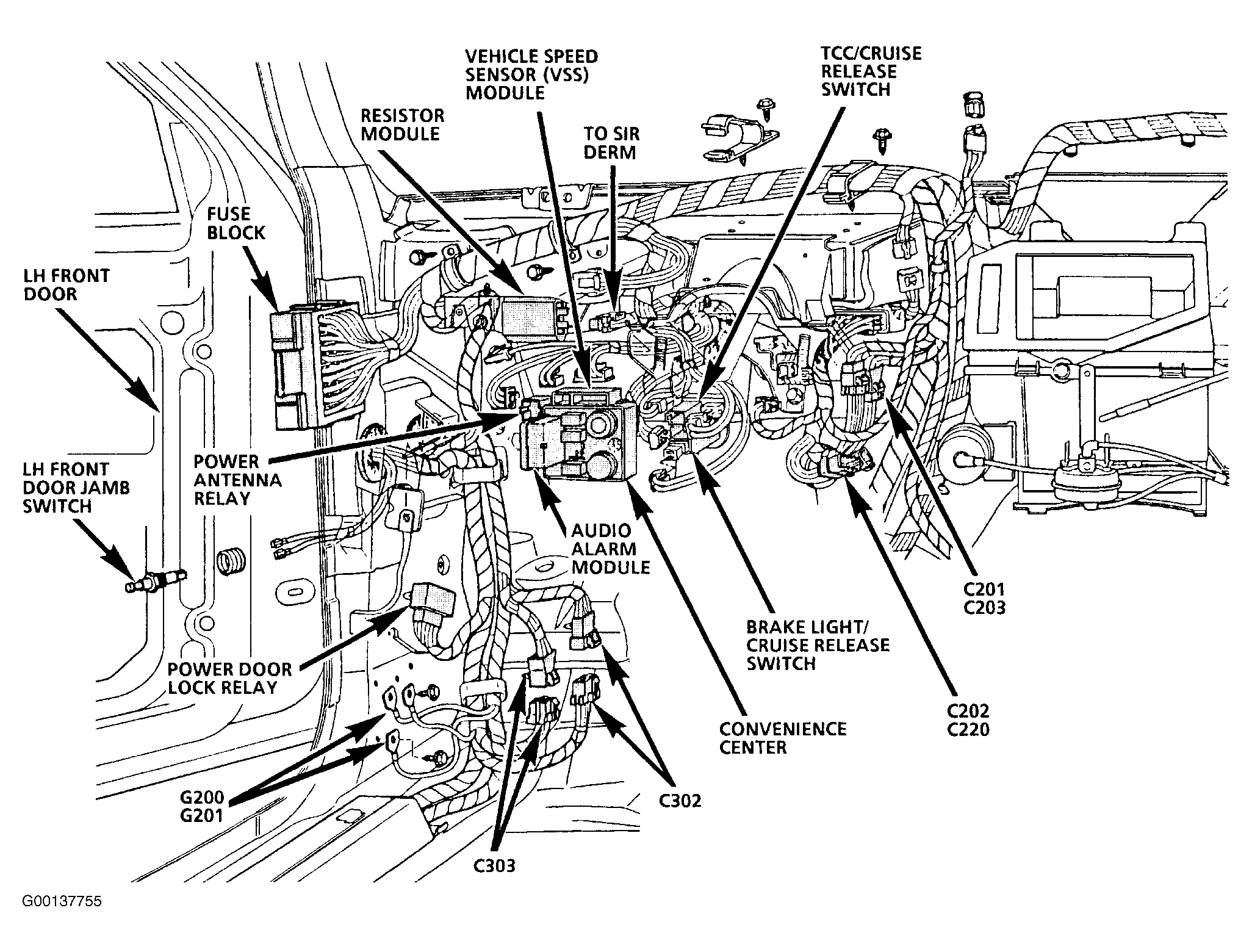

| Left Power Seat Switch | Left Front Door Armrest. See Fig 2 . |
| Left Rear Height Seat Motor | Under Left Front Seat. |
| Right Forward/Back Motor | Under Right Front Seat. |
| Right Front Height Seat Motor | Under Right Front Seat. |
| Right Power Seat Switch | Right Front Door Armrest. See Fig 3 . |
| Right Rear Height Seat Motor | Under Right Front Seat. |

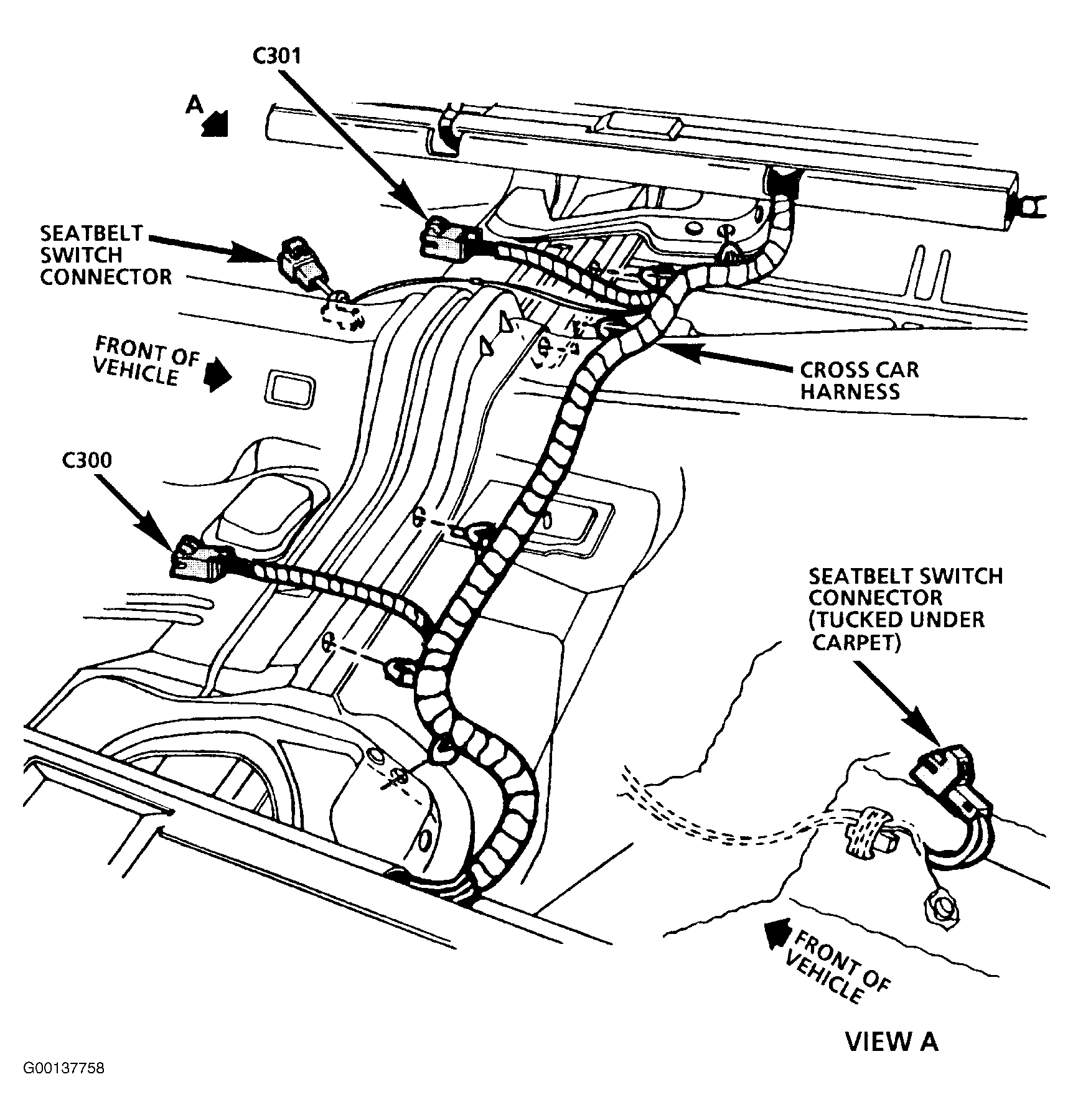

| C300 (6 Cavities) | Cross Car Harness To Left Power Seat Motor Harness, Under Left Front Seat. See Fig 4 . |
| C301 (6 Cavities) | Cross Car Harness To Right Power Seat Motor Harness, Under Right Front Seat. See Fig 4 . |
| C303 (6 Cavities) | Cross Car Harness To Body Harness, Left Kickpad At Base Of Left "A" Pillar. See Fig 1 . |
| G200 | Base Of Left "A" Pillar, Behind Left Kickpad. See Fig 2 . |

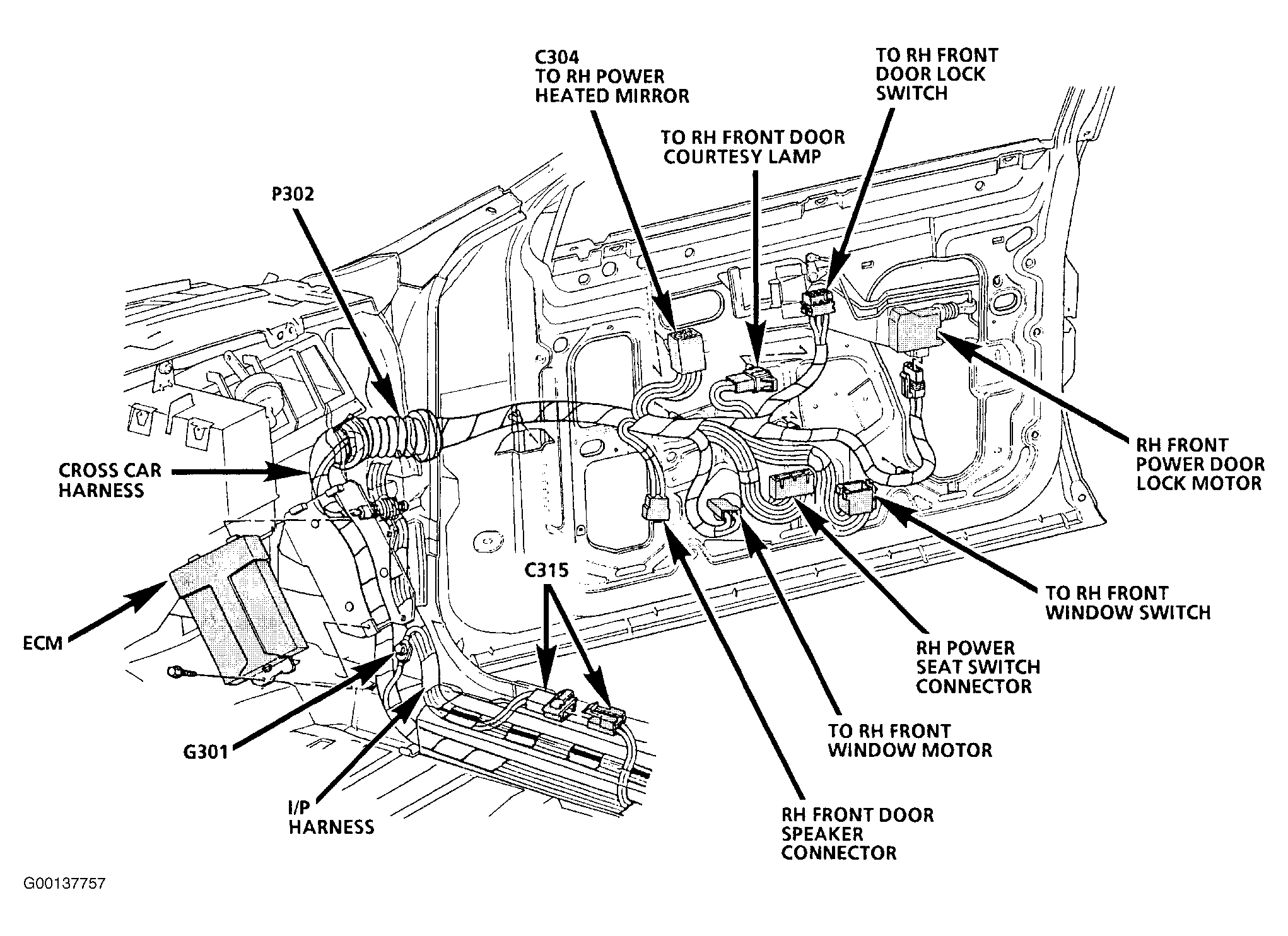

| G301 | Behind Right Kickpad, At Base Of Right "A" Pillar. See Fig 3 . |
| P302 | Between Right Front Door & "A" Pillar. See Fig 3 |

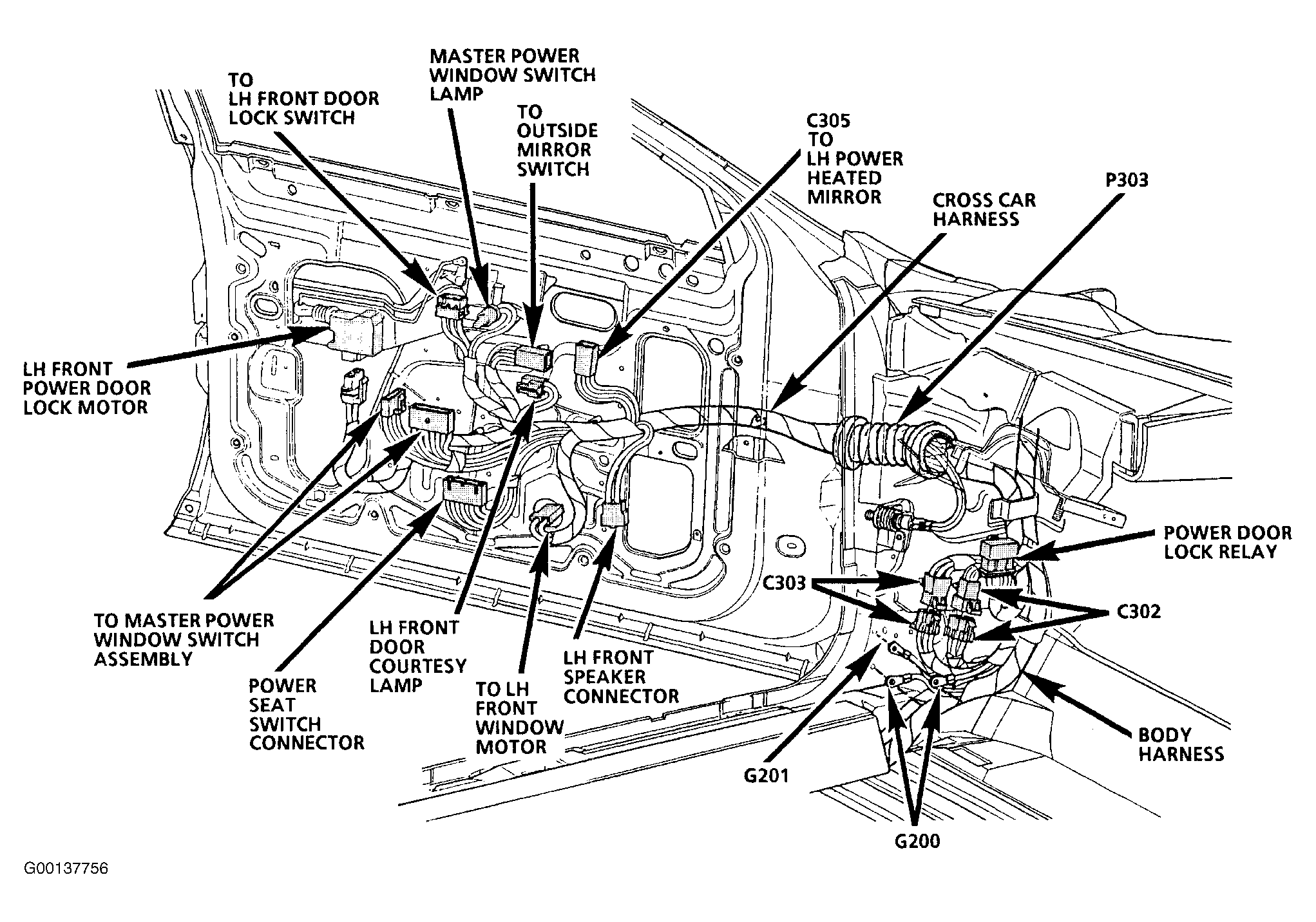

| P303 | Between Left Front Door & "A" Pillar. See Fig 2 . |
| S219 | Body Harness, Approximately 10 Inches (26 Cm.) From Grommet P102. |
| S300 | Cross Car Harness Approximately 6 Inches (16 Cm) From C302 Breakout. |
| S304 | Cross Car Harness, Approximately 3 Inches (8 Cm) From Power Door Lock Relay Breakout. |
