Removal (Convertible)

  1. Remove parking brake lever assembly with switch and release handle. See PARKING BRAKE LEVER ASSEMBLY  .
  2. Remove screws and autodown module from under instrument panel. See Fig 1 .
  3. Remove electrical connector from autodown module.

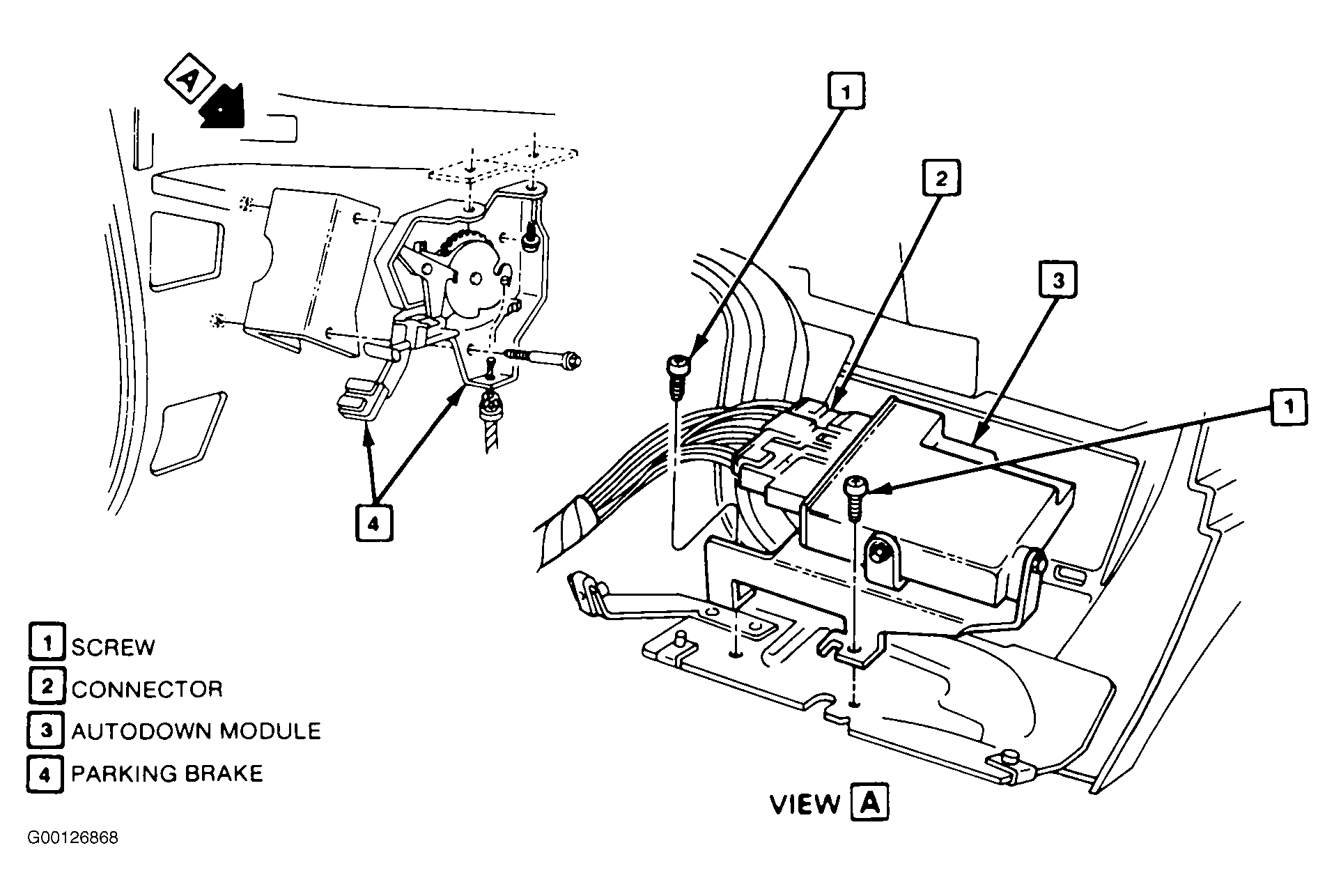

Fig 1: Removing Autodown Module (Convertible)
G00126868Courtesy of GENERAL MOTORS CORP.
