Body Control Module

Fig. 6 Control Servo Connector Pin Locations:



Fig. 7 BCM Connector Pin Locations:

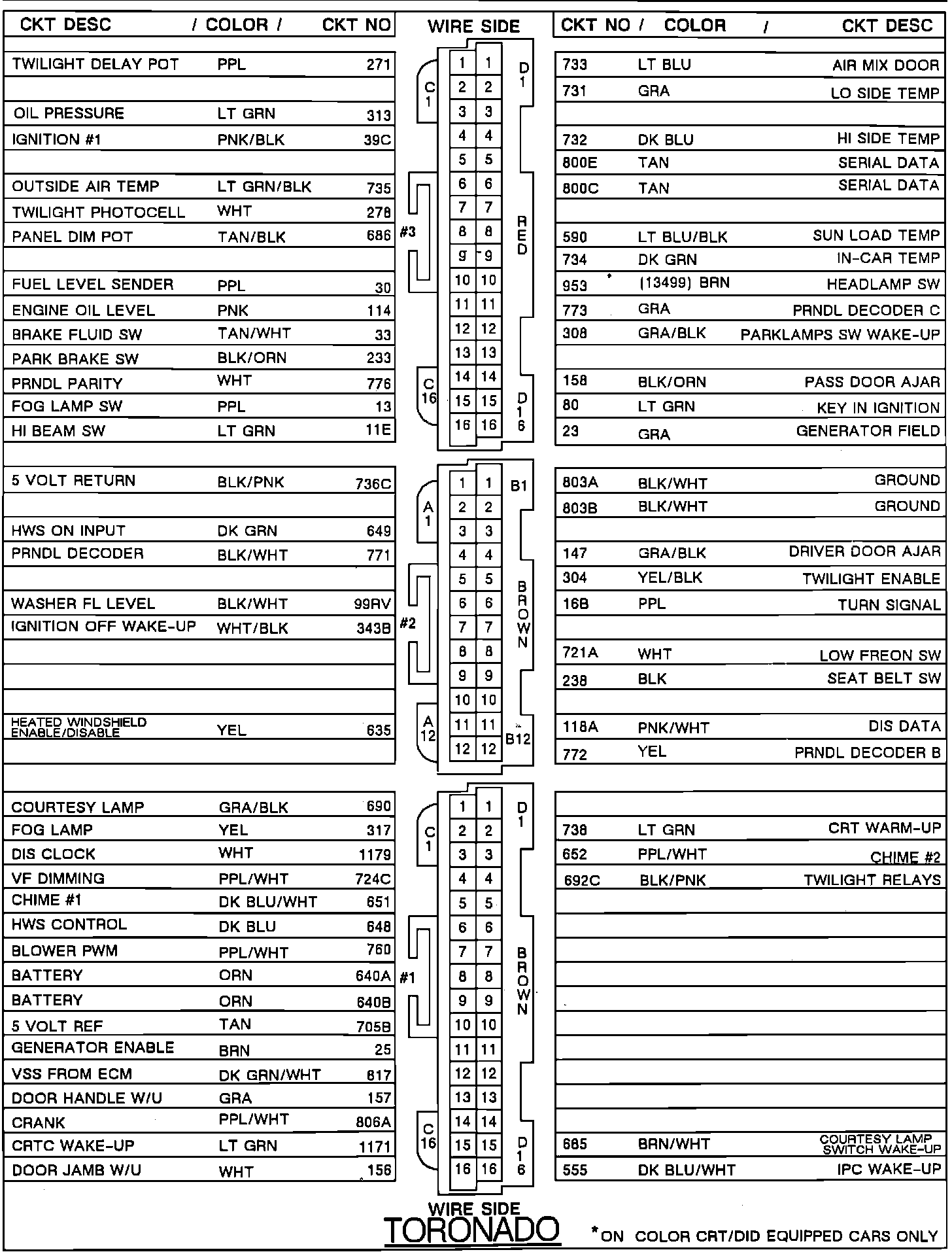

BCM Connector Side View:
