Chart 2: Left Front Window Does Not Operate

For test procedure, refer to illustration. See Fig 1 .

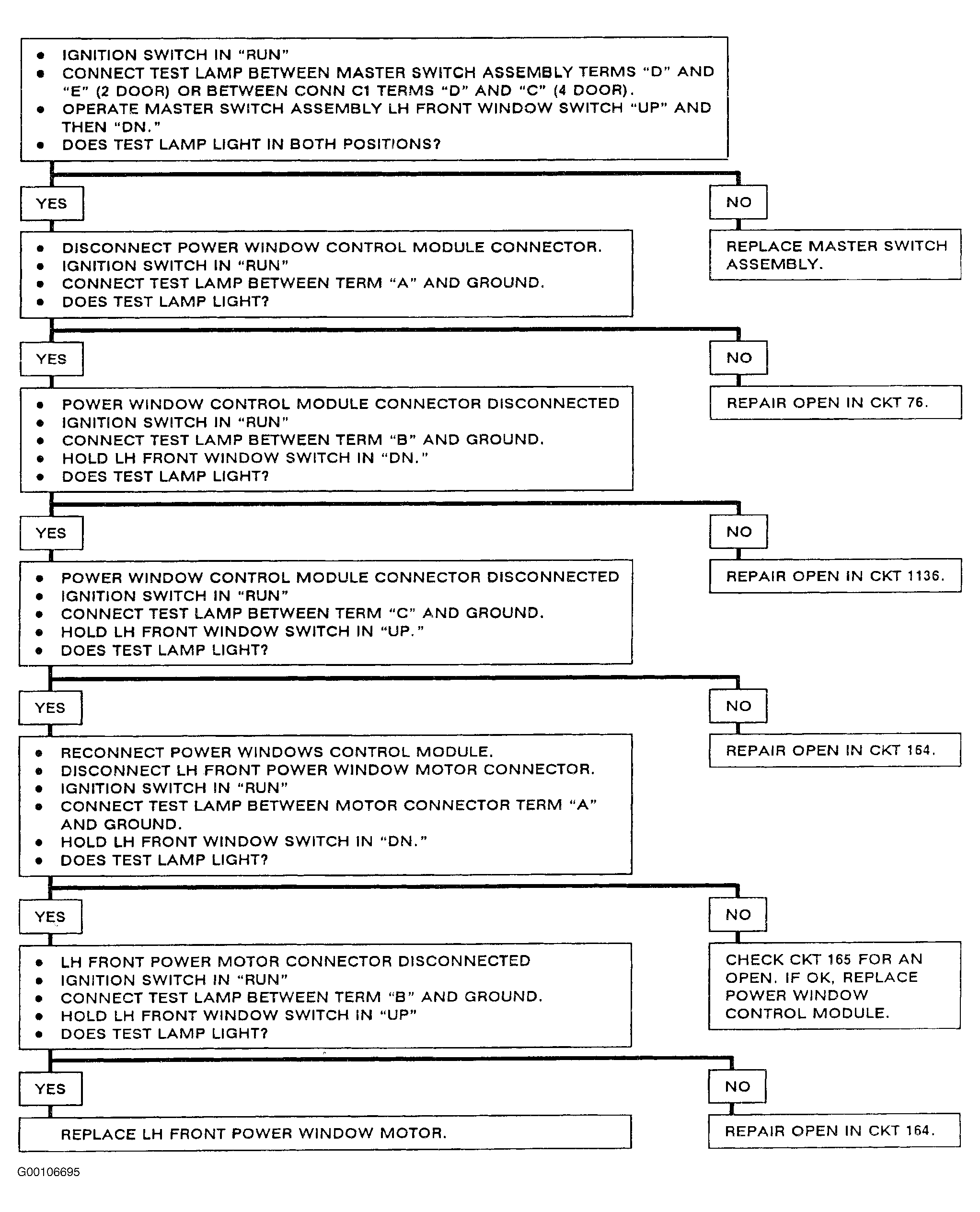

Fig 1: Chart 2: Left Front Window Does Not Operate
G00106695Courtesy of GENERAL MOTORS CORP.
