Wiring Diagrams

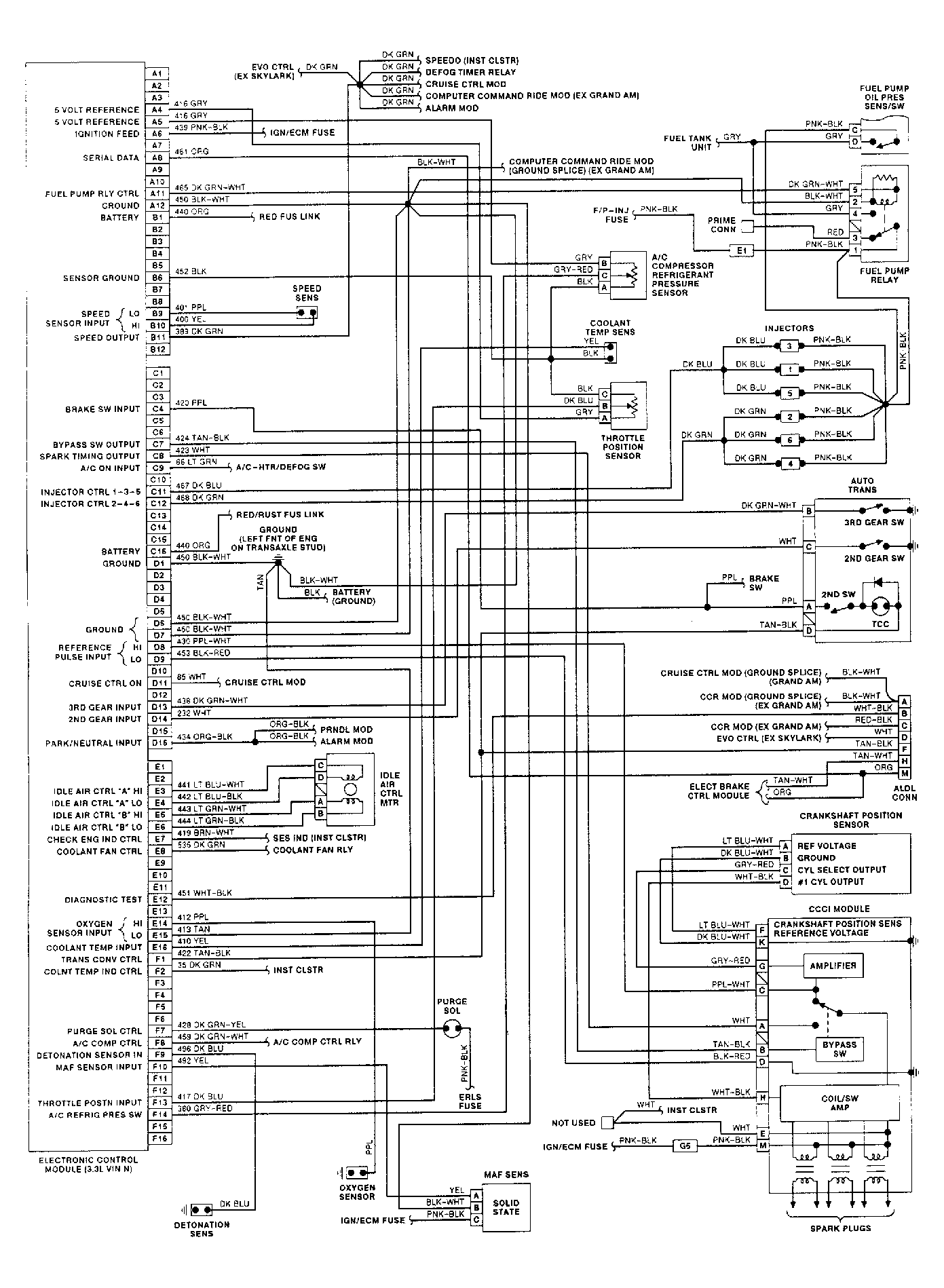

Fig 1: ECM Wiring Diagram, 2.3L VIN A, D, & 3 - Achieva & Grand Am

Courtesy of GENERAL MOTORS CORP.

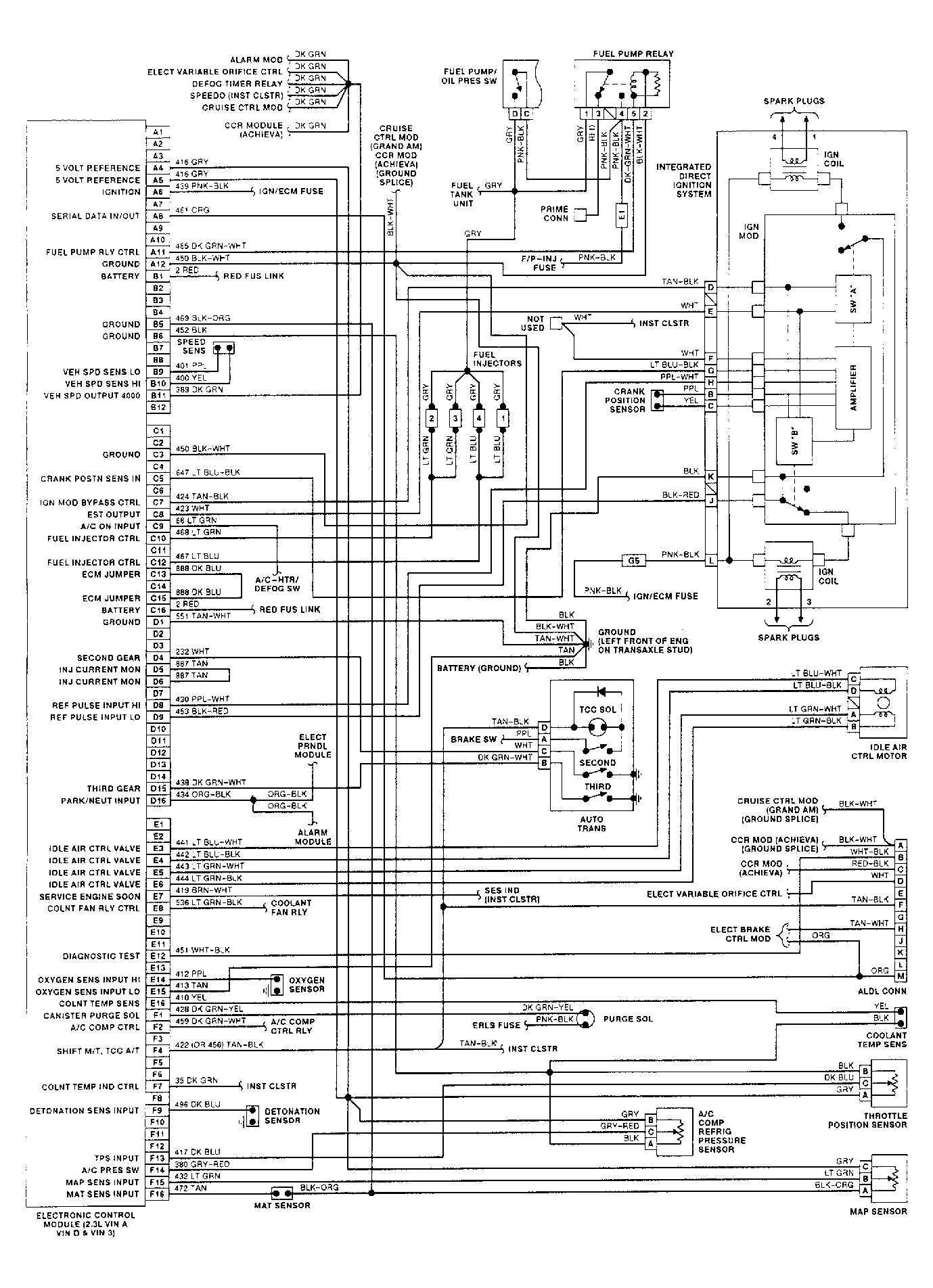

Fig 2: ECM Wiring Diagram, 2.3L VIN 3 - Skylark

Courtesy of GENERAL MOTORS CORP.

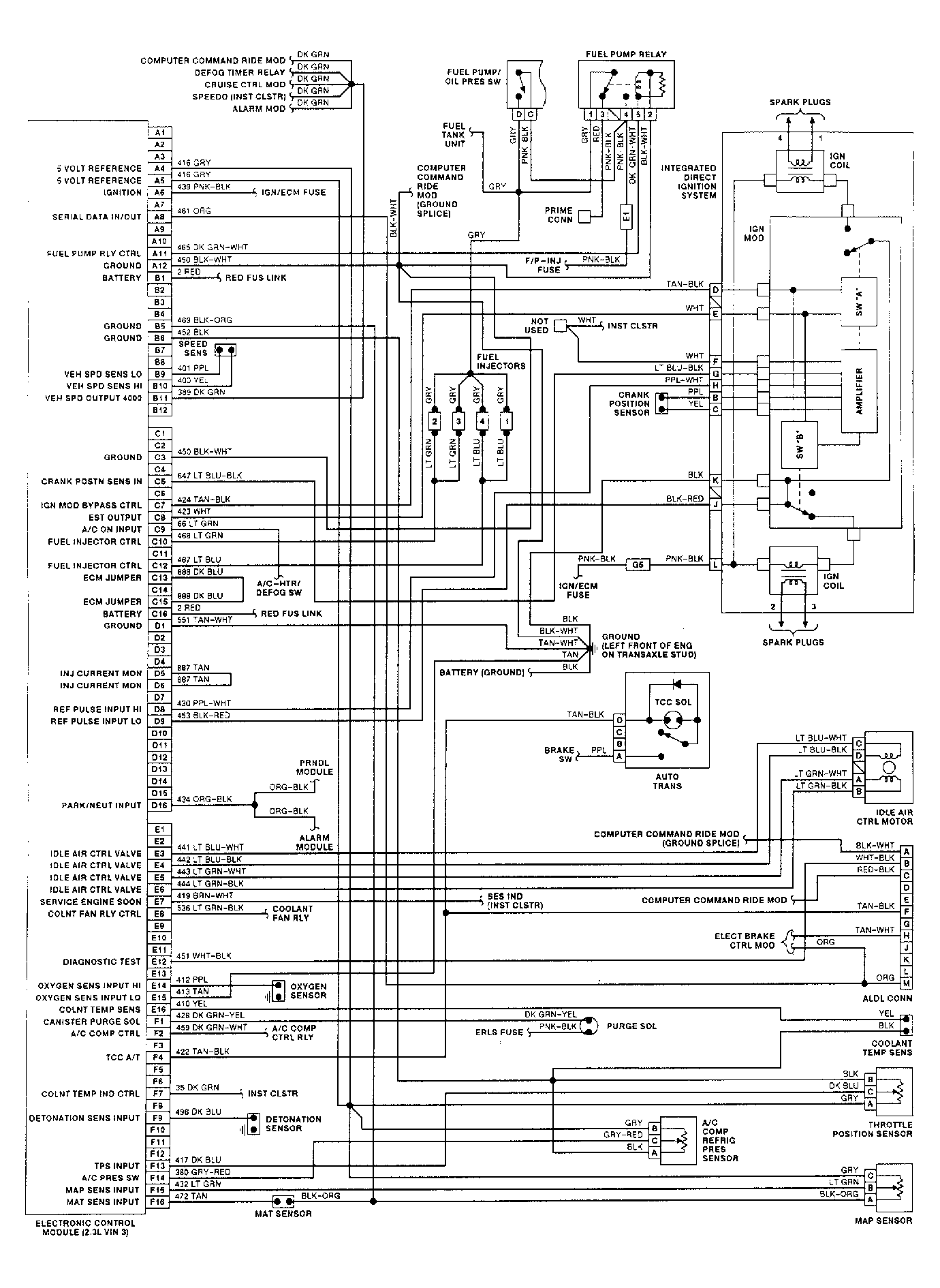

Fig 3: ECM Wiring Diagram, 3.3L VIN N - Achieva, Grand Am & Skylark

Courtesy of GENERAL MOTORS CORP.
