Electronic Brake Control Module (EBCM)

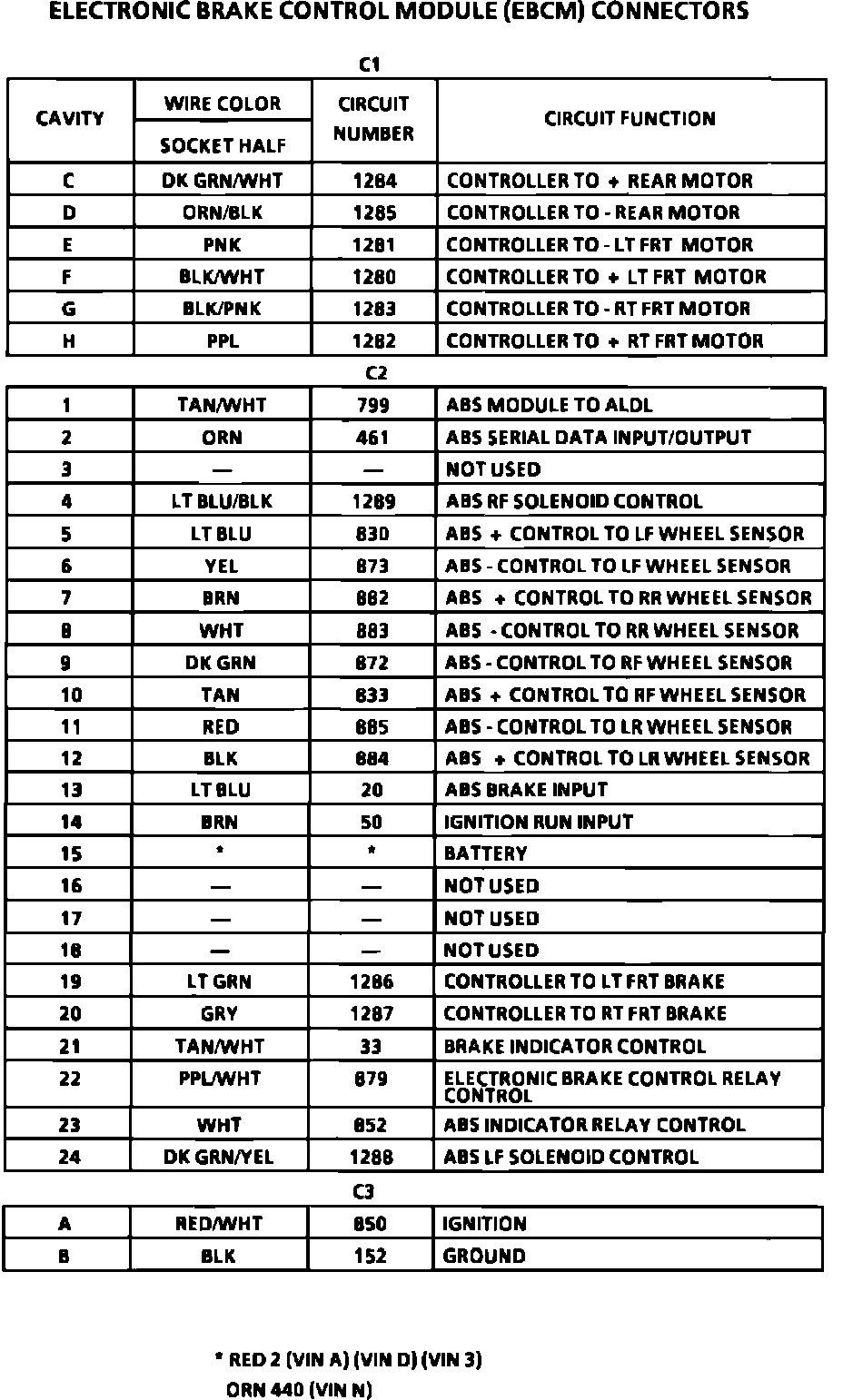

Electronic Brake Control Module (EBCM) Connector Face:

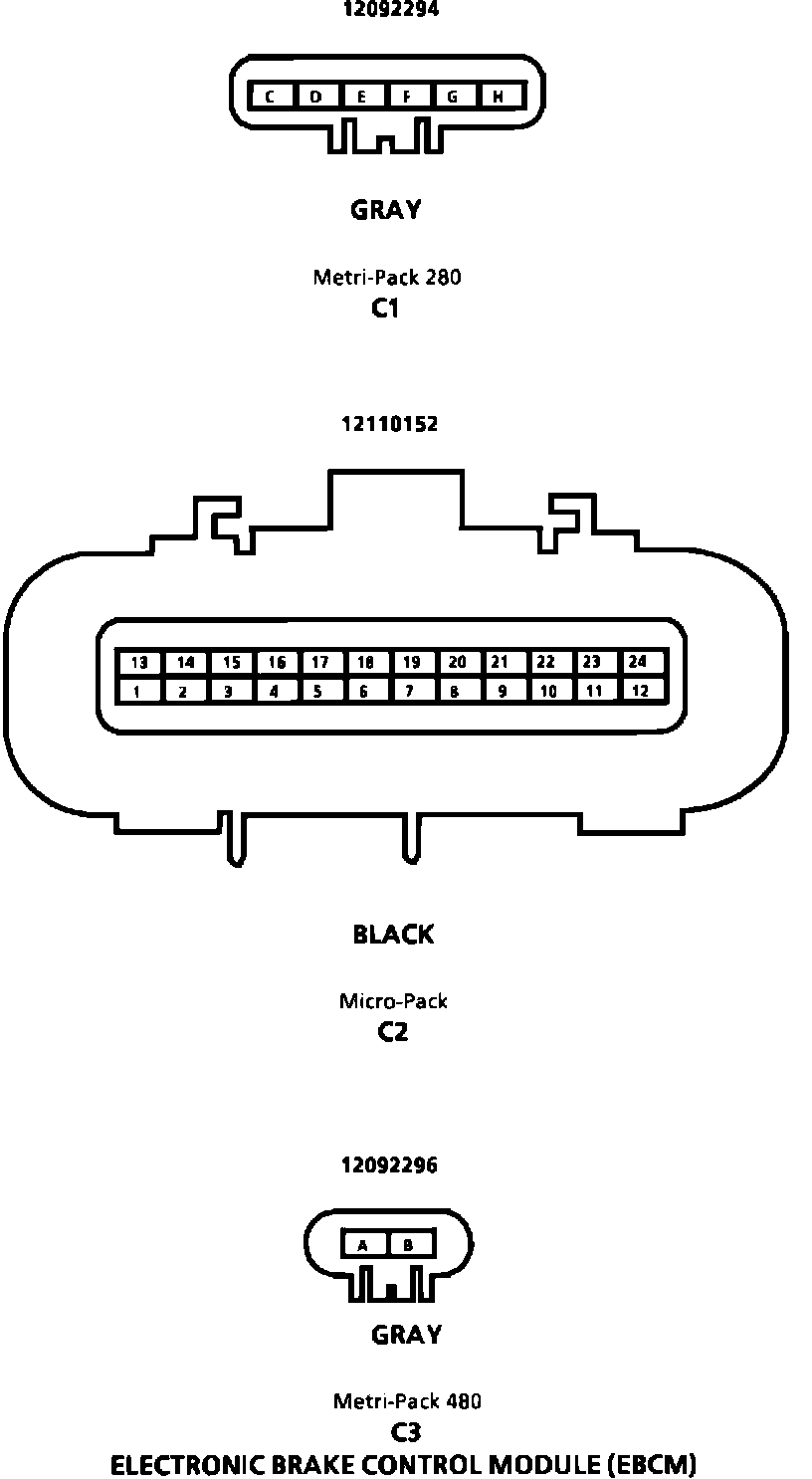

Electronic Brake Control Module (EBCM) Connector Face:
