Test B: Right Front Power Window Does Not Operate From Either Switch & Left Front Power Window Operates

For testing procedure, see Fig 1 .

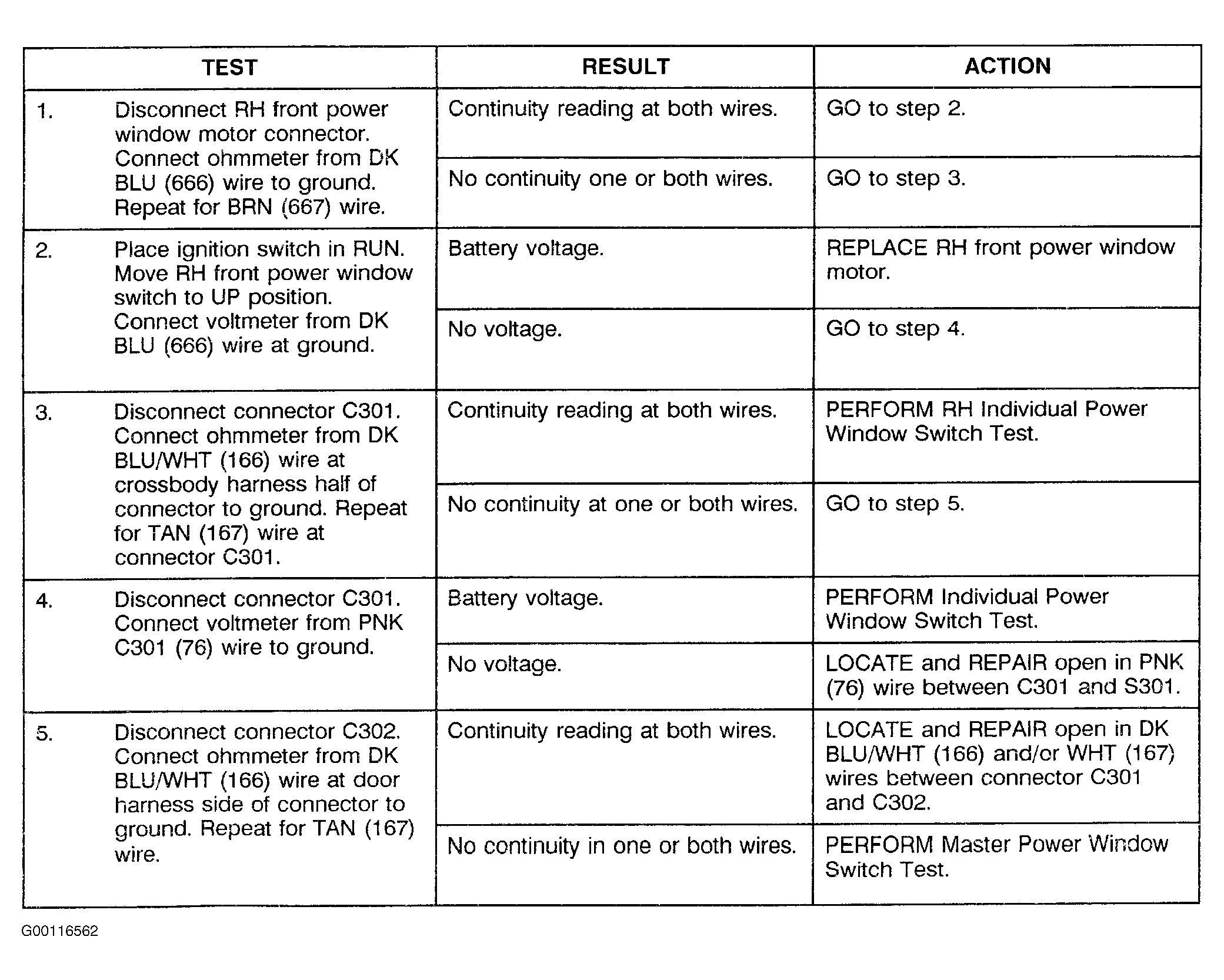

Fig 1: Test B: Right Front Power Window Does Not Operate From Either Switch, Left Front Power Window Operates
G00116562Courtesy of GENERAL MOTORS CORP.
