Test E: Left Front Power Window Does Not Operate, All Other Power Windows Operate
For testing procedure, see
Fig 1
.

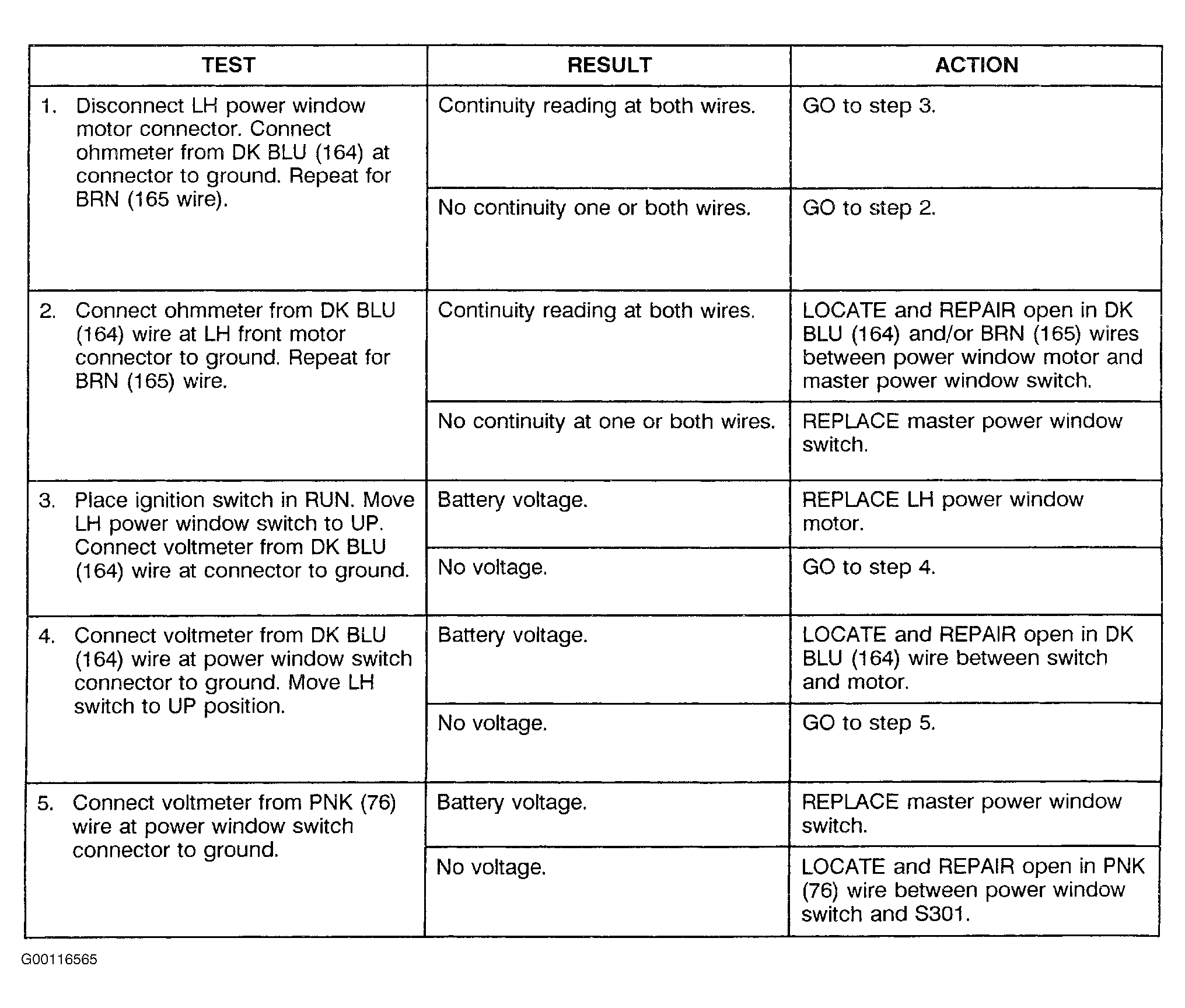

Fig 1: Left Front Power Window Does Not Operate, All Other Power Windows Operate
Courtesy of GENERAL MOTORS CORP.
