Test B: Left Master Switch Assembly Test

To perform test, see Fig 1 .

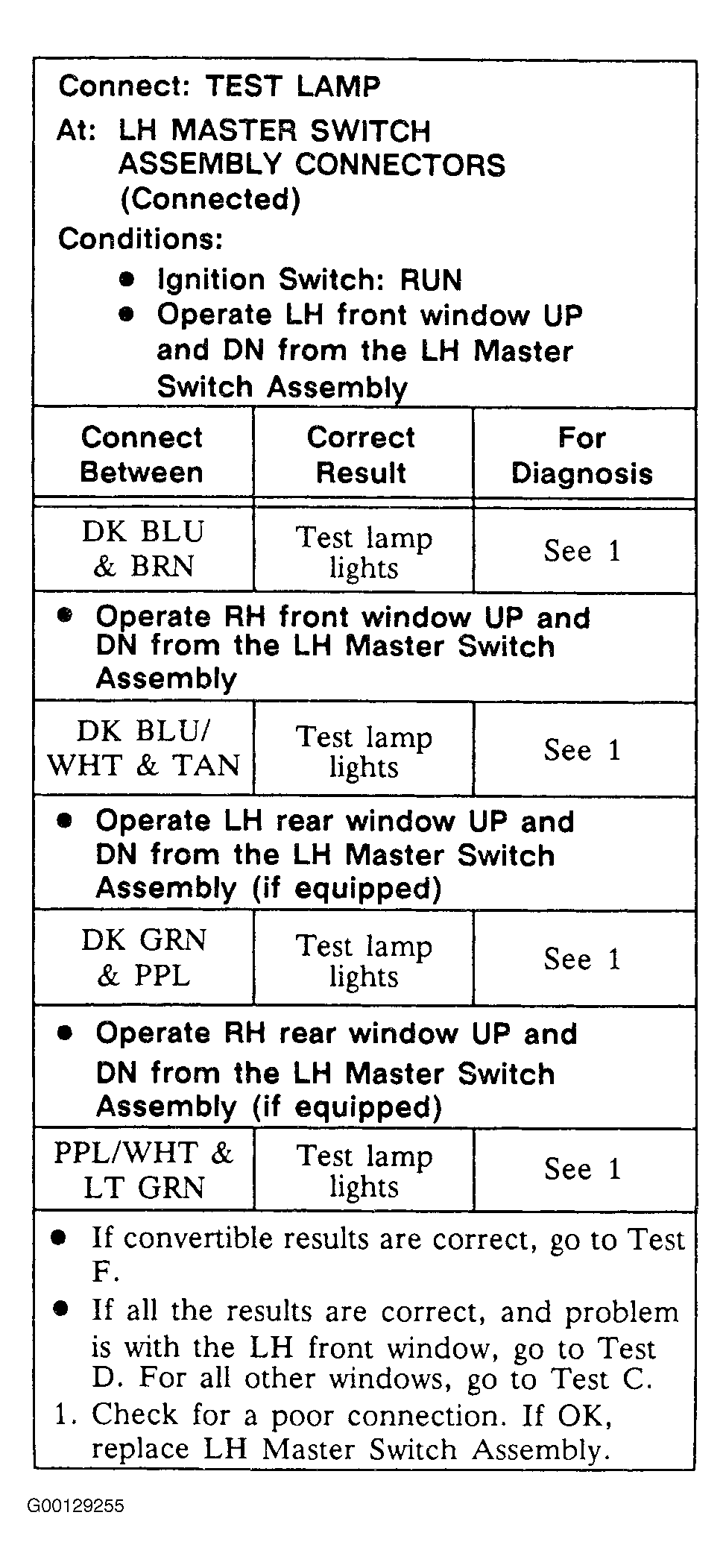

Fig 1: Test B: Left Master Switch Assembly Test
G00129255Courtesy of GENERAL MOTORS CORP.
