Test F: All Window Automatic Down (AWAD) Module Test (Convertible Only)

To perform test, see Fig 1 .

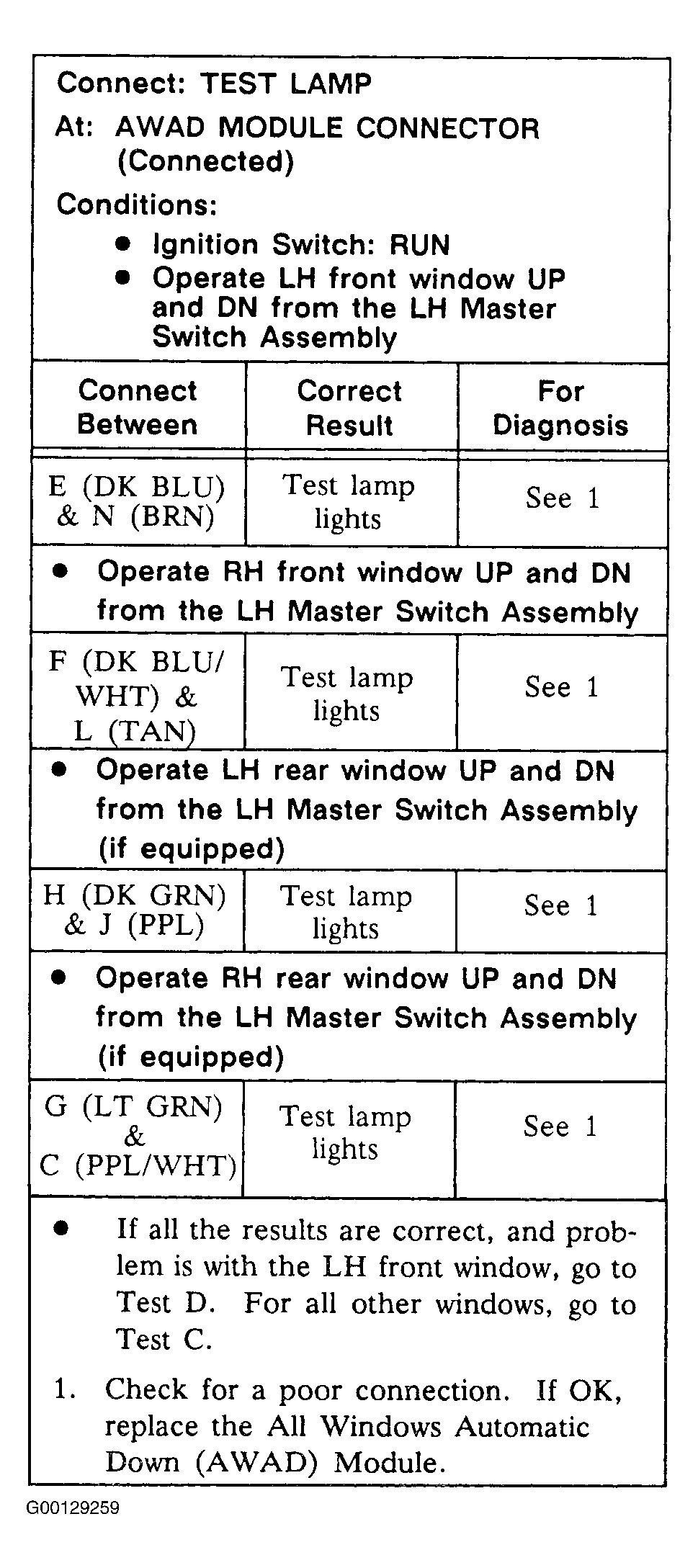

Fig 1: Test F: All Window Automatic Down Module Test (Convertible Only)

Courtesy of GENERAL MOTORS CORP.
