Component Location
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Express Down Window Module | Center Of Left Front Door. See Fig 1 |

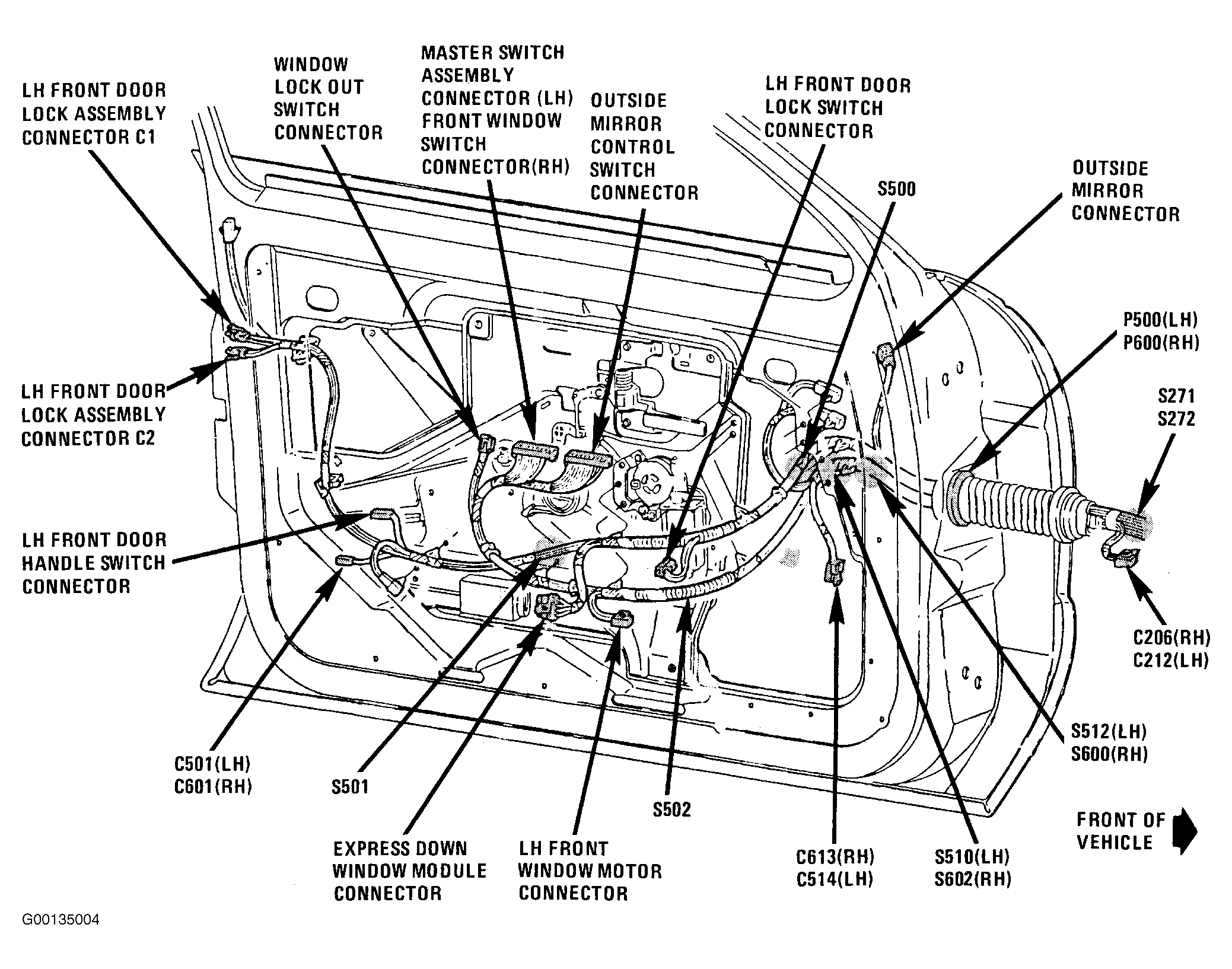

| Front Window Motors | In Lower Front Portion Of Respective Front Doors. See Fig 1 |

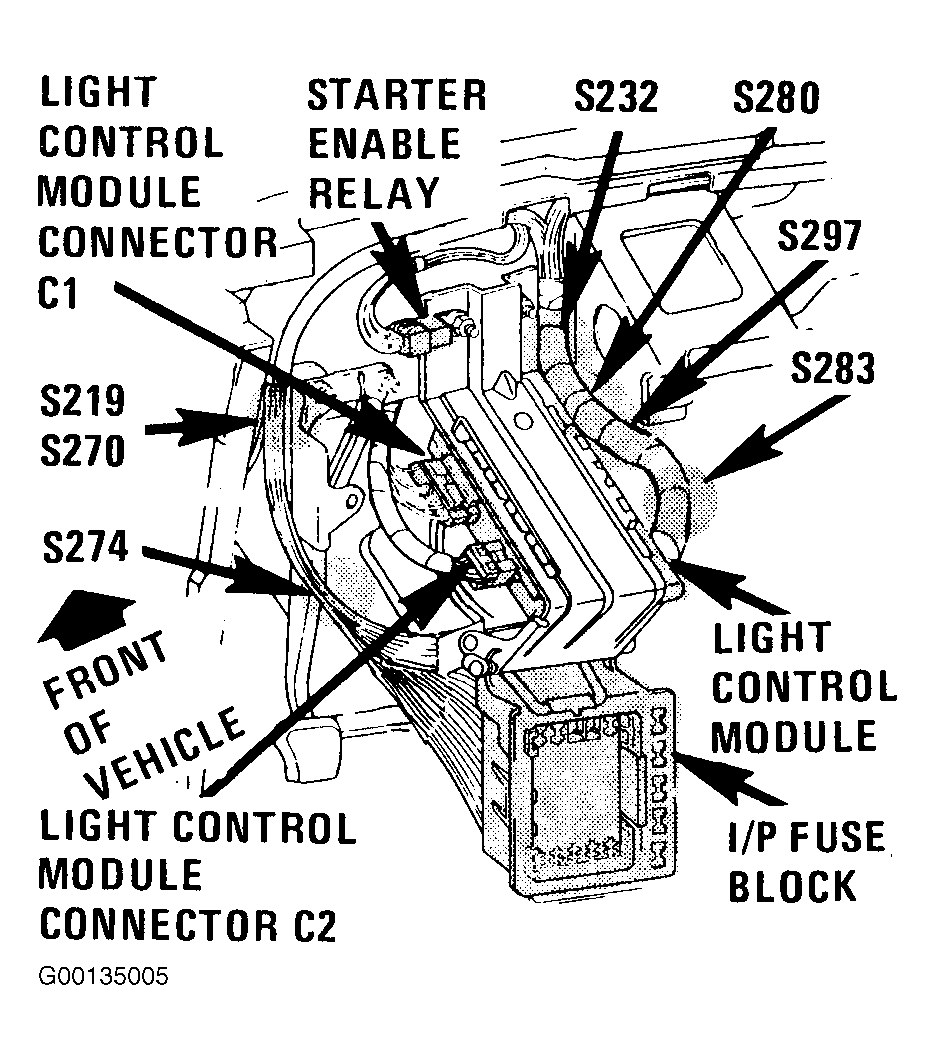

| Instrument Panel Fuse Block | Behind Left Side Of Instrument Panel, Behind Trim Panel. See Fig 2 |
| Master Switch Assembly | Lower Rear Of Left Front Door. See Fig 1 |

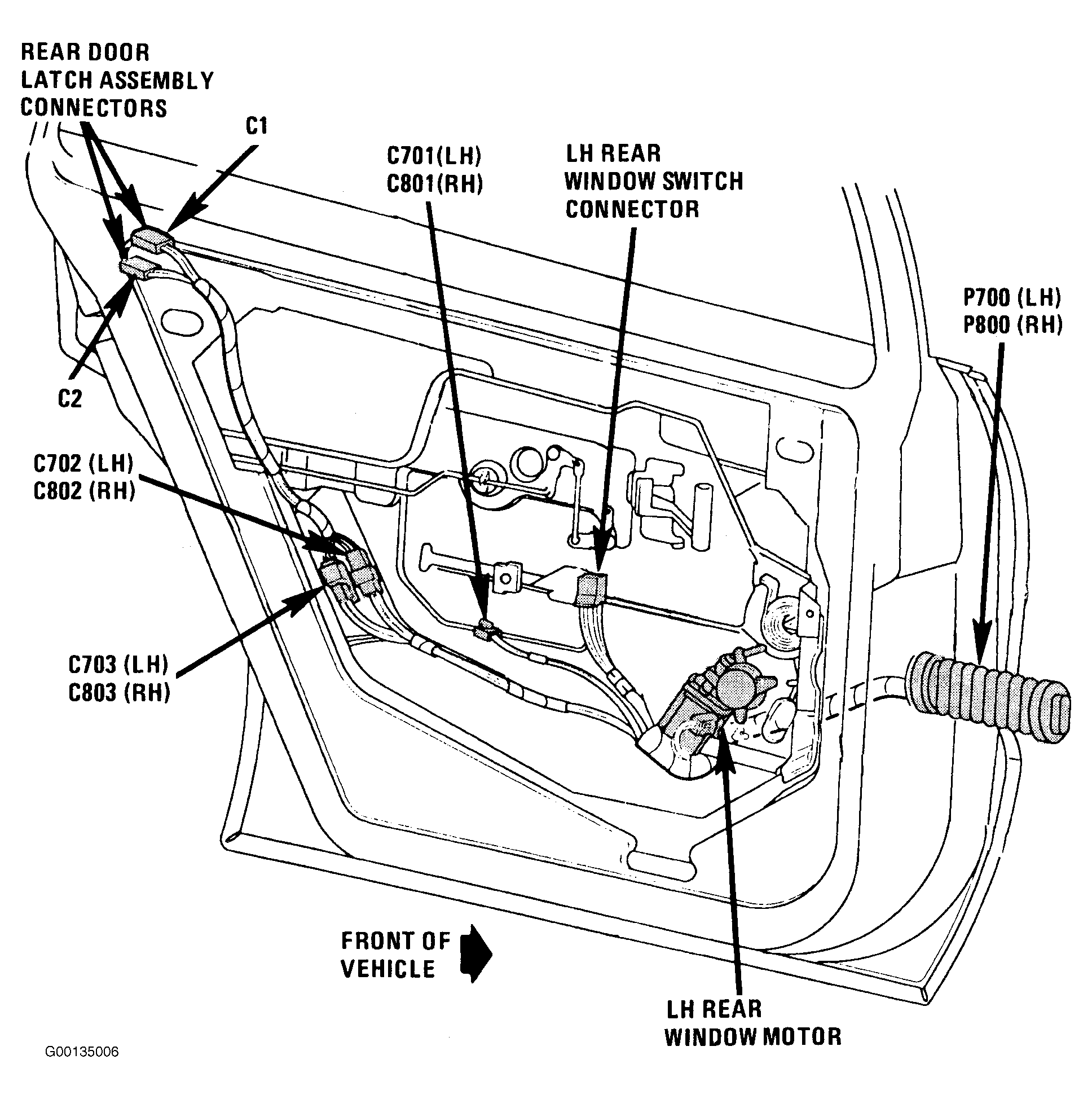

| Rear Window Motors | In Lower Front Portion Of Respective Rear Doors. See Fig 3 |
| Window Lock Out Switch | Lower Rear Of Left Front Door. See Fig 1 |

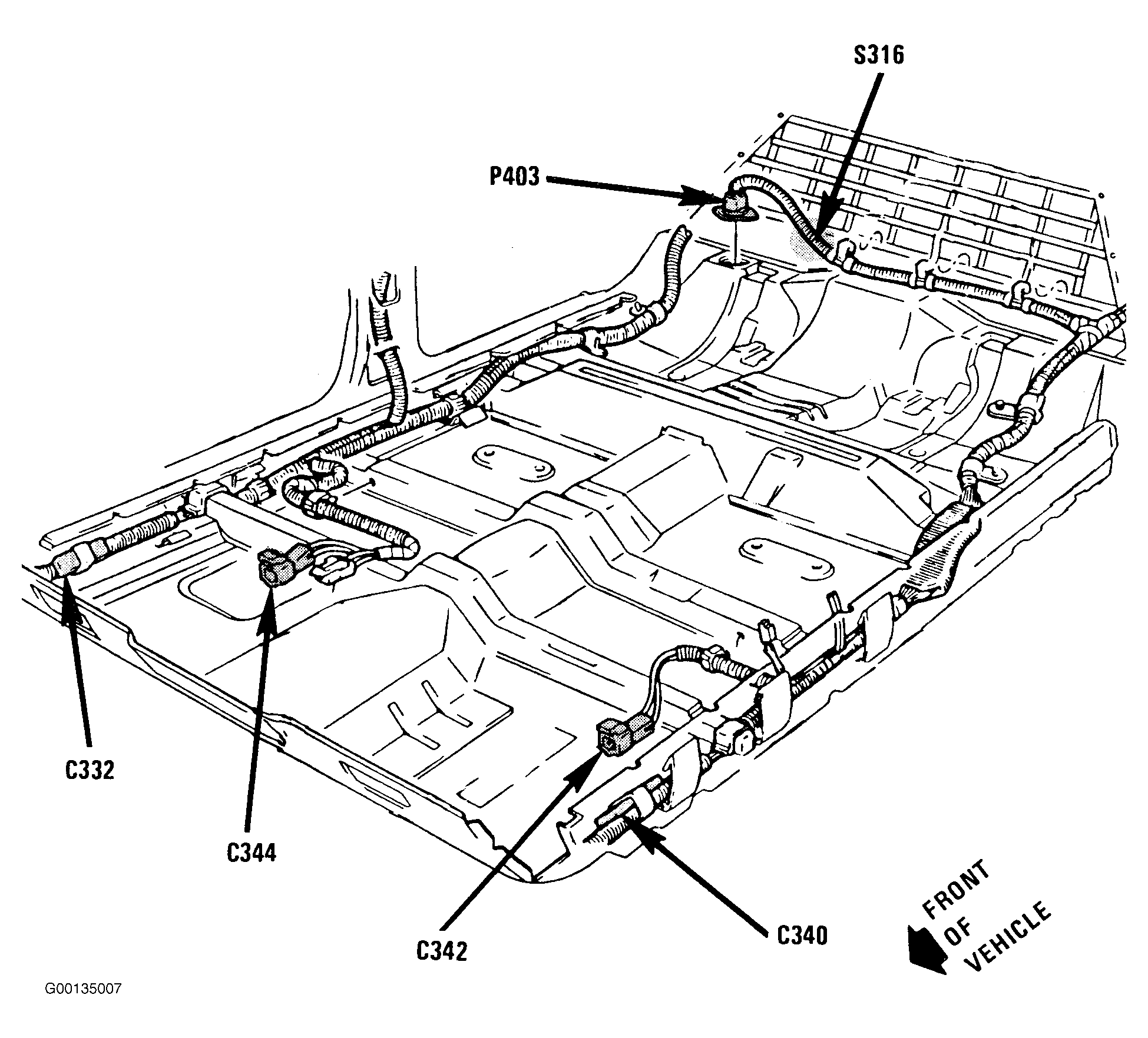

| C340 (10 cavities) | Left Front Door Sill, Taped To Composite Harness. See Fig 4 |

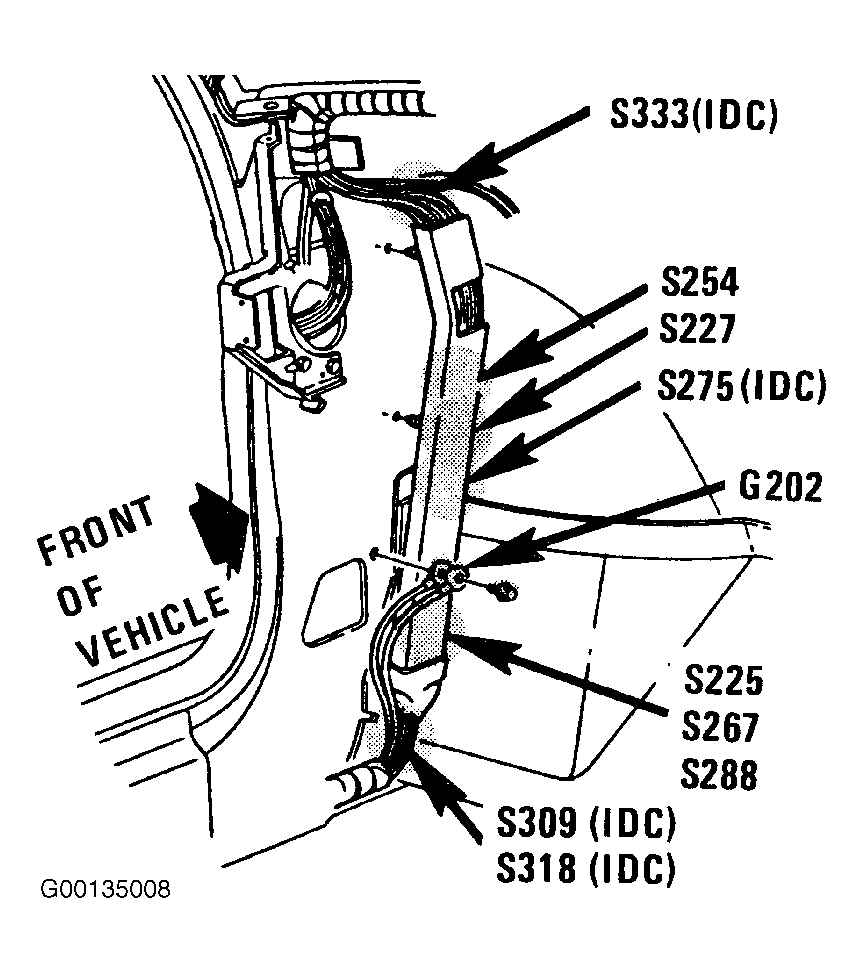

| G202 | Middle Of Left Shroud. See Fig 5 |
| P500 | Front Of Left Front Door. See Fig 1 |
| P600 | Front Of Right Front Door. See Fig 1 |
| P700 | Front Of Left Rear Door. See Fig 3 |
| P800 | Front Of Right Rear Door. See Fig 3 |
| S225 | Composite Harness, Bottom Of Left Shroud. See Fig 5 |

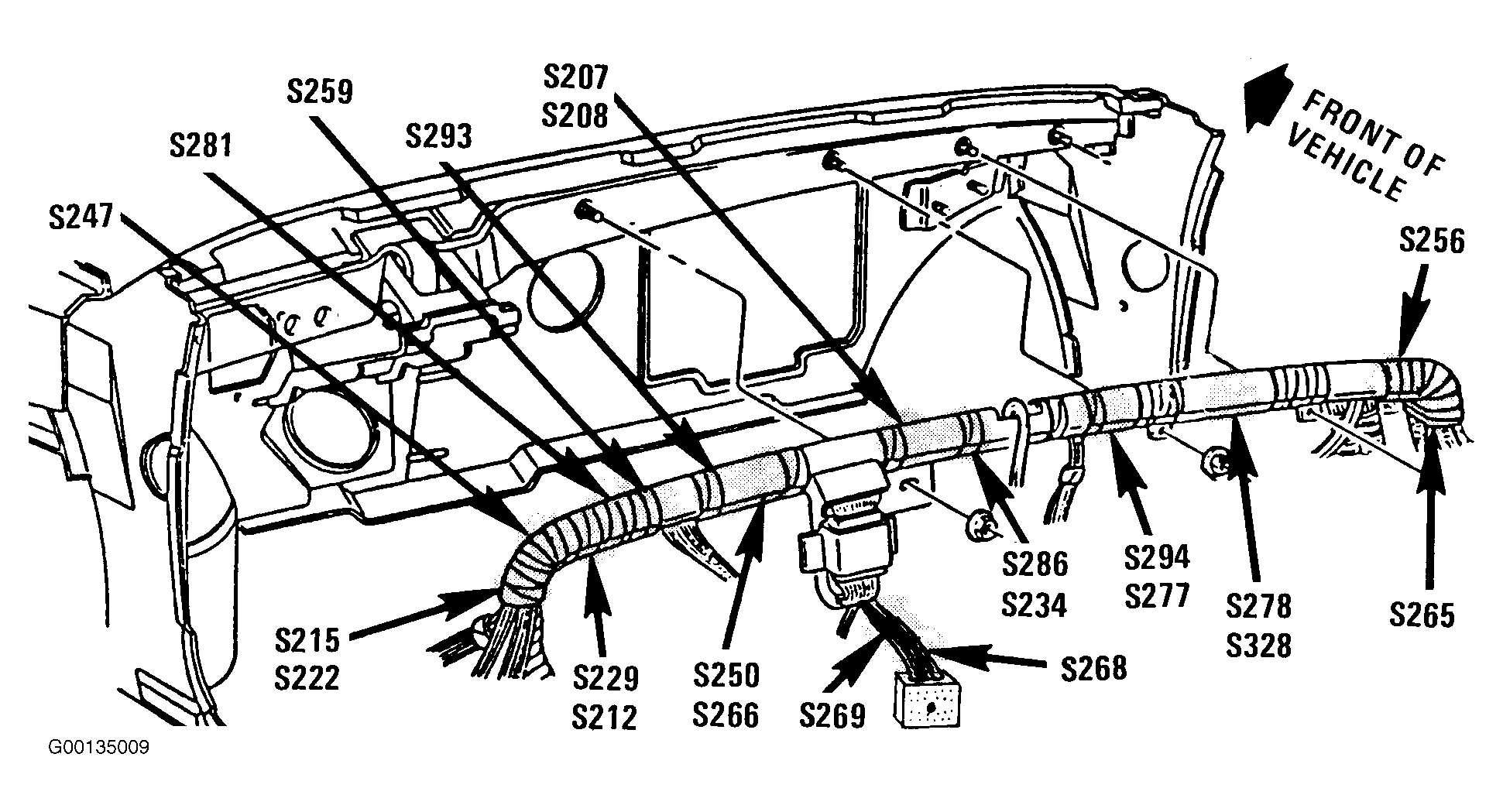

| S247 | Composite Harness, Behind Of Left Side Of Instrument Panel. See Fig 6 |
| S288 | Composite Harness, Bottom Of Left Shroud. See Fig 5 |
| S500 | Composite Harness, Front Portion Of Left Front Door. See Fig 1 |
| S502 | Composite Harness, Center Portion Of Left Front Door. See Fig 1 |
