Express Down Module: Removal

  1. Disconnect negative battery cable.
  2. Remove trim panel. See TRIM PANEL  .
  3. Remove water deflector. See WATER DEFLECTOR  .
  4. Depress tang and slide tabs out of keyhole slots. See Fig 1 .
  5. Disconnect electrical connector.
  6. Remove module.

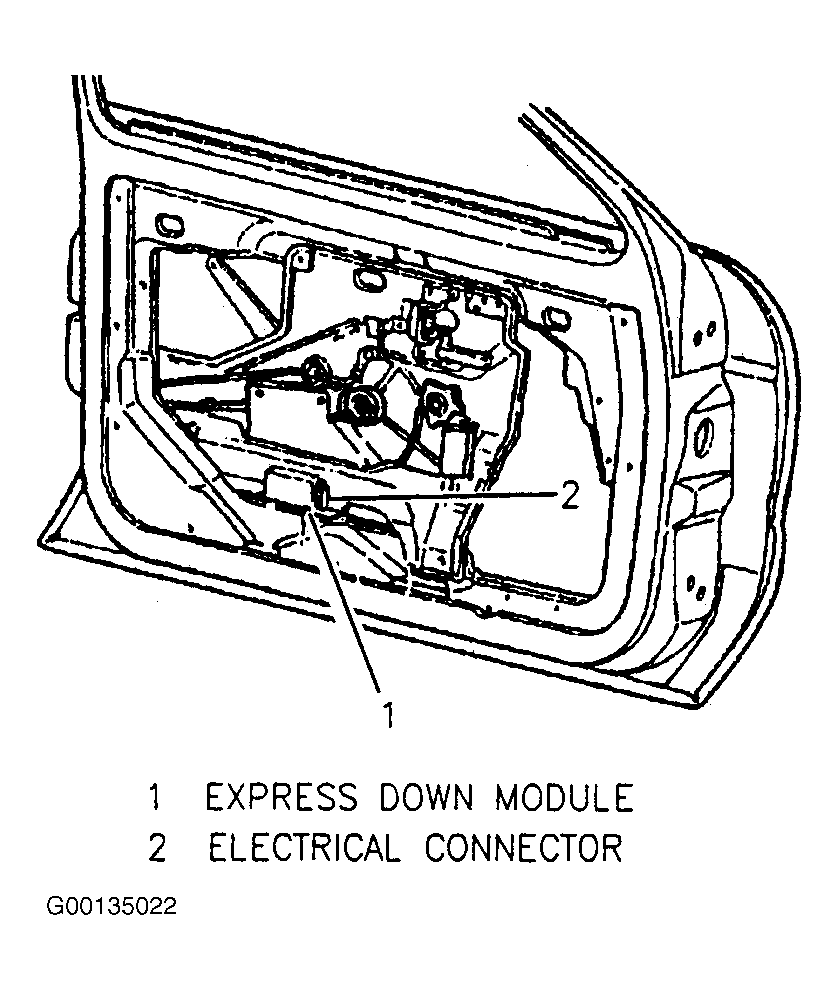

Fig 1: Removing Express Down Module
G00135022Courtesy of GENERAL MOTORS CORP.
