Test B: Master Switch Assembly

To perform the following test, see Fig 1 .

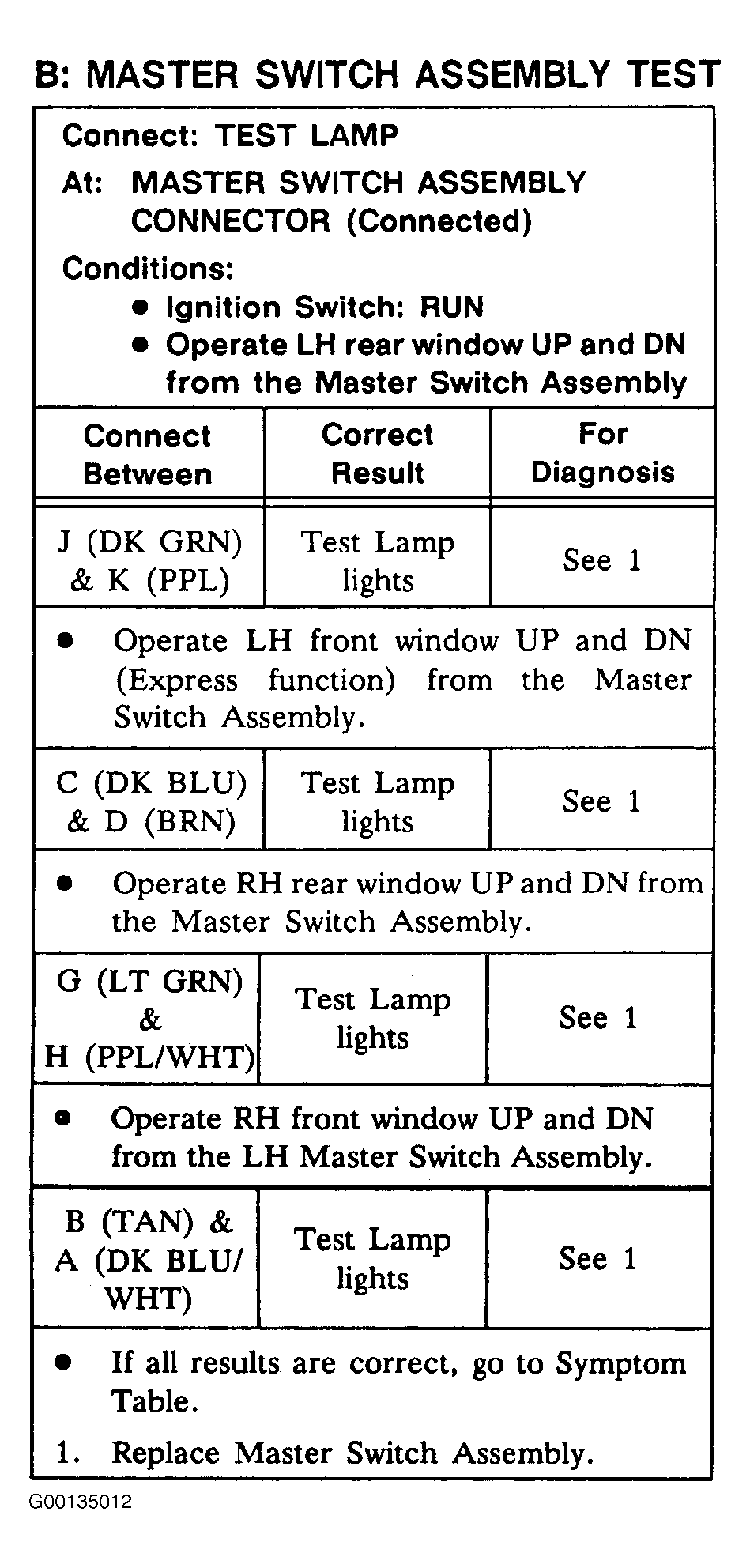

Fig 1: Test B: Master Switch Assembly
G00135012Courtesy of GENERAL MOTORS CORP.
