Test D: Window Switch
To perform the following test, see
Fig 1
.

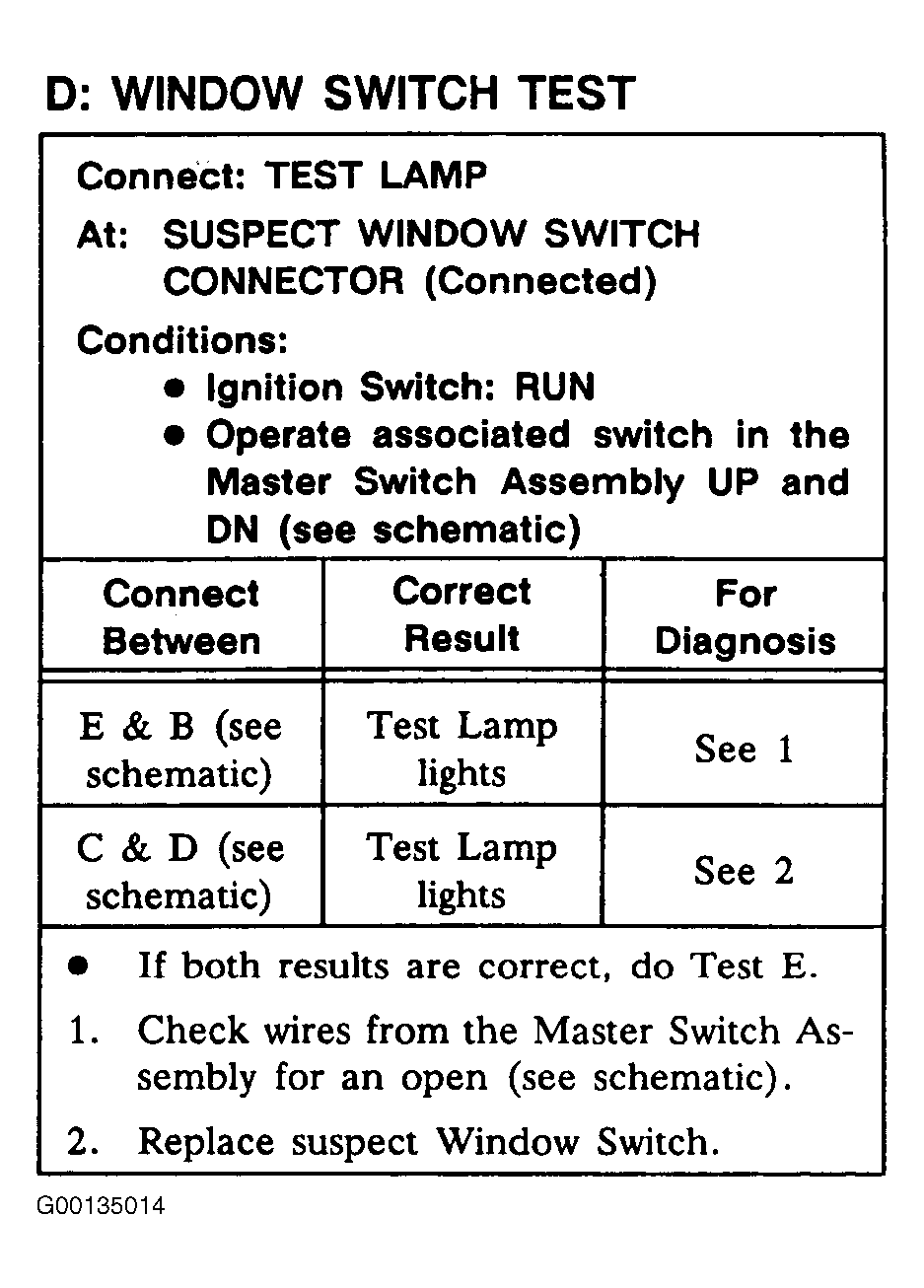

Fig 1: Test D: Window Switch
Courtesy of GENERAL MOTORS CORP.
