Test F: Window Switch Power

To perform the following test, see Fig 1 .

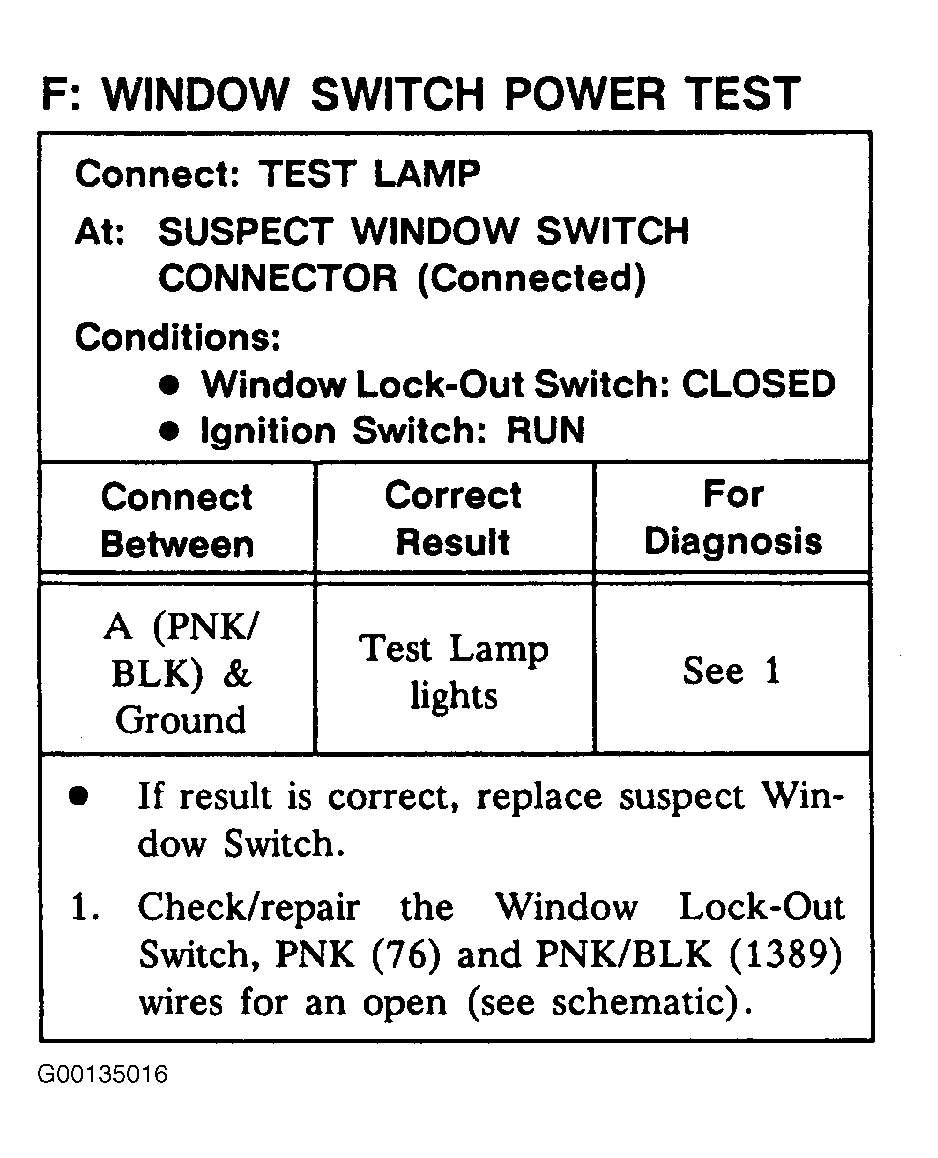

Fig 1: Test F: Window Switch Power
G00135016Courtesy of GENERAL MOTORS CORP.
