Test B: Power & Ground

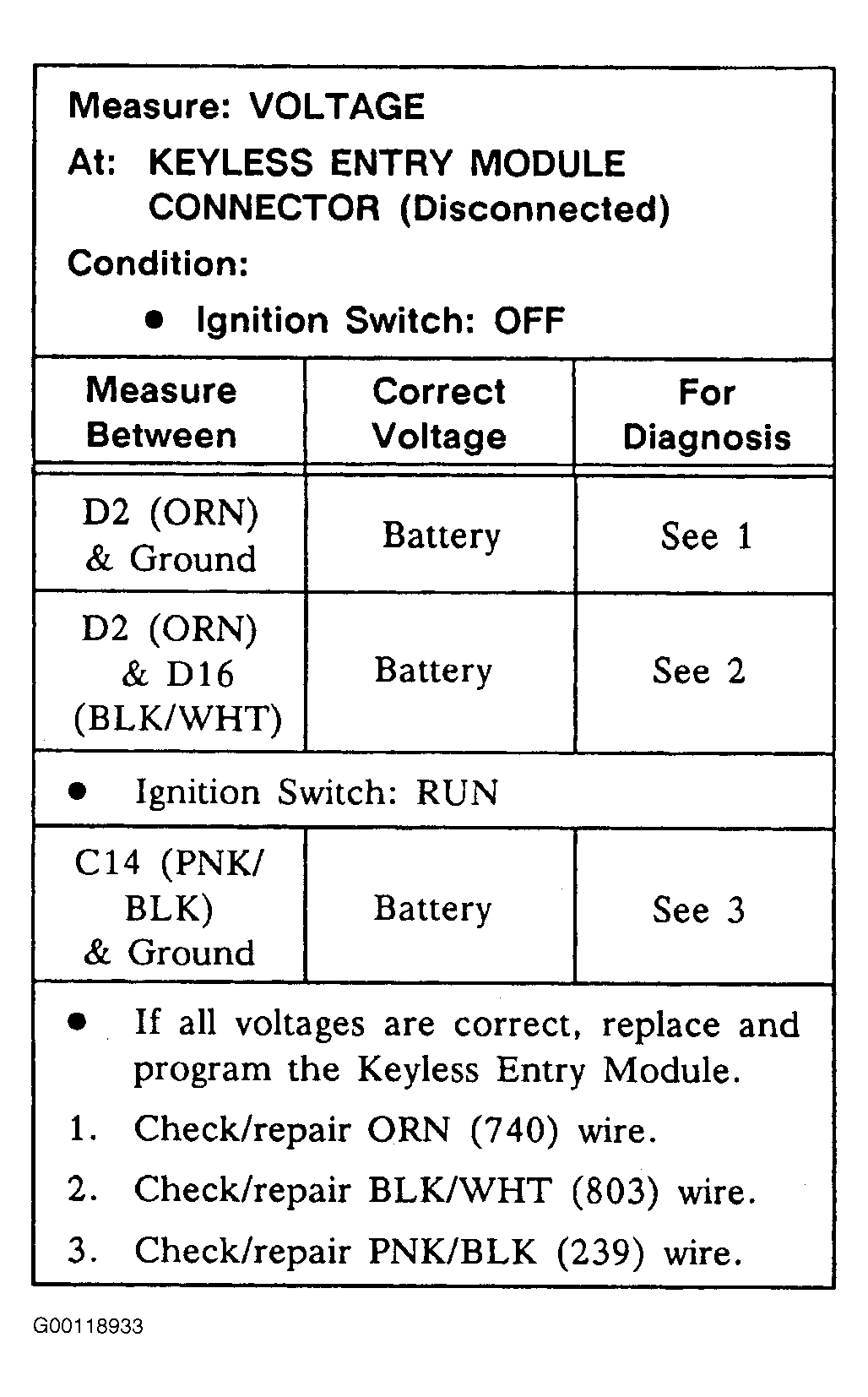

Fig 1: Test B: Power & Ground
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
