Trim Panel: Installation

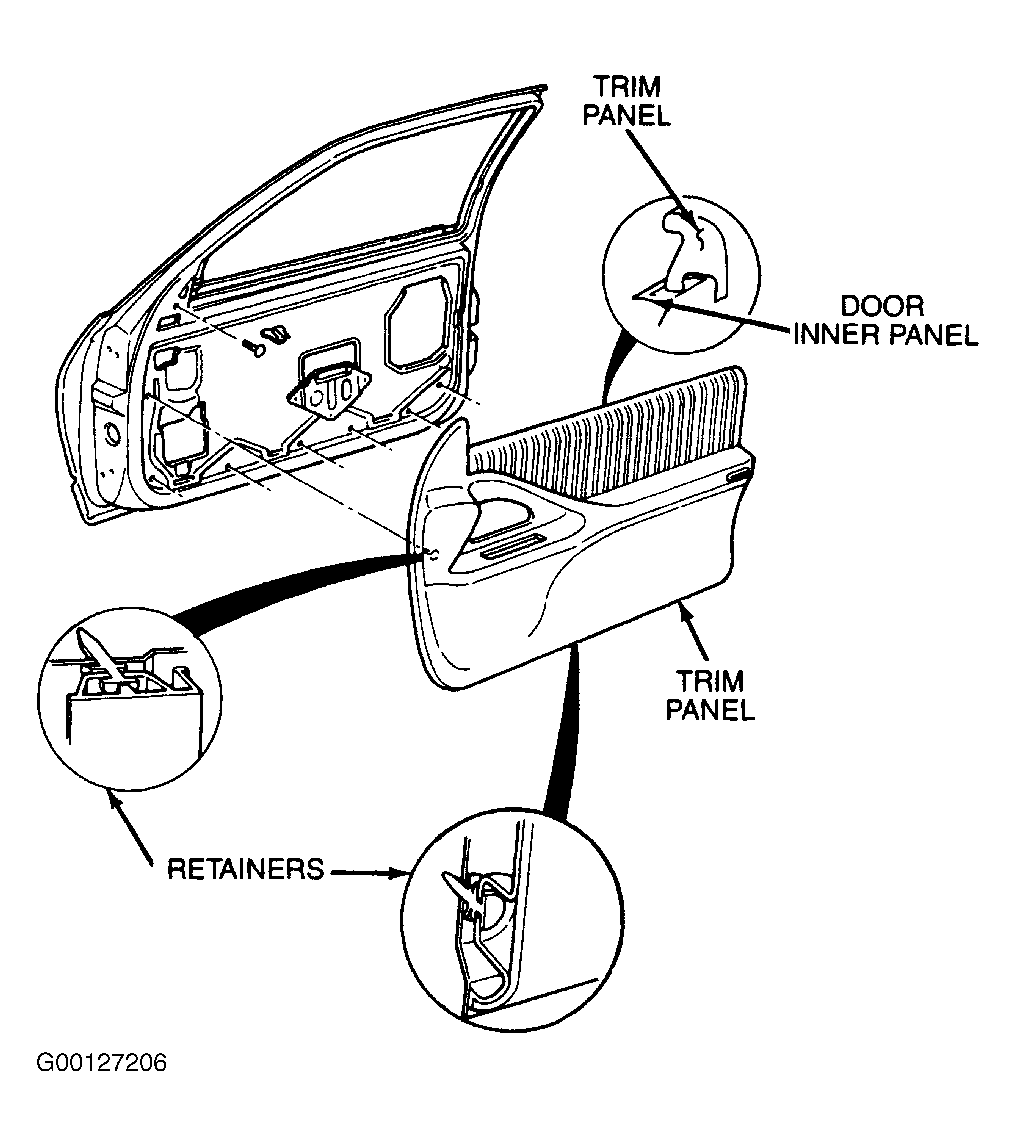

- Position trim panel close to door. See Fig 1 .
- Install electrical connectors.
- Pull harness through inside handle opening and also at switch plate opening.
- Slide panel engaging at top and align retainers around door to their respective holes.
- Press in on trim panel to secure.
- Install switch plate for window and seat adjuster. See SWITCH PLATE - POWER WINDOWS/SEATS/OUTSIDE MIRROR .
- Install inside handle bezel. See INSIDE HANDLE BEZEL .
