Water Deflector: Installation

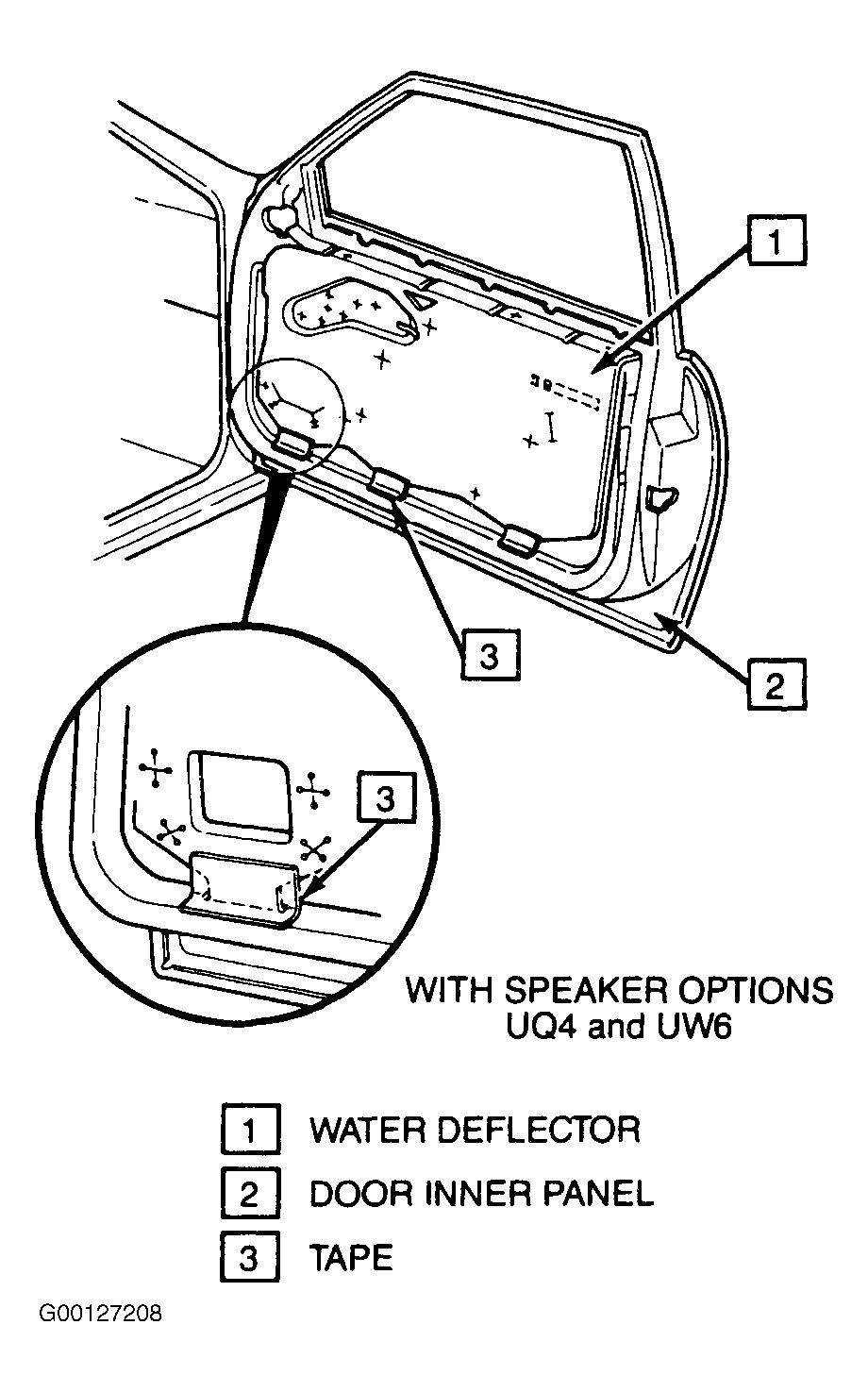

- Position deflector (1) to door inner panel (2). See Fig 1
.
- Align three upper holes in deflector with holes in door panel.
- Hand slick upper part of deflector in place.
- Pull wiring harness connectors through their respective holes or slits in deflector.
- Hand slick remainder of deflector to inner door panel working downward.
- Insert tabs on lower edge of deflector into retaining slots.
- Apply three pieces of tape (3) to bottom of deflector as shown.
- Install electrical connector and speaker.
- Install inner belt sealing strip and trim panel. See TRIM PANEL
.
