Window Regulator: Installation

  1. Install regulator to door inner panel. See Fig 1 .
  2. Install wire connector.
  3. Install rivets using 1/4" x 5/8" peel type rivets.
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install trim panel. See TRIM PANEL  .

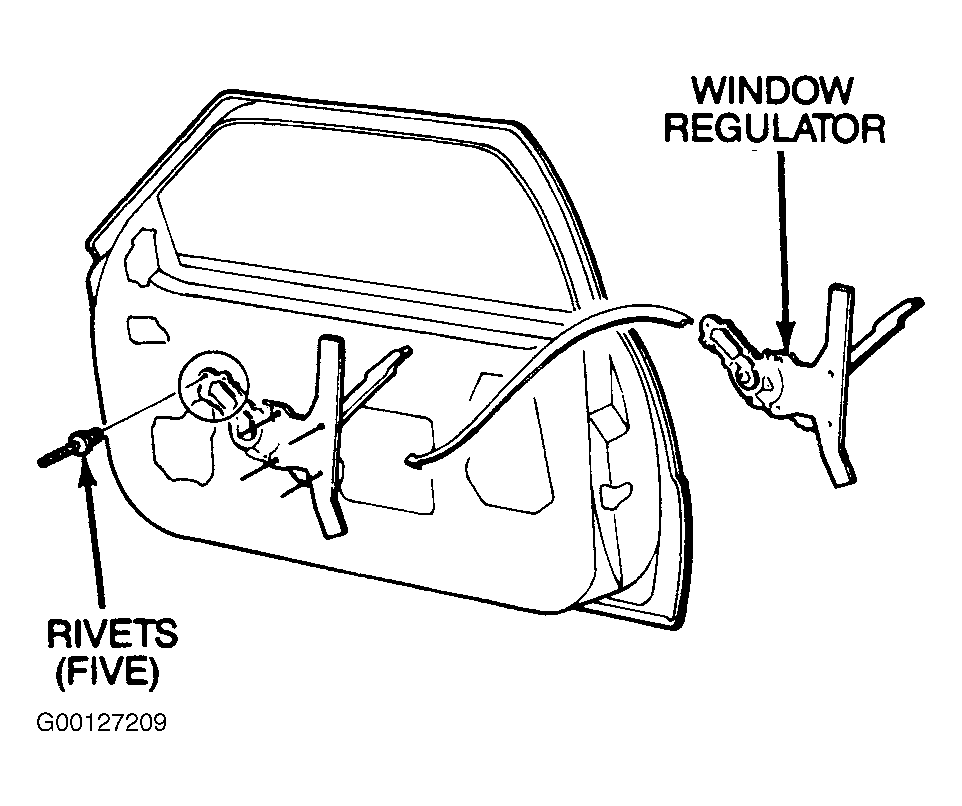

Fig 1: Identifying Door Window Regulator
G00127209Courtesy of GENERAL MOTORS CORP.
