Test A: Window Power & Ground Test

For testing procedure, see Fig 1 .

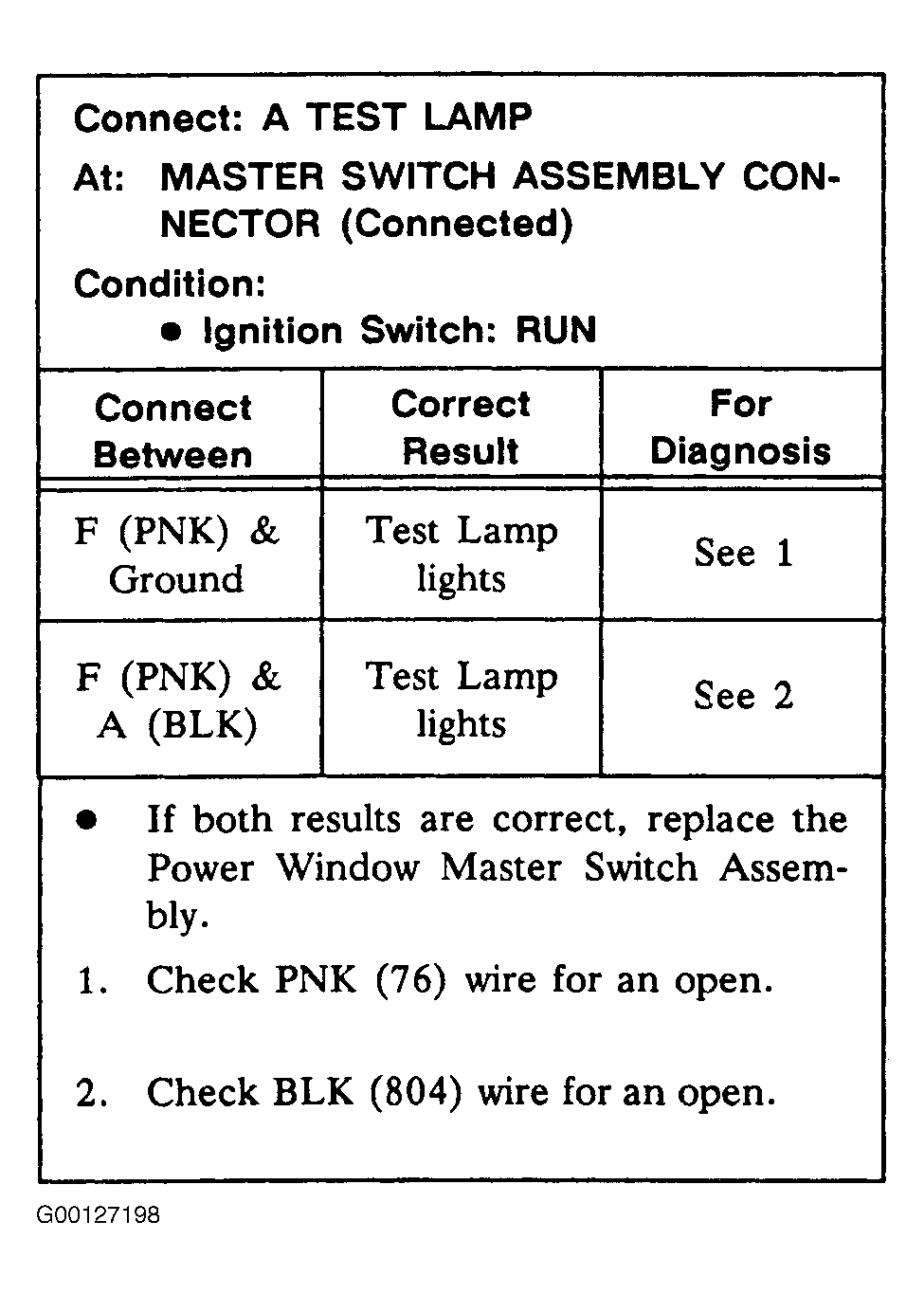

Fig 1: Test A: Window Power & Ground Test
G00127198Courtesy of GENERAL MOTORS CORP.
