Wiring Diagrams

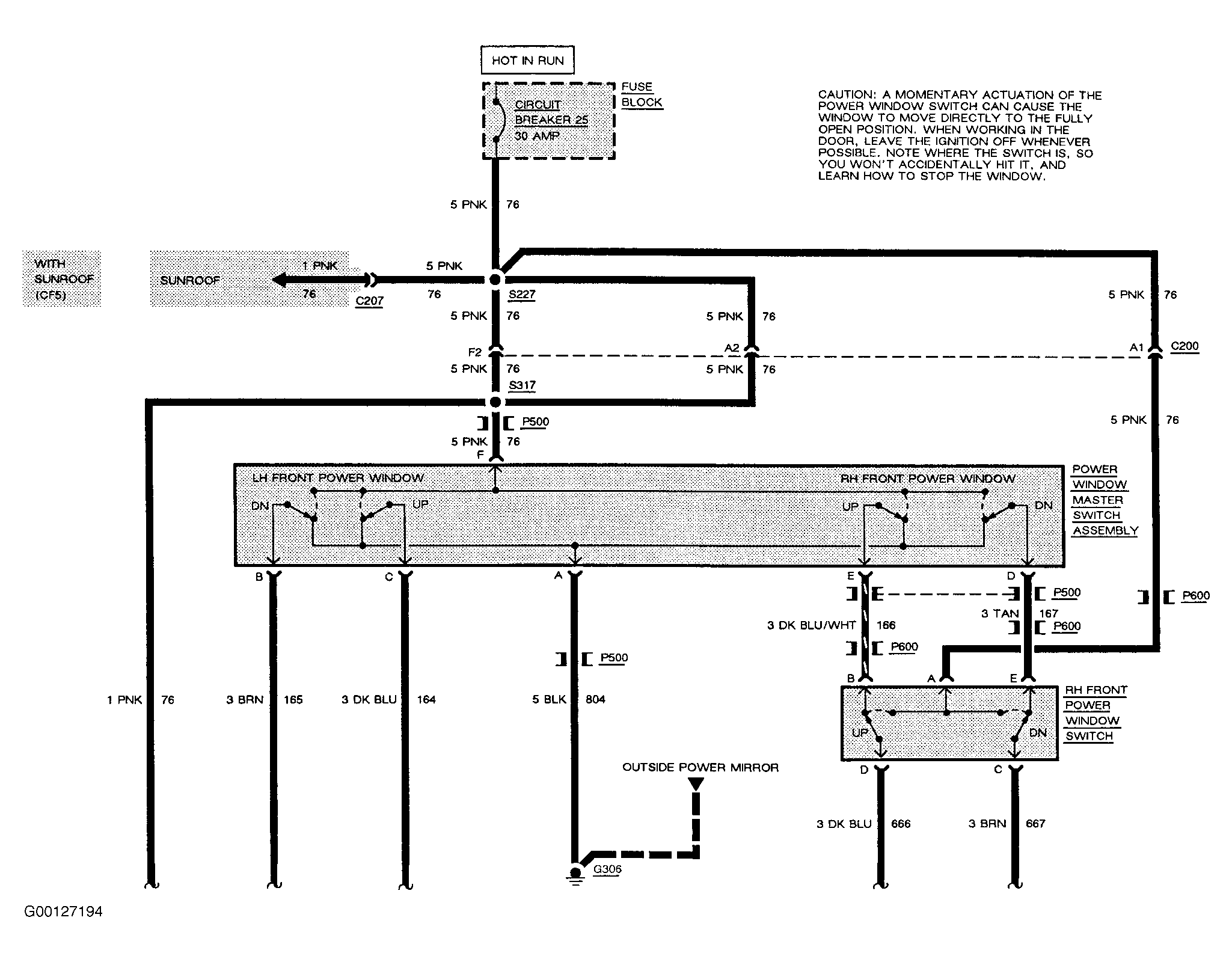

Fig 1: Power Window System Wiring Diagram (1 Of 2)
G00127194Courtesy of GENERAL MOTORS CORP.

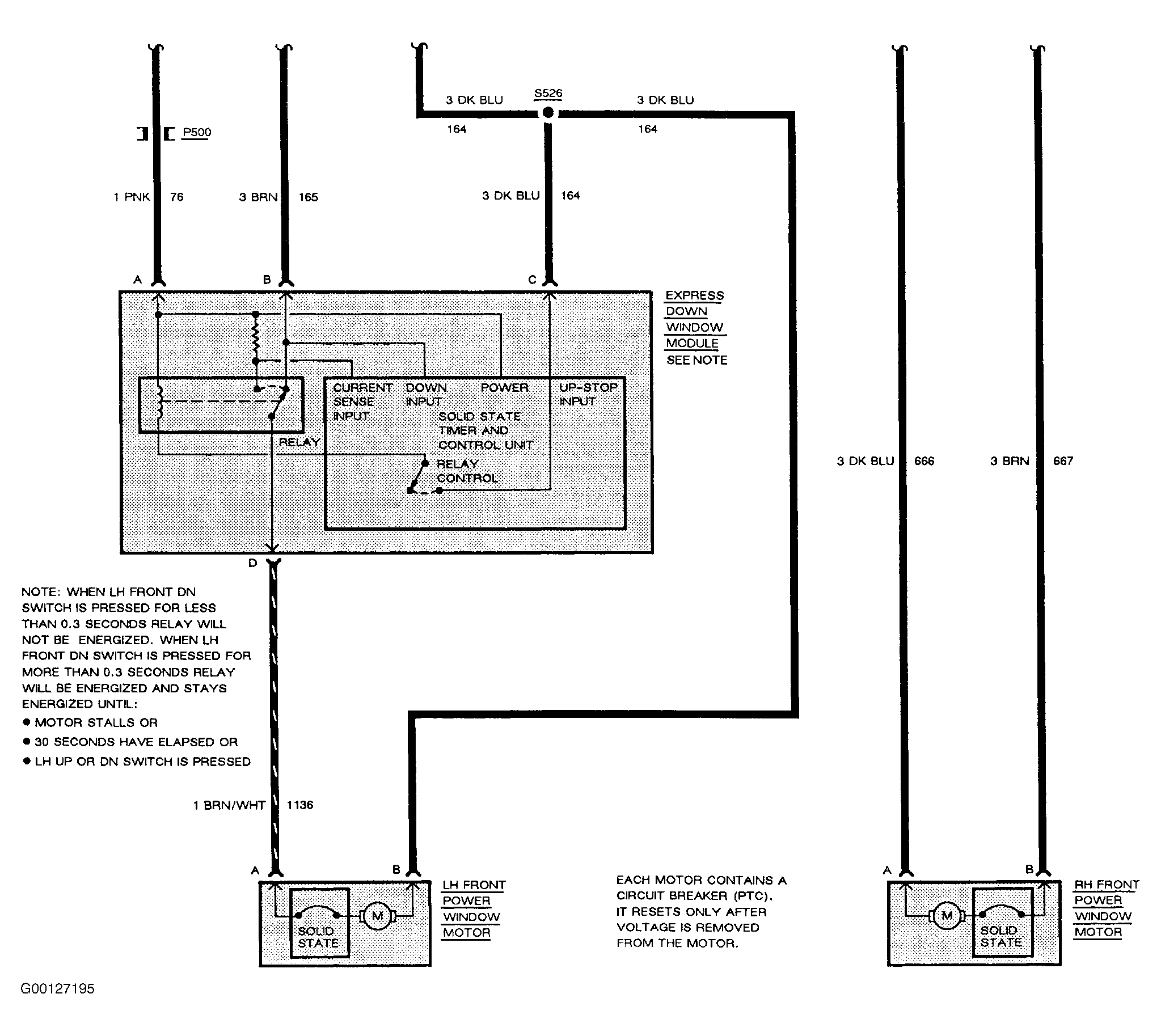

Fig 2: Power Window System Wiring Diagram (2 Of 2)
G00127195Courtesy of GENERAL MOTORS CORP.
