Anti-Lock Brake System Functional Check

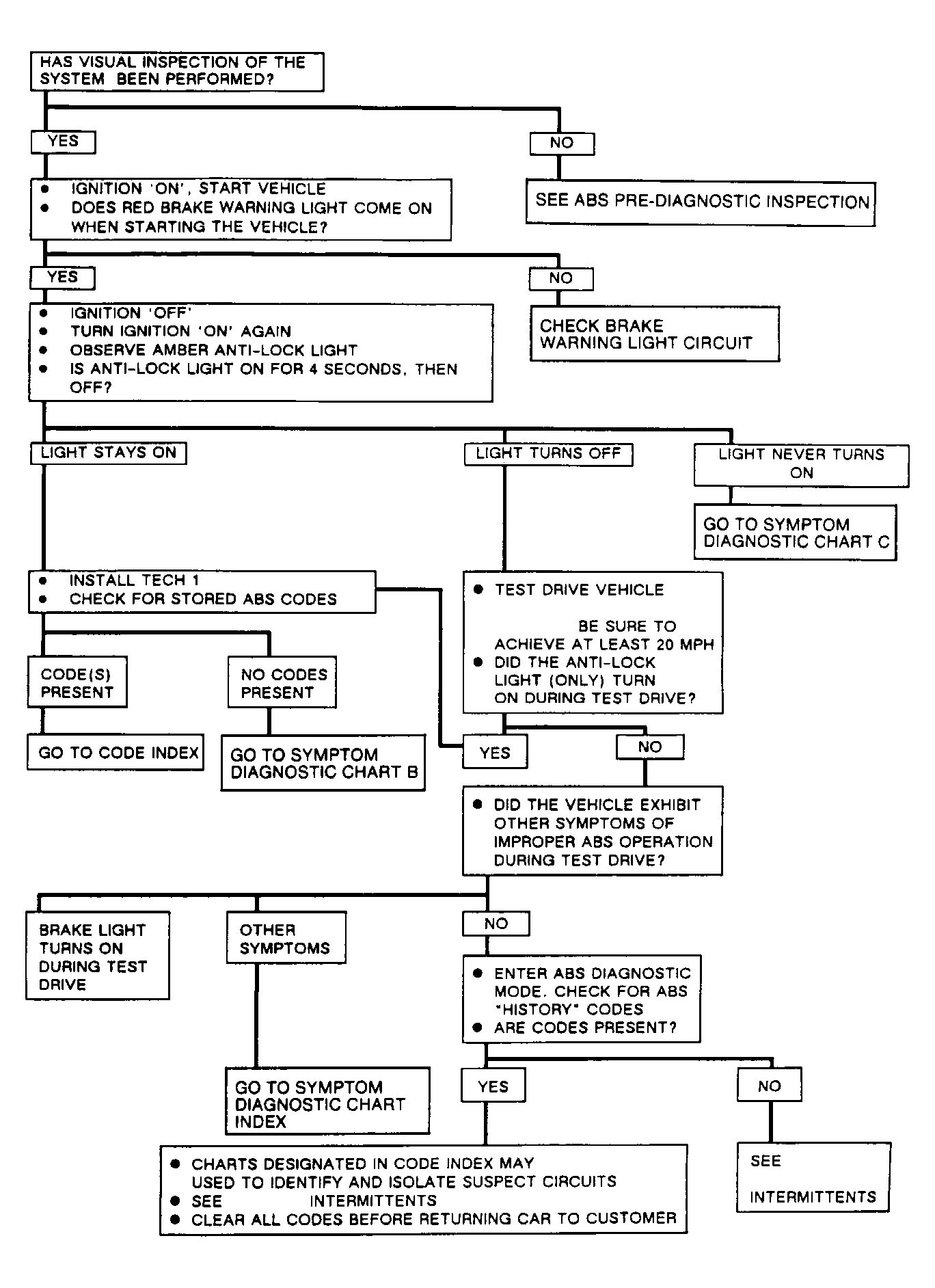

Fig 1: Anti-Lock Brake System Functional Check
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
