Code 39 alone indicates a problem at:

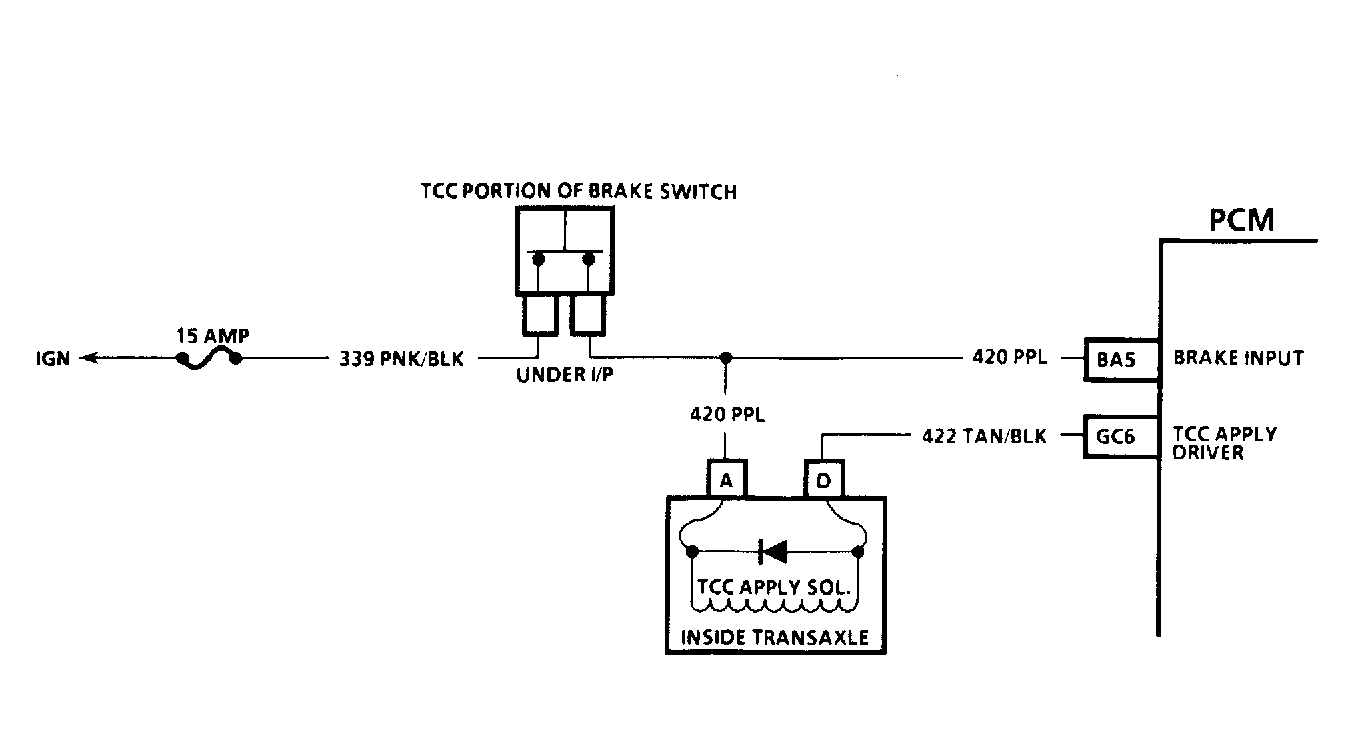

Fig 1: Code 39, W/O Tech 1, W/4T60 Transaxle, TCC Ckt, Schematic
G92G04336

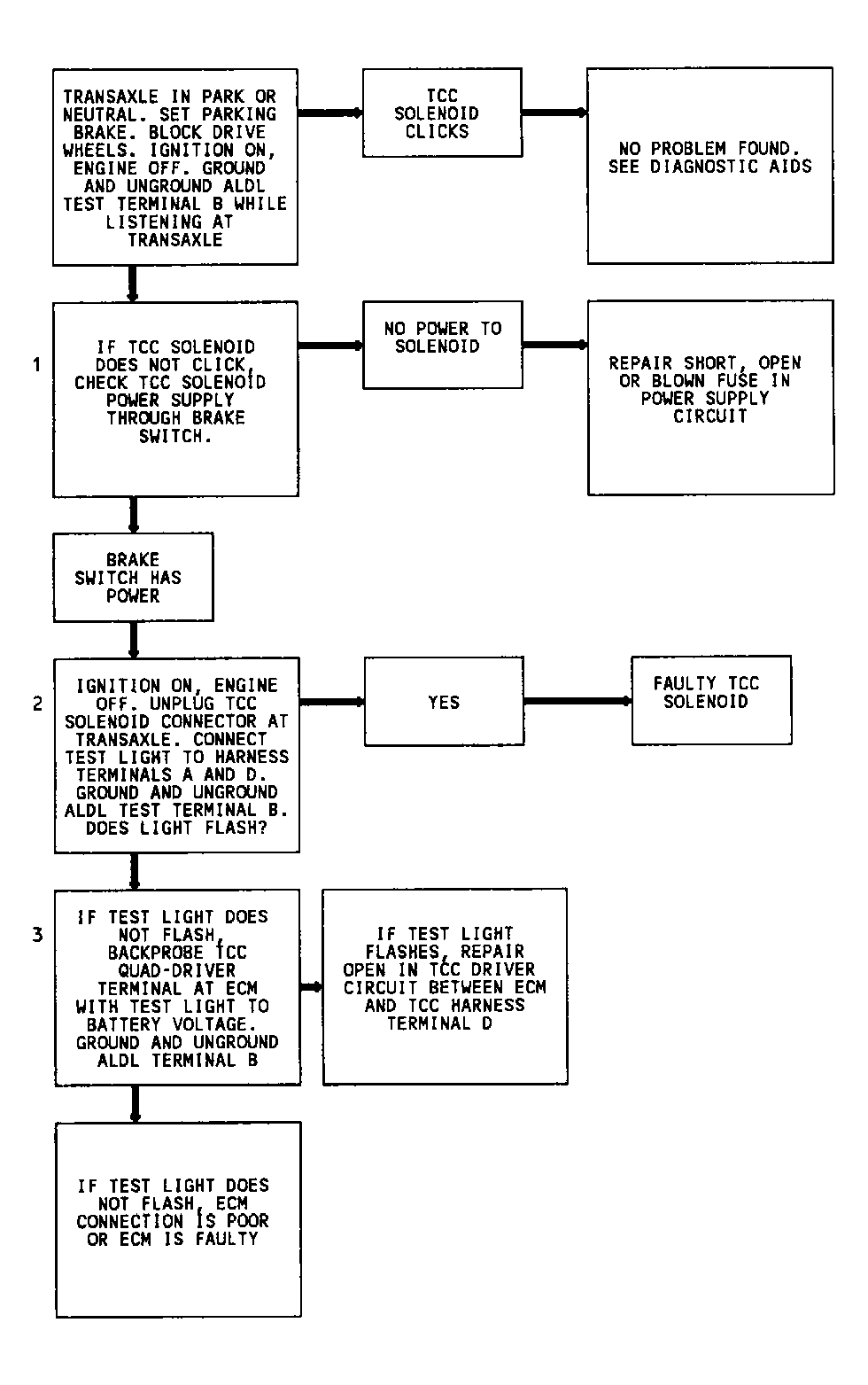

Fig 2: Code 39, TCC Ckt, Flow Chart, W/4T60 Transaxle
G91F07339

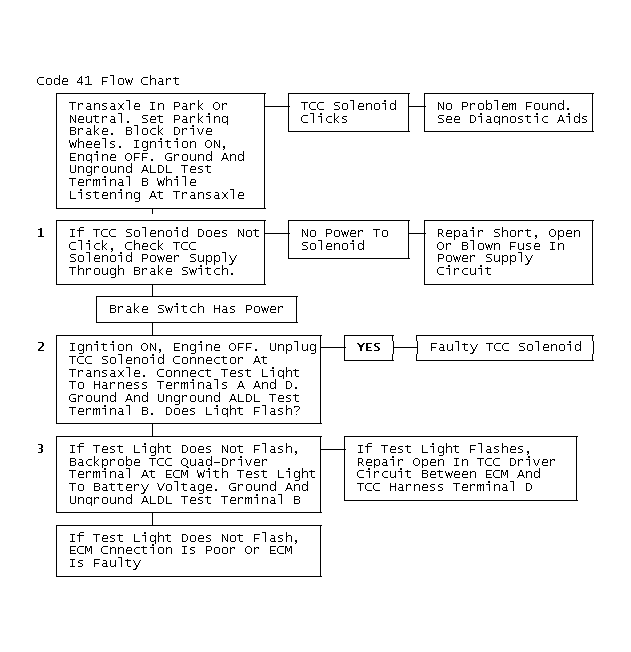

Fig 3: Code 41 Flow Chart
GB0021665
