Shift Speed Specifications

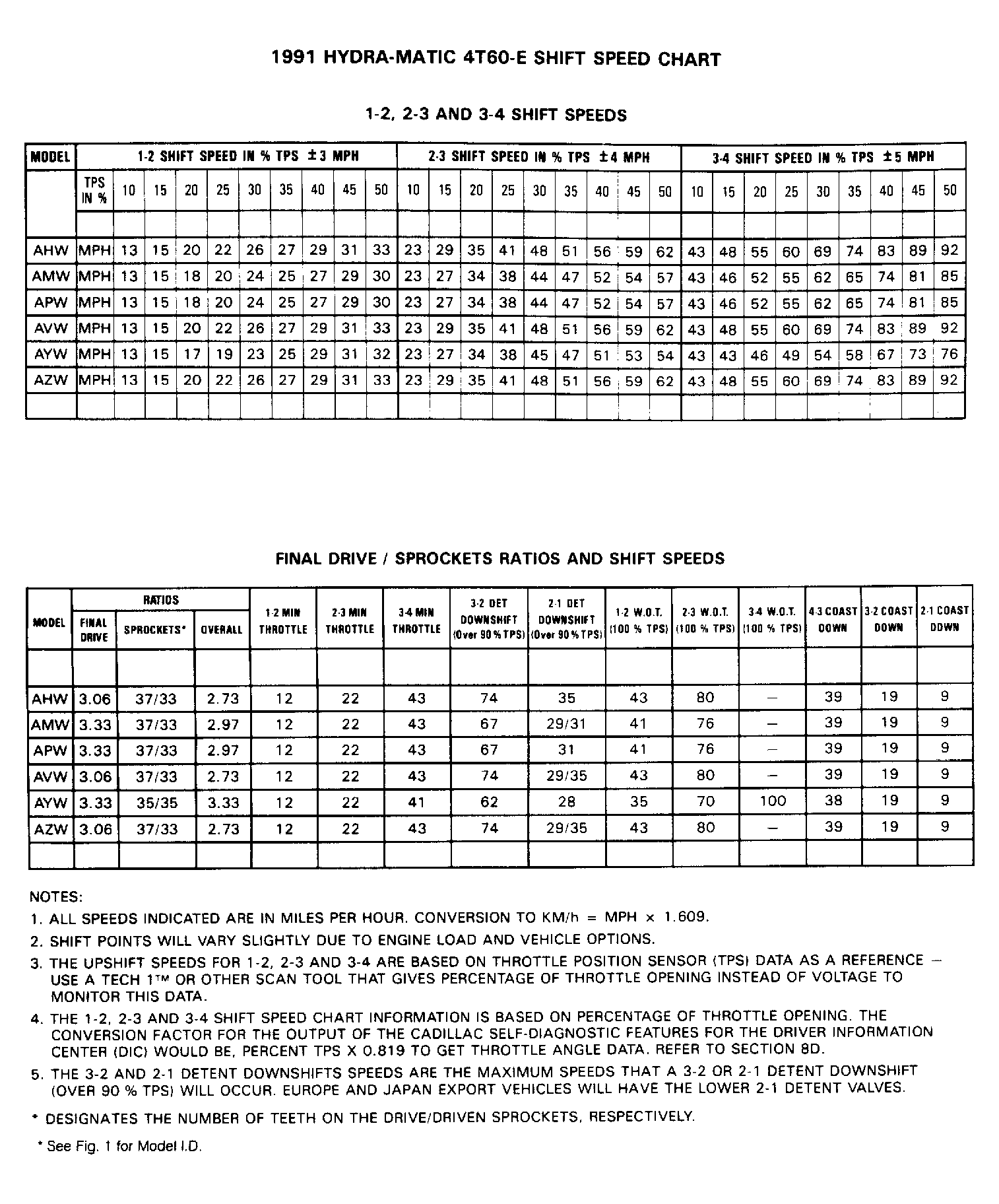

Fig 1: Hydra-Matic 4T60-E Shift Speed Chart (1991 - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

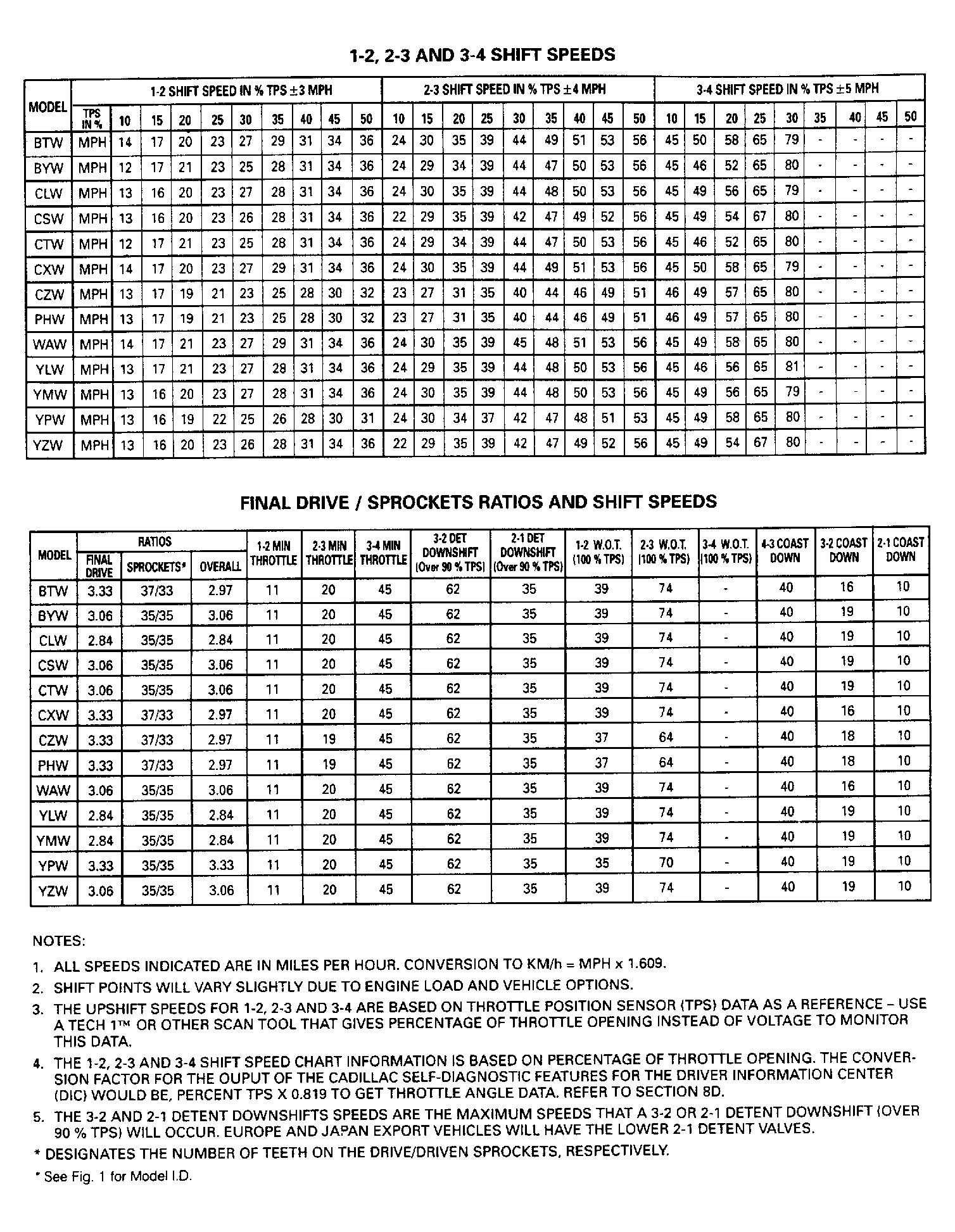

Fig 2: Hydra-Matic 4T60-E Shift Speed Chart (1991 - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

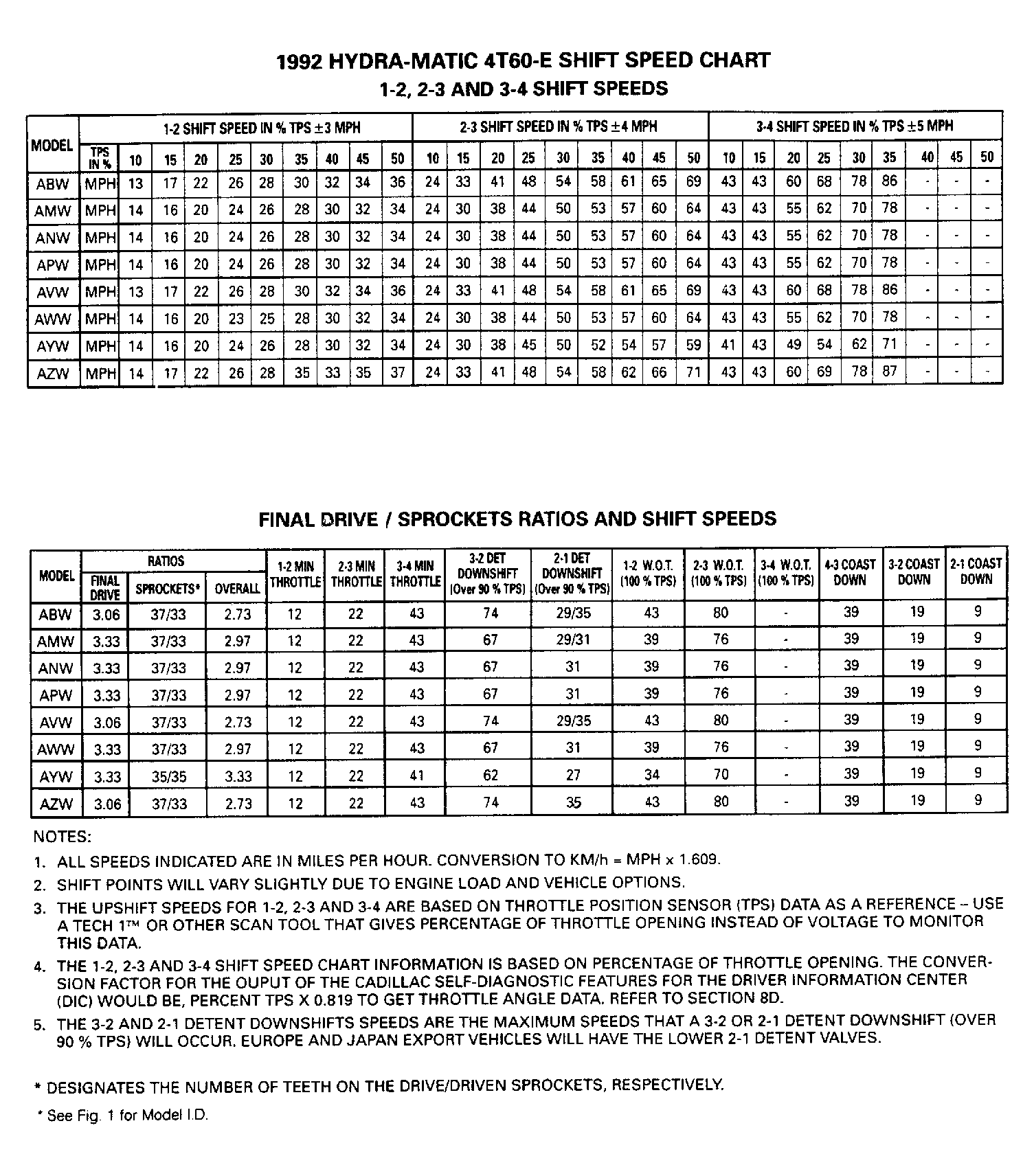

Fig 3: Hydra-Matic 4T60-E Shift Speed Chart (1992 - 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

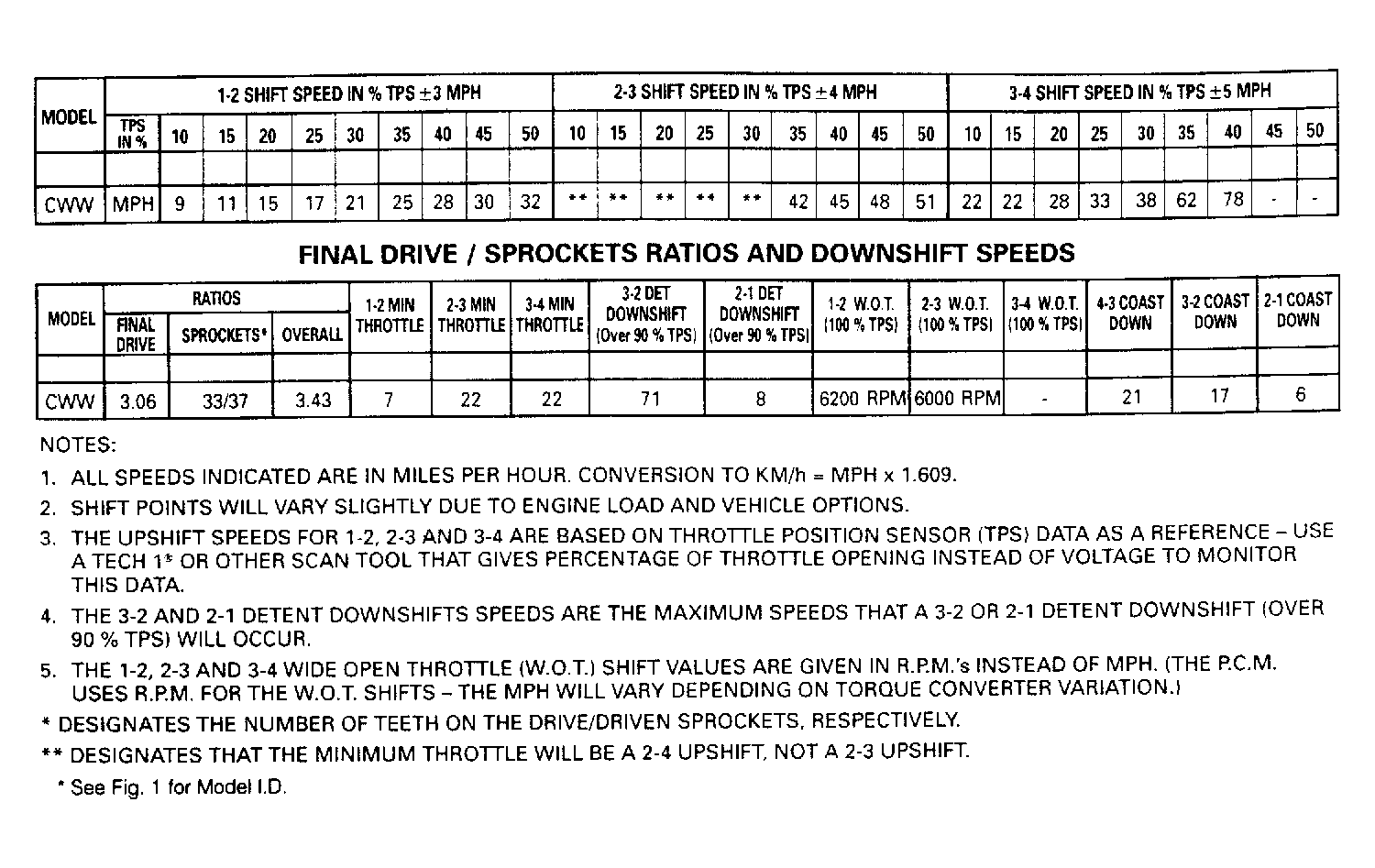

Fig 4: Hydra-Matic 4T60-E Shift Speed Chart (1992 - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Hydra-Matic 4T60-E Shift Speed Chart (1992 - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.
