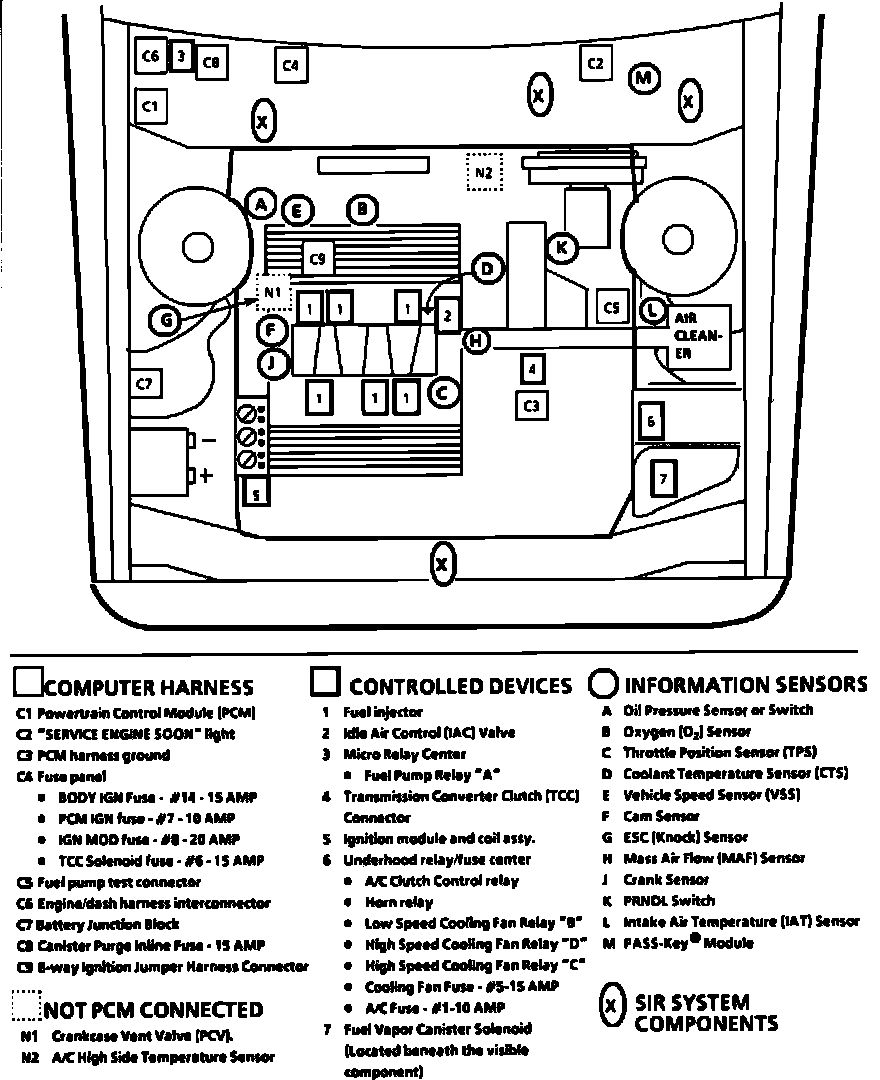

Fuse Block

Engine Compartment Component Location.:

Behind RH Side Of I/P, In Glove Box

Applicable to: Toronado/Trofeo
