Powertrain Control Module (PCM)

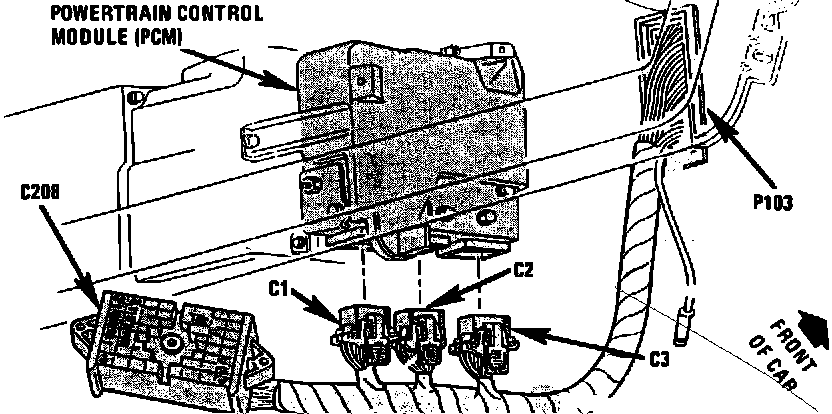

Behind RH Side Of I/P.:




Engine Compartment Component Location.:





Behind RH Side Of I/P, Near HVAC Programmer

Applicable to: Toronado/Trofeo
