Connector Description

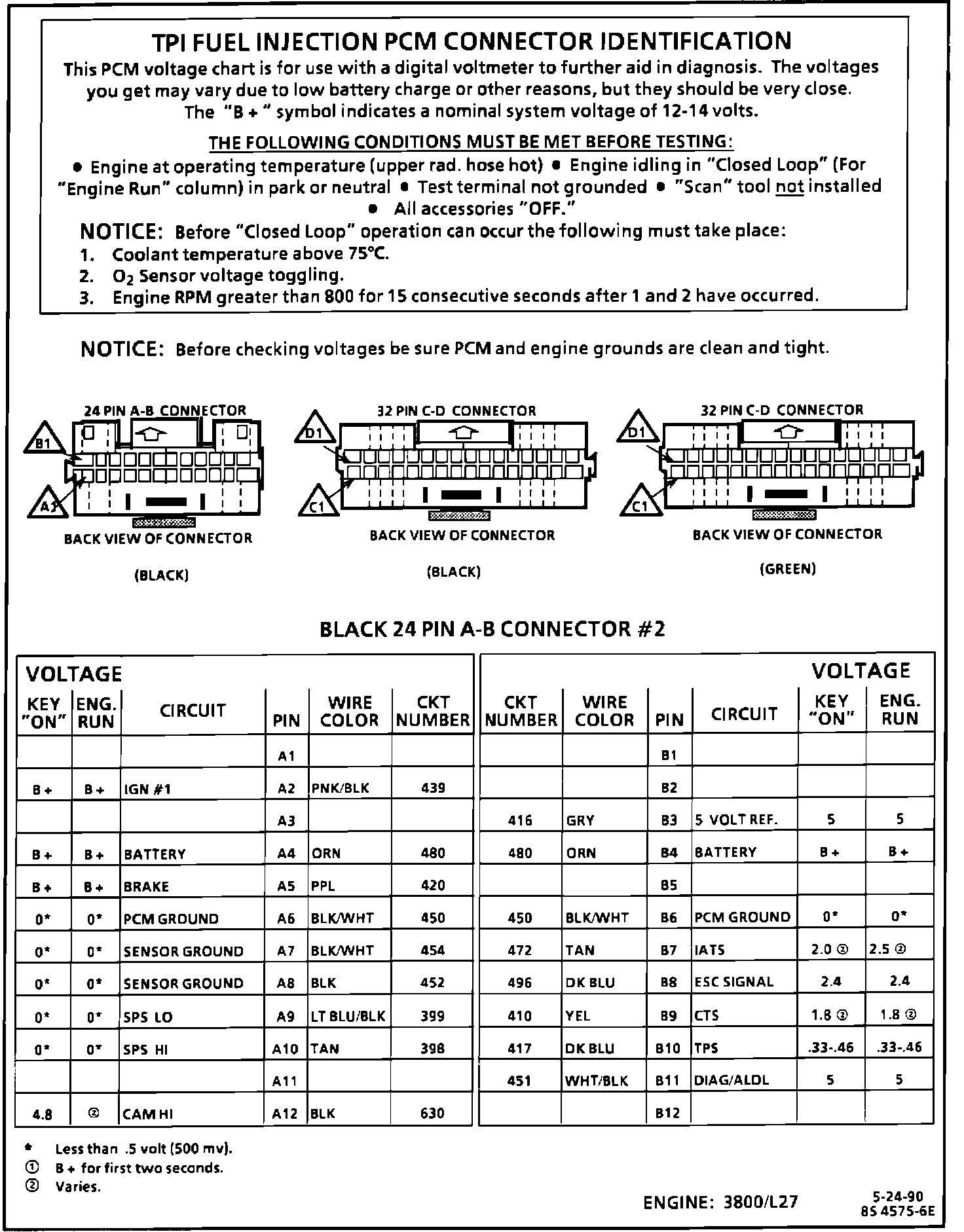

PCM Pin/Voltage Reference Chart (1 Of 2):
Part 1 of 2

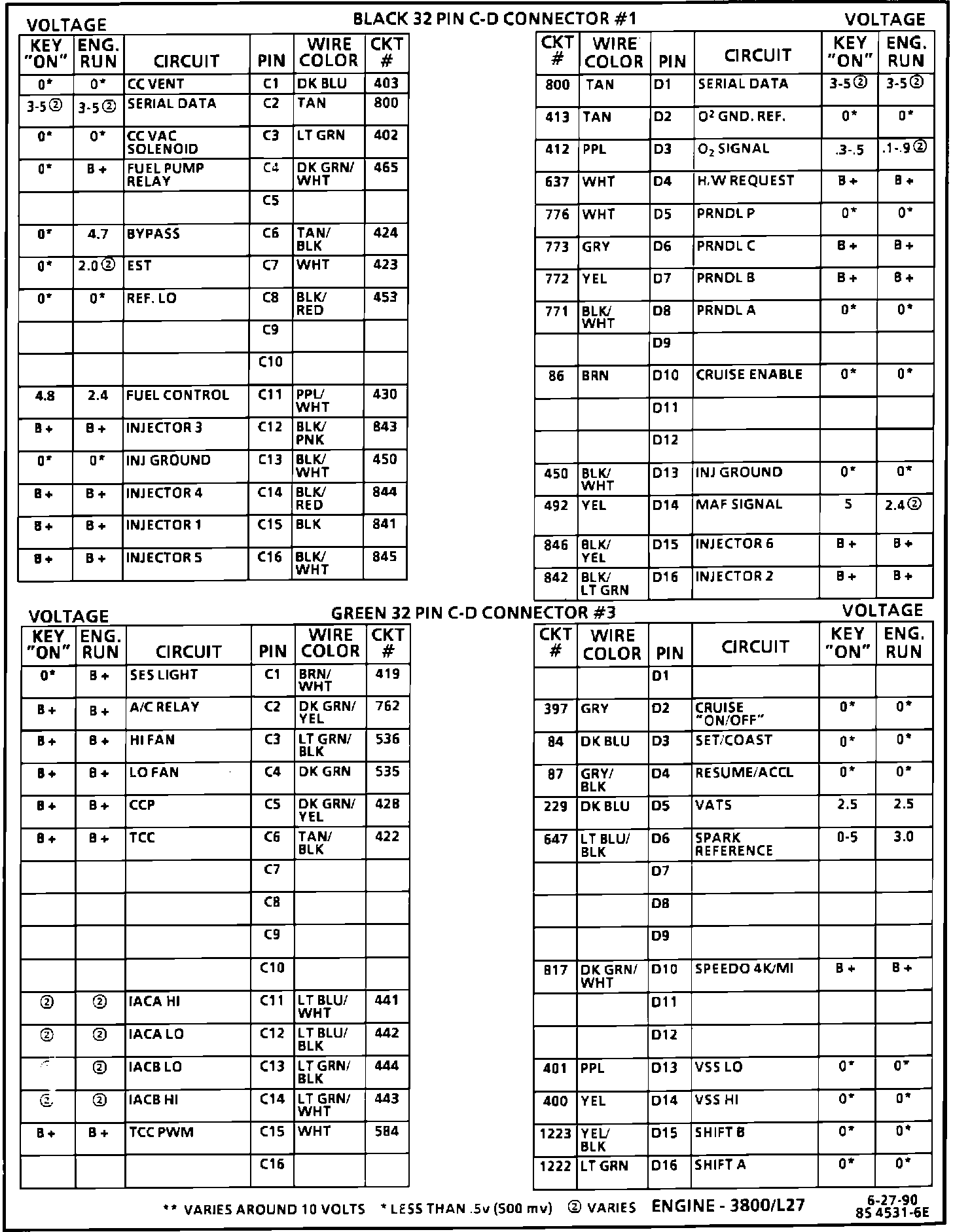

PCM Pin/Voltage Reference Chart (2 Of 2):
Part 2 of 2
