BCM - Code B127 Revised Wiring Diagram

NUMBER: 92-U-55

CORP.REF.NO: 218111

DATE: September 1992

SECTION: 8D2

SUBJECT:
BCM CODE B127

MODELS/YEARS:
1990-92 TORONADO

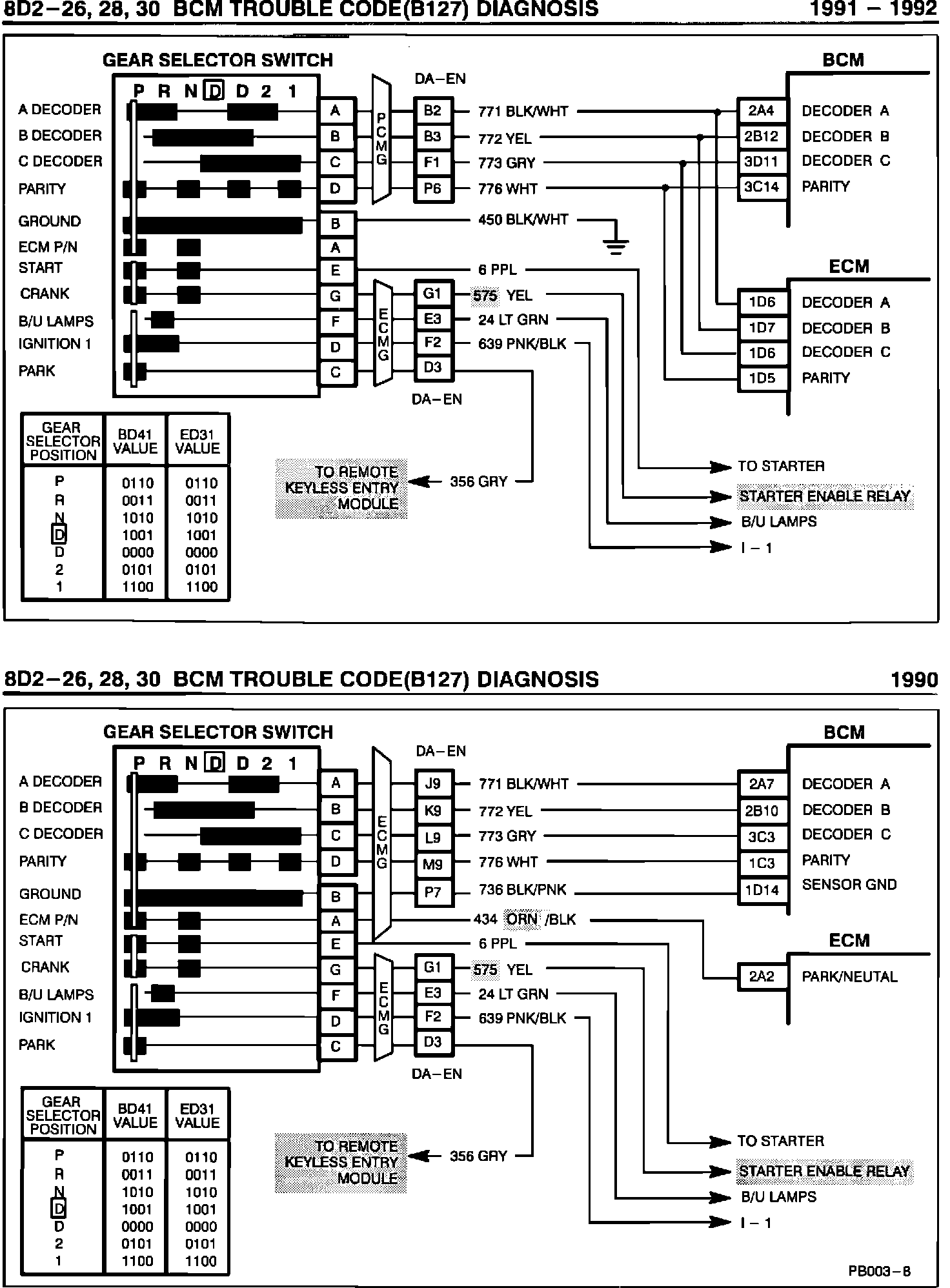

The wiring diagrams that appear in this bulletin replace wiring diagrams that appeared in the following Toronado Service Manuals for BCM trouble code diagnosis, code B127:

^ 1990 Pages 8D2-28, 30, 32
^ 1991-92 Pages 8D2-26,28,30

Please mark a reference to this bulletin in your copies of these service manuals.
