Connector Identification

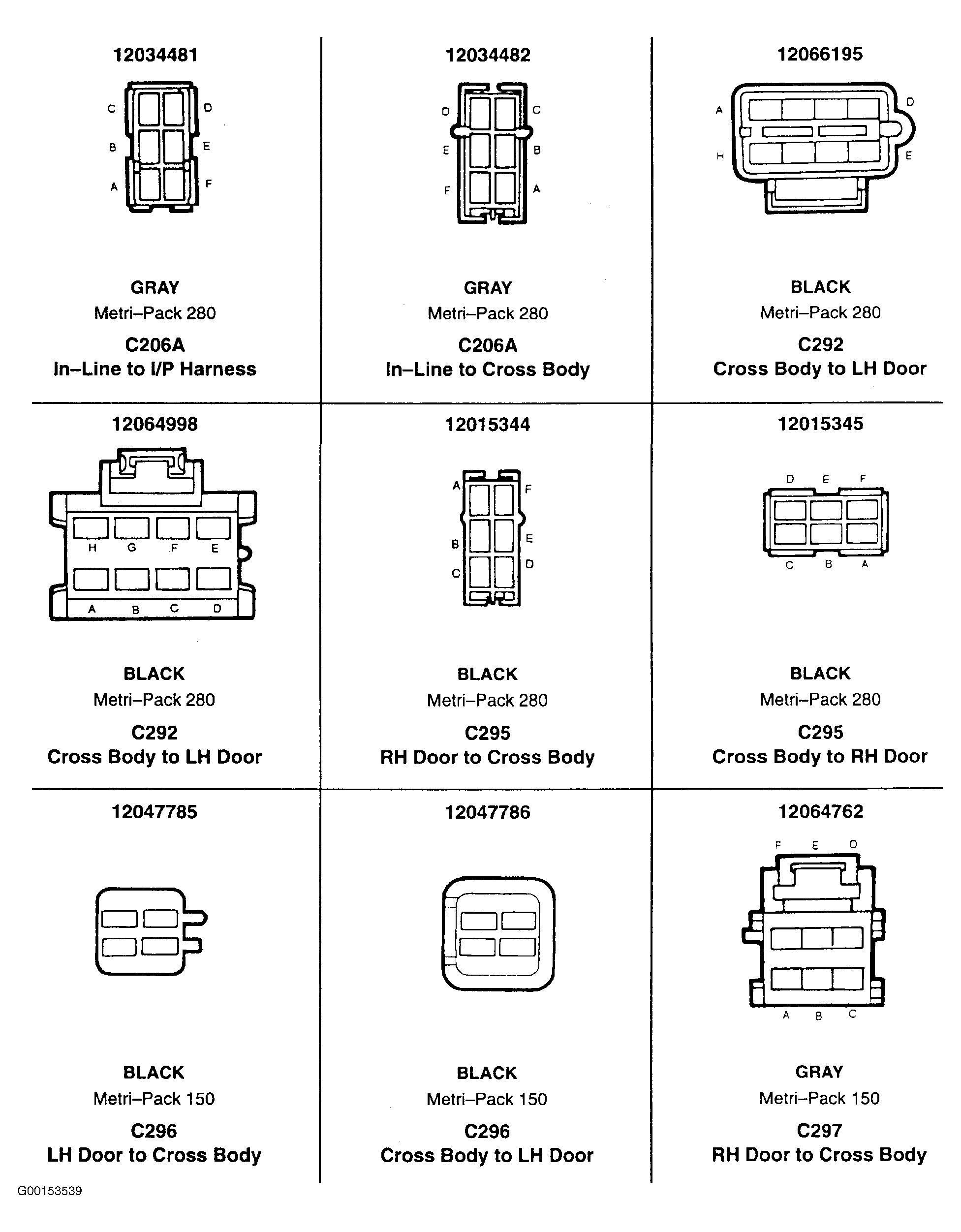

Fig 1: Identifying Power Mirror Connectors (C206A, C292 & C295-C297)
G00153539Courtesy of GENERAL MOTORS CORP.

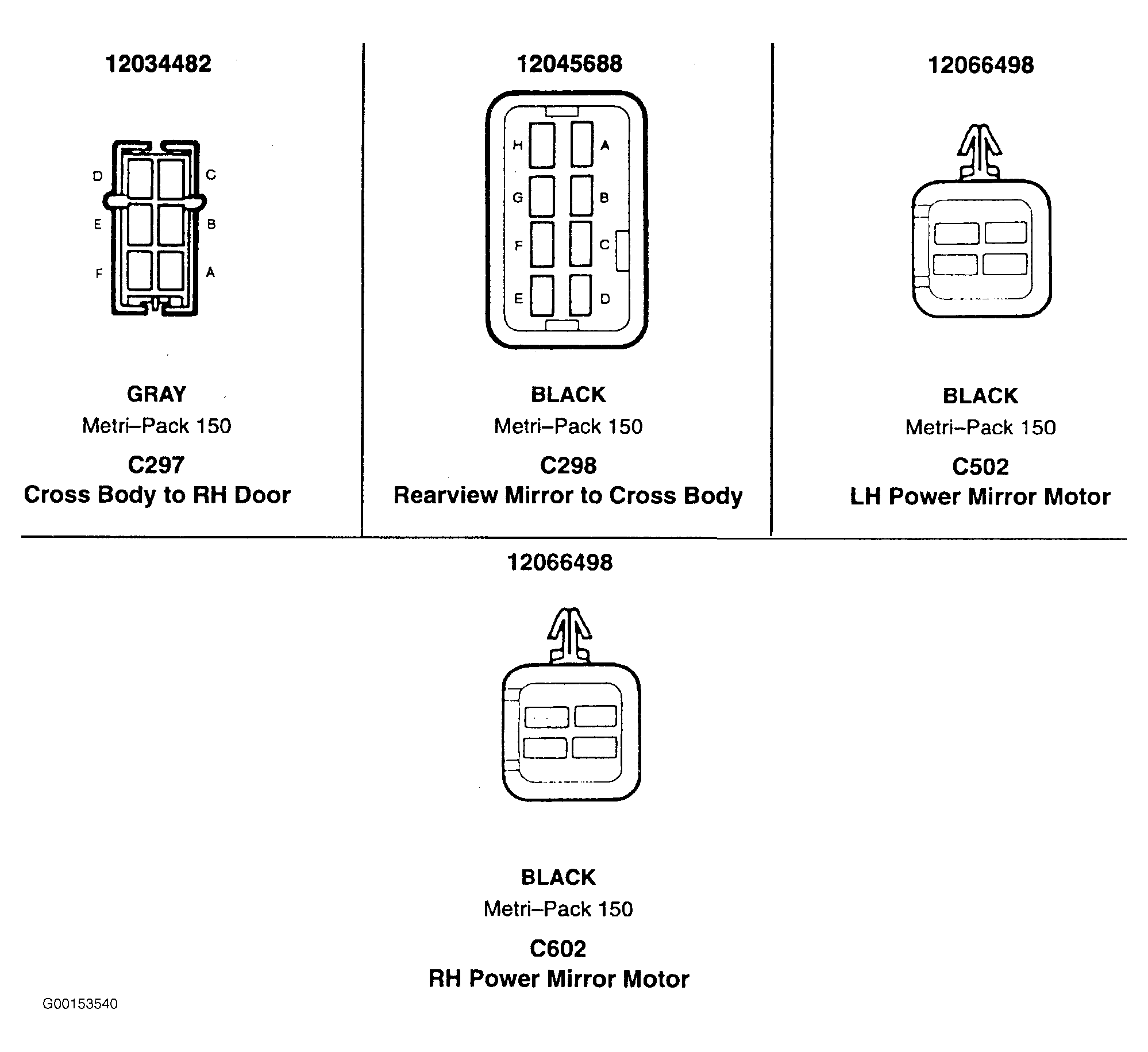

Fig 2: Identifying Power Mirror Connectors (C297, C298, C502 & C602)
G00153540Courtesy of GENERAL MOTORS CORP.
