Diagnostic Aids

Check for poor connections at PCM/TCM and transmission pass-thru connector.

Fig 1: Code 73 Schematic Pressure Control Solenoid (Current Error)
G94B38381

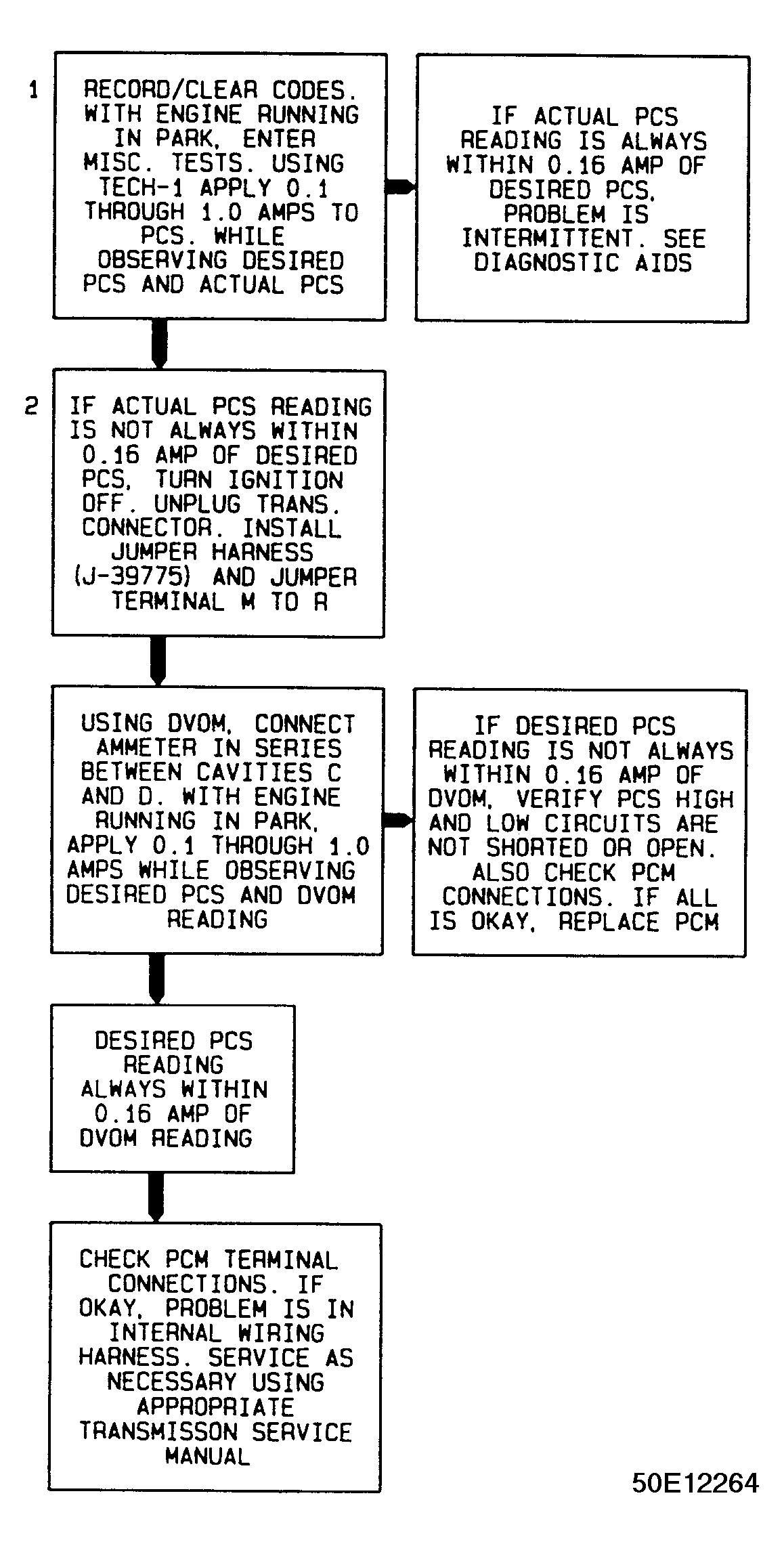

Fig 2: Code 73 Flow Chart Pressure Control Solenoid (Current Error)
G50E12264
