Diagnostic Aids

Check for poor connections in PCM/TCM related circuits.

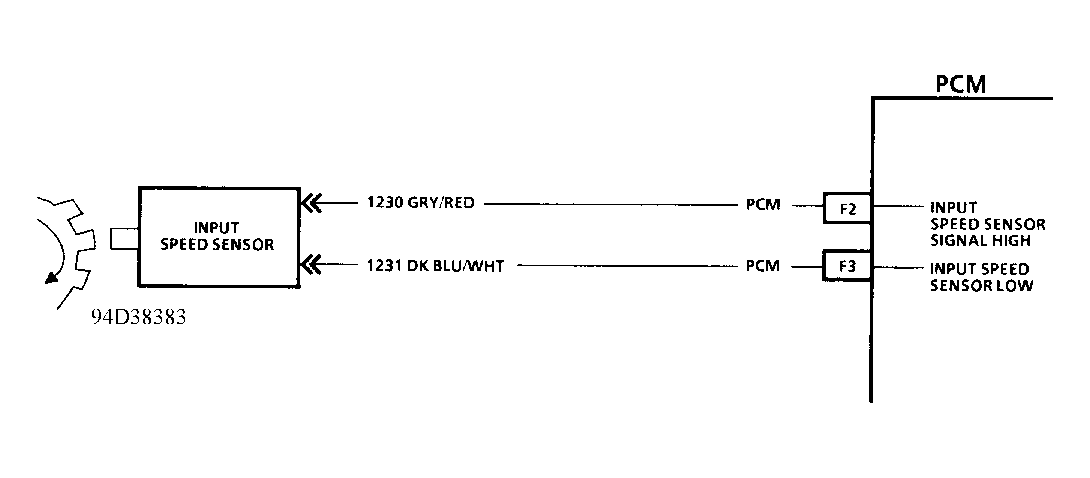

Fig 1: Code 74 Schematic Transmission Input Speed Error
G94D38383

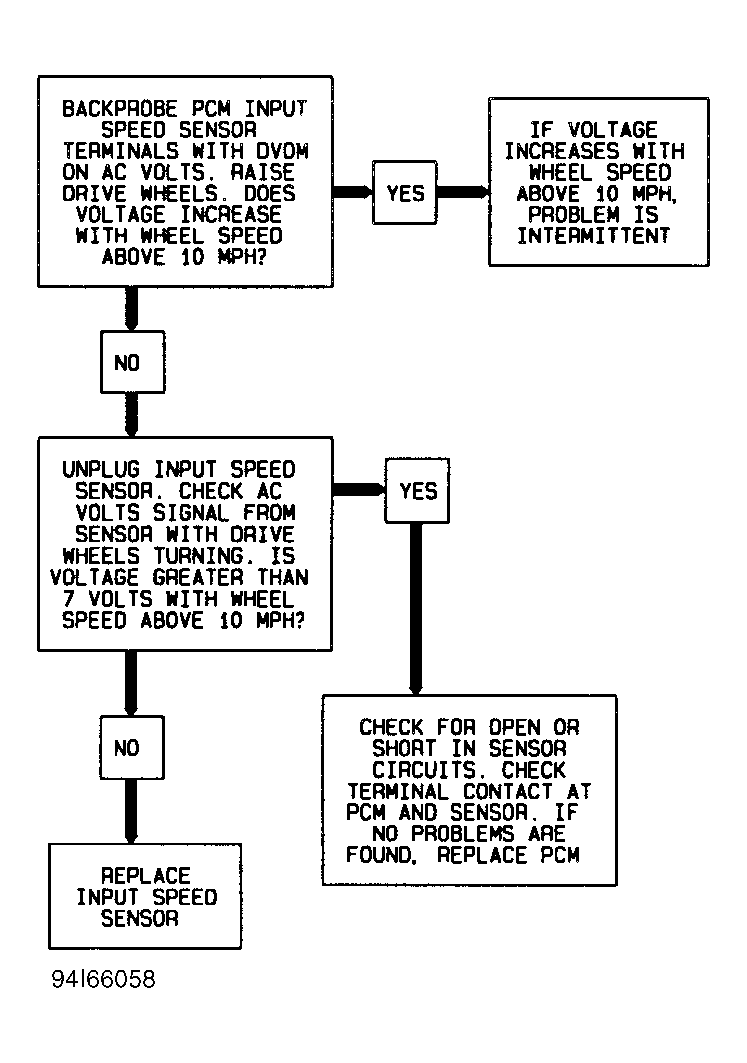

Fig 2: Code 74 Schematic Flow Chart Transmission Input Speed Error
G94I66058
