Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Circuit Breakers | In passenger compartment fuse block. | ||
| Convenience Center | Behind left side of dash. | ||
| Fuse Block | |||

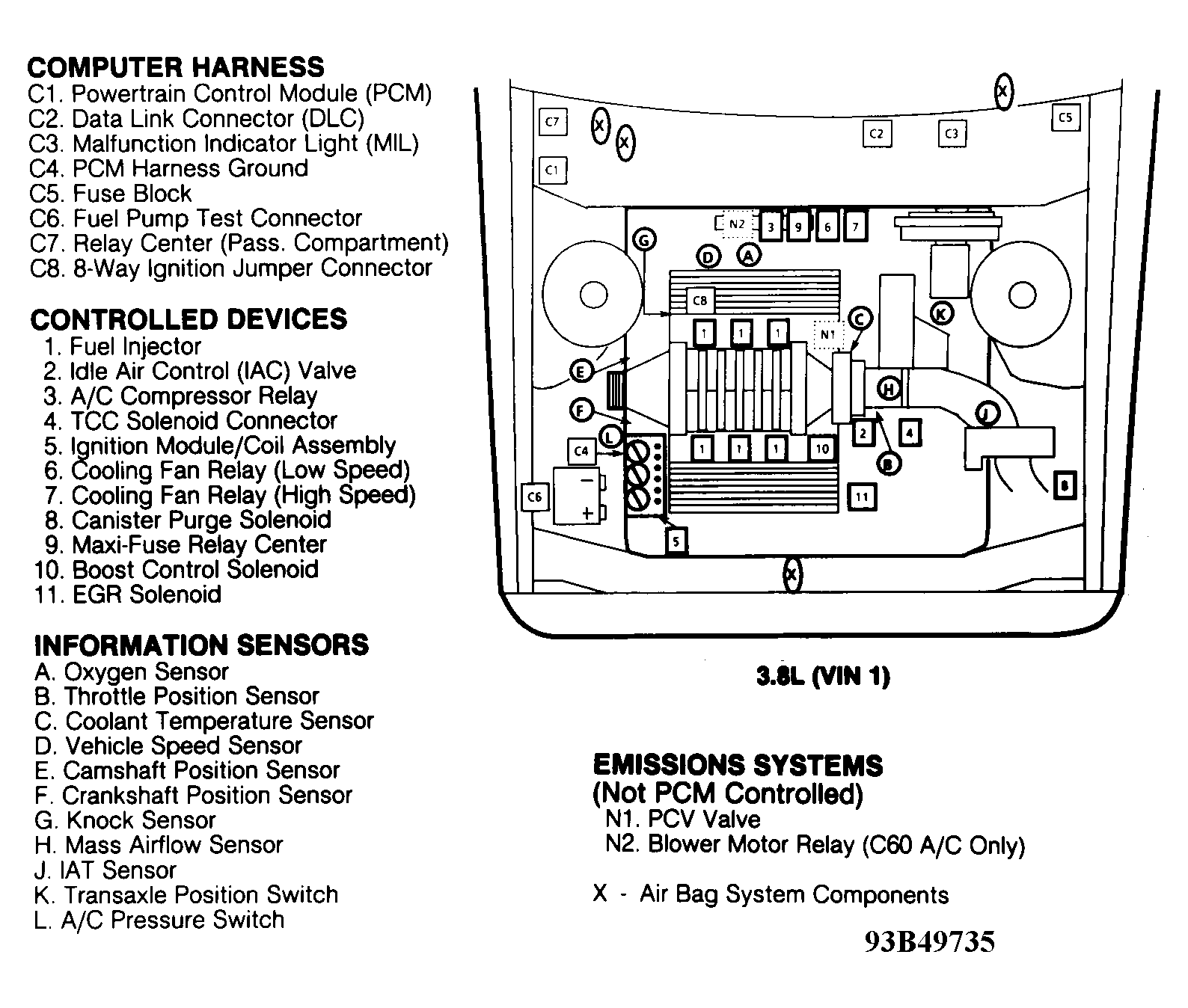

| 3.8L - VIN L | Behind left side of dash. See Figure . | ||
| 3.8L - VIN 1 | Behind left side of dash. See Figure . | ||
| Maxi-Fuse Center | |||
| 3.8L - VIN L | On engine compartment relay center, on right side of firewall. See Figure . | ||
| 3.8L - VIN 1 | On engine compartment relay center, on right side of firewall. See Figure . | ||
| Relay Centers | |||
| Engine Compartment | On right side of firewall. | ||
| Passenger Compartment | |||
| 3.8L - VIN L | Behind right side of dash. See Figure . | ||
| 3.8L - VIN 1 | Behind right side of dash. See Figure . | ||
