A/C Compressor Control Relay

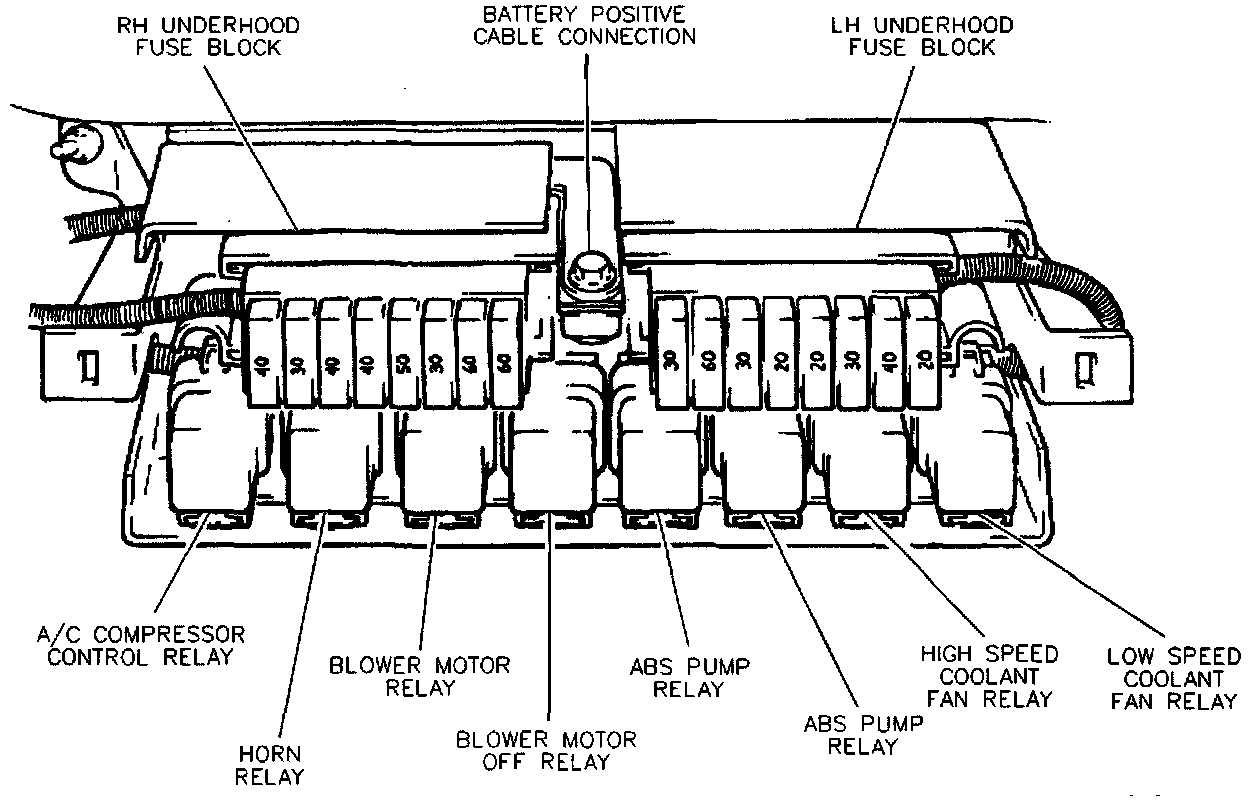

Rear Of Engine Compartment, LH And RH Underhood Fuse Blocks:

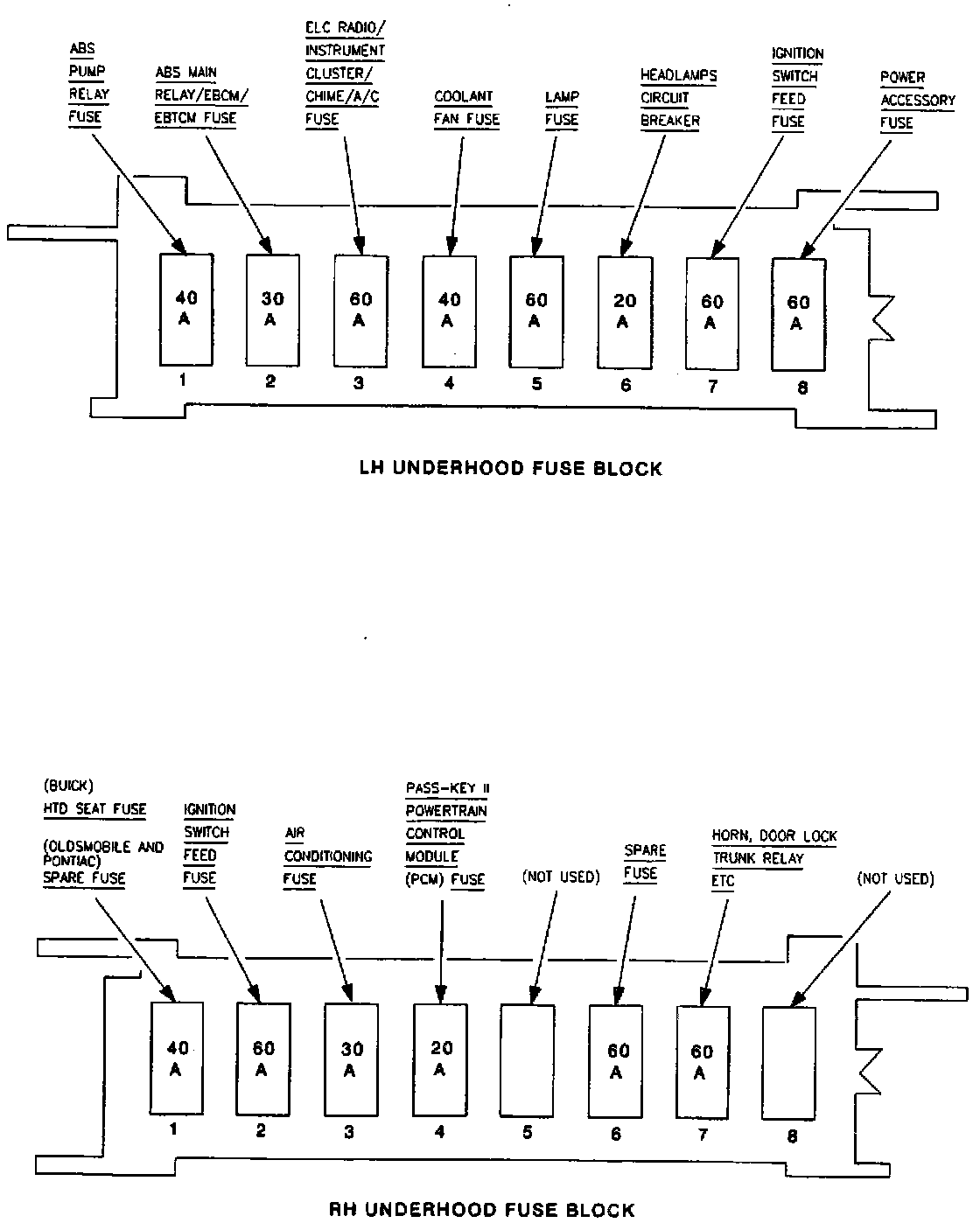

Underhood Fuse Block:
