Control Assembly Replace

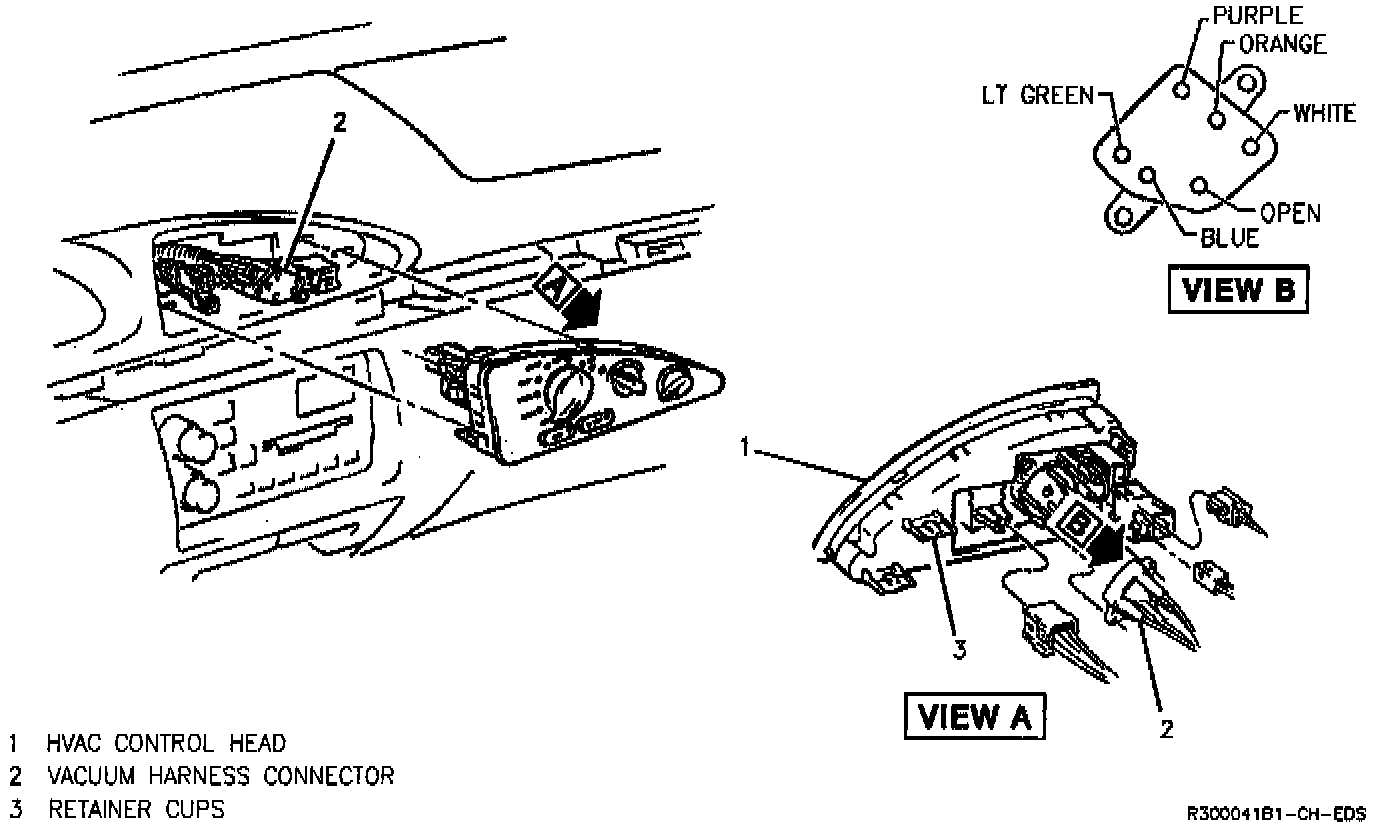

HVAC Control Assembly:

REMOVE OR DISCONNECT

1. Instrument Panel (I/P) closeout panel.

2. Heating Ventilation and Air Conditioning (HVAC) control from closeout.

3. Electrical and vacuum connectors.

INSTALL OR CONNECT

1. Electrical and vacuum connectors to HVAC control.

2. HVAC control to the closeout.

^ Press control in to engage retainer clips.

3. I/P closeout panel.
