Blower Control Module (RPO C68, CJ2)

BLOWER CONTROL MODULE (RPO C68, CJ2)
(with Electronic Automatic (C68) and Dual Zone (CJ2) Air Conditioning only)

RH Rear Of Engine Compartment, Blower Control Module Area:

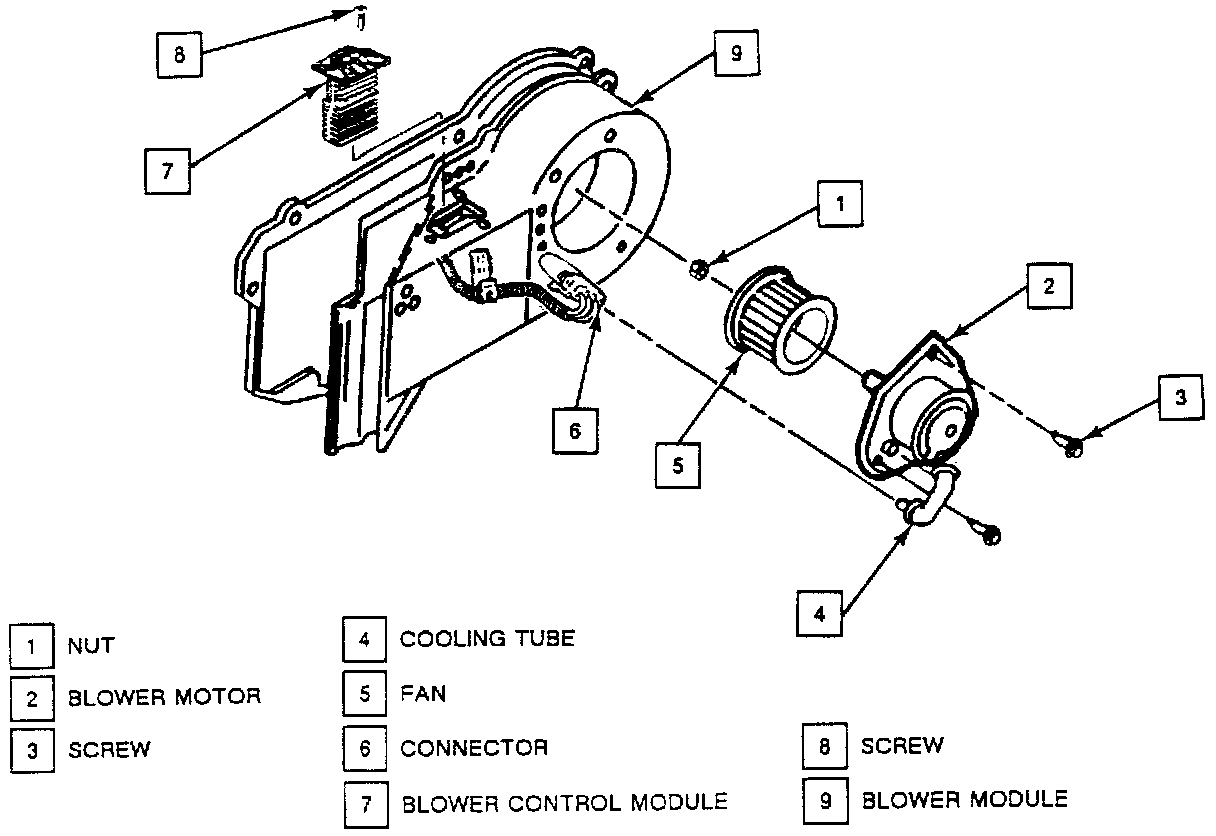

Blower Motor And Fan:

The Blower Control Module is located in the center rear of engine compartment, below RH Underhood Fuse Block.
