Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

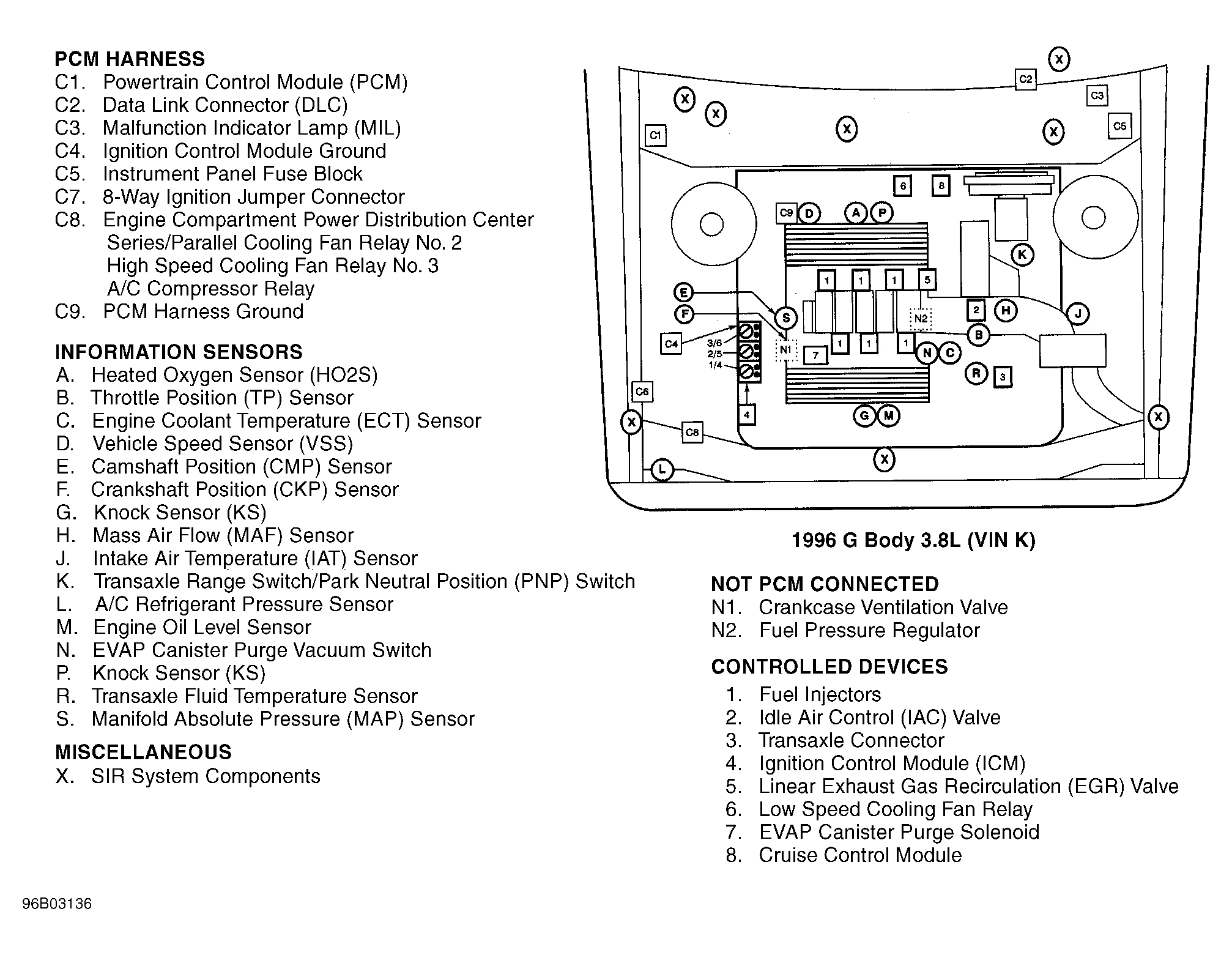

| Engine Compartment Power Distribution Center (3.8L VIN K) | At right front corner of engine compartment. See Figure . |

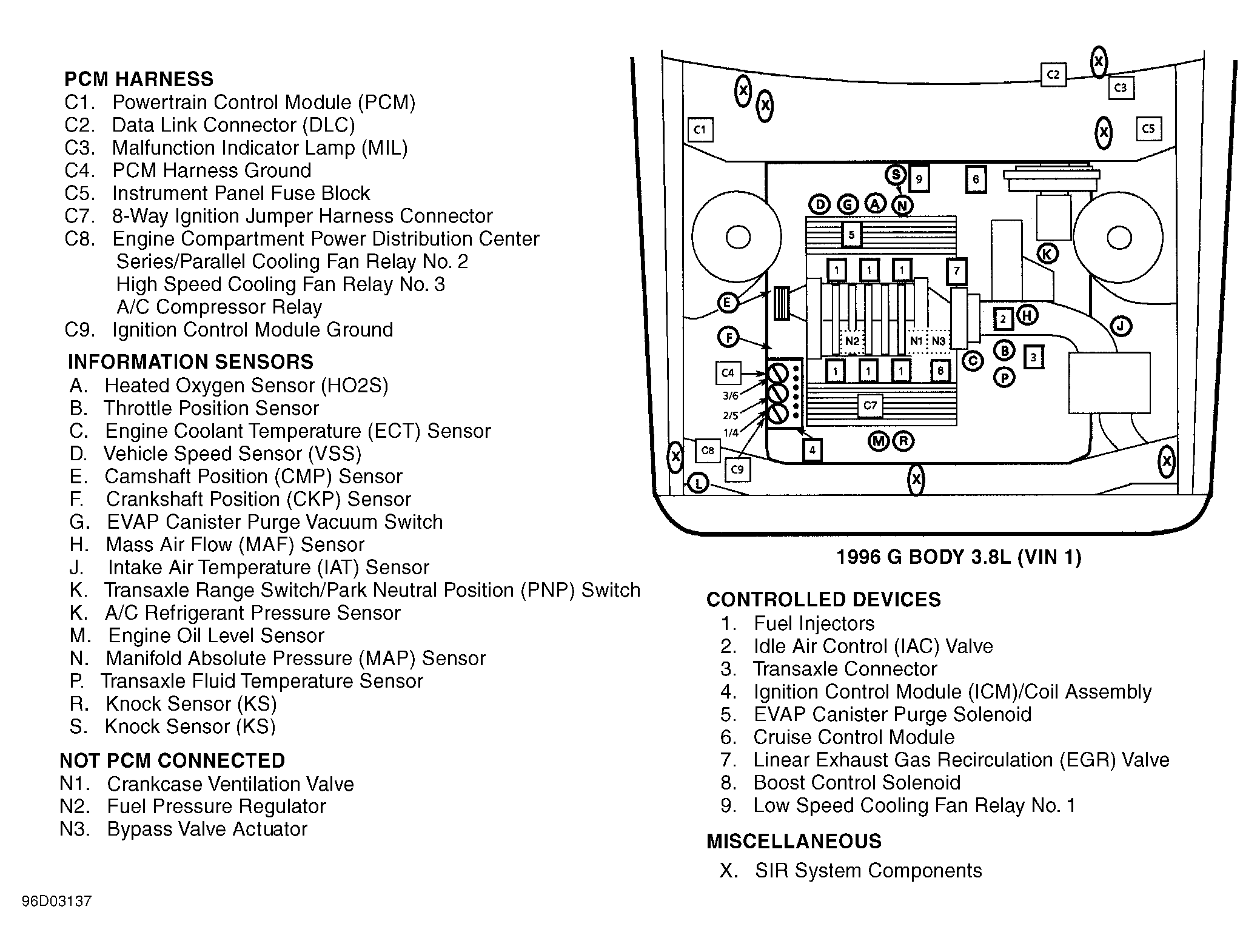

| Engine Compartment Power Distribution Center (3.8L VIN 1) | At right front corner of engine compartment. See Figure . |

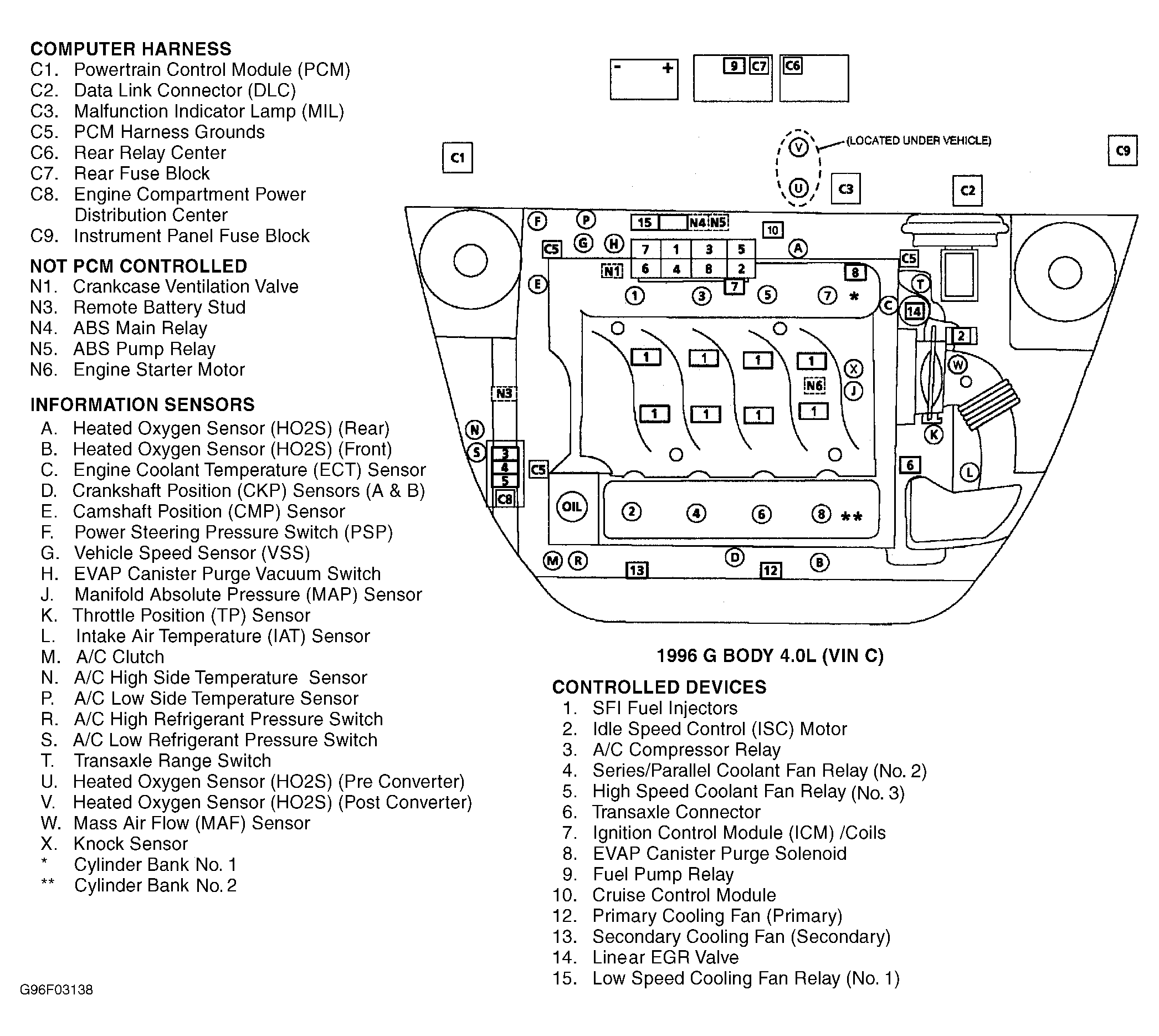

| Engine Compartment Power Distribution Center (4.0L VIN C) | At right front corner of engine compartment. See Figure . |
| Fuse Block (Rear) | Under rear seat, near battery. See Figure . |
| Instrument Panel Fuse Block (3.8L VIN K) | At left side of passenger compartment, attached to door hinge pillar. See Figure . |
| Instrument Panel Fuse Block (3.8L VIN 1) | At left side of passenger compartment, attached to door hinge pillar. See Figure . |
| Instrument Panel Fuse Block (4.0L VIN C) | At left side of passenger compartment, attached to door hinge pillar. See Figure . |
| Relay Center (Rear) | Under rear seat, near battery. See Figure . |
